Overview

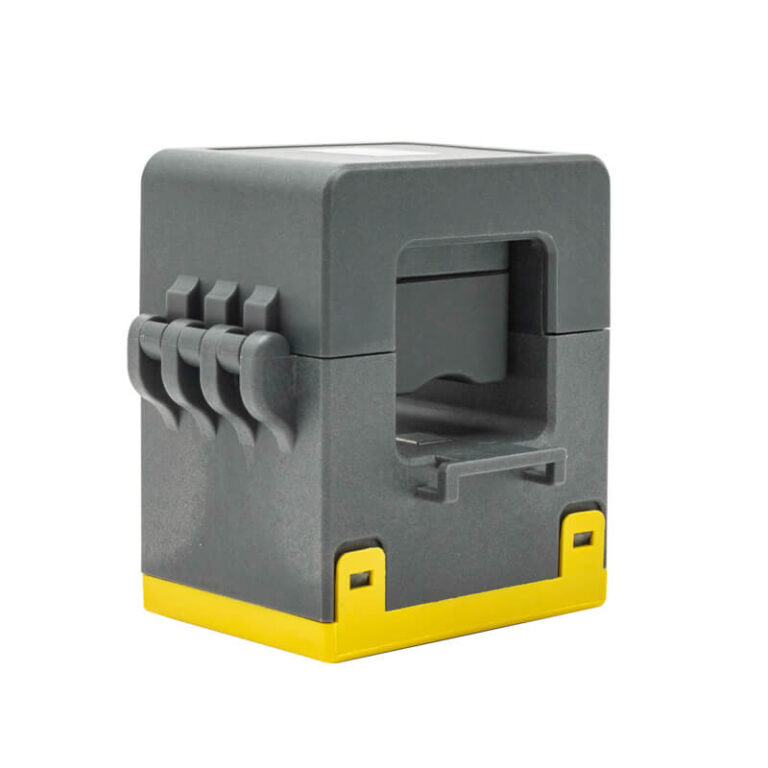

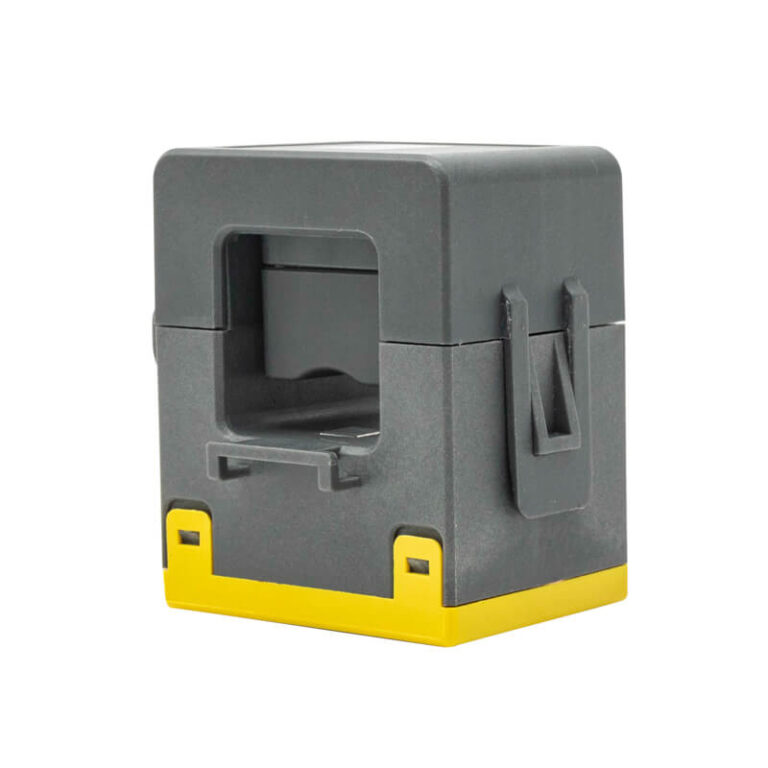

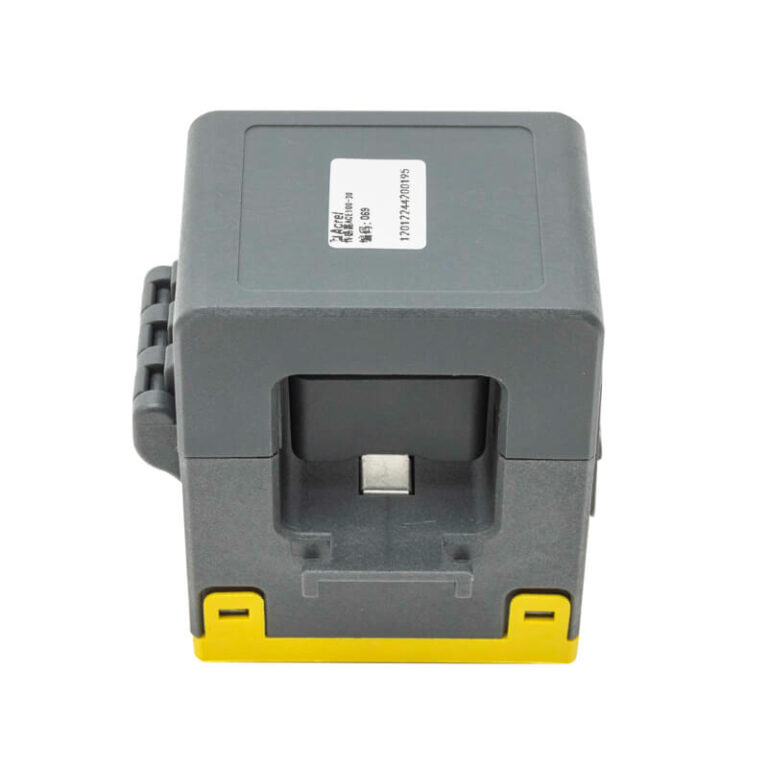

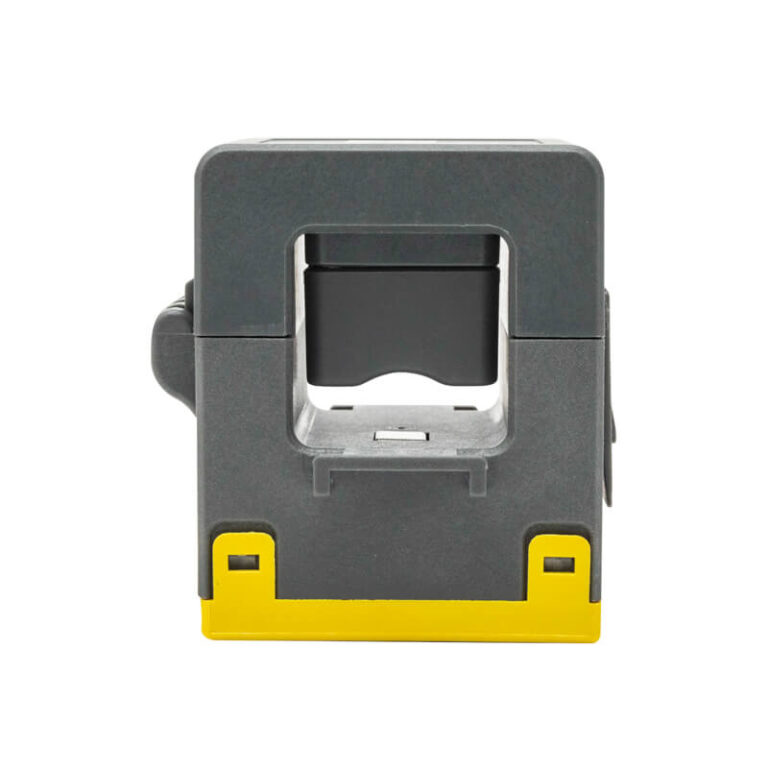

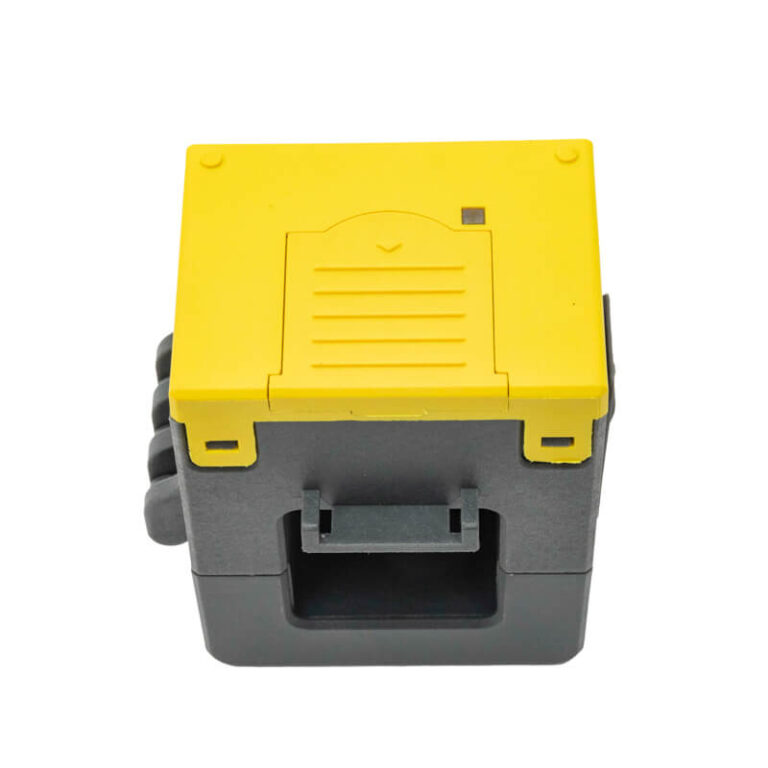

The ACE100-29 is a compact, dual-function sensor designed for real-time monitoring of current and temperature on low-voltage power cables. It is primarily used in switchgear and distribution cabinets to detect potential cable faults early and ensure power supply reliability. The sensor features a dual power supply system (internal battery + electromagnetic energy harvesting) and wireless data transmission, enabling easy installation and maintenance-free operation.
Highlight
Dual Power Supply
- Internal battery + CT-powered
- Battery life 3 years
- Auto-switch at ≥2.5A
Wireless Transmission
- 470MHz/433MHz frequency
- Range up to 150m (open)
- Works with ATC600-C
High Accuracy
- Temp: ±1℃, 0.1℃ res.
- Current: 1%FS, 0.01A res.
Easy Installation

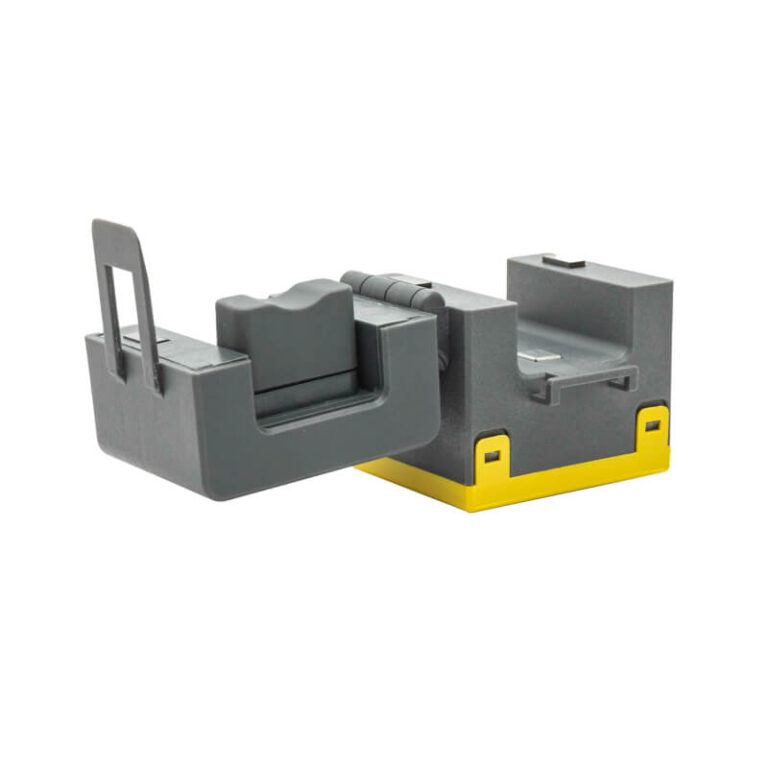

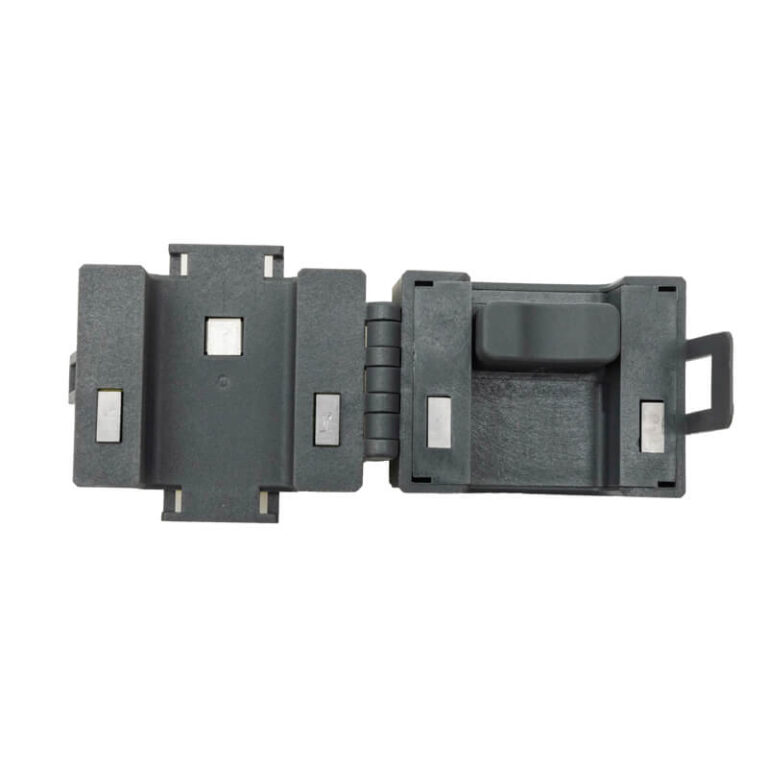

- Open snap-type clamp
- Fits cables Ø6~29mm
- No tools required
Function

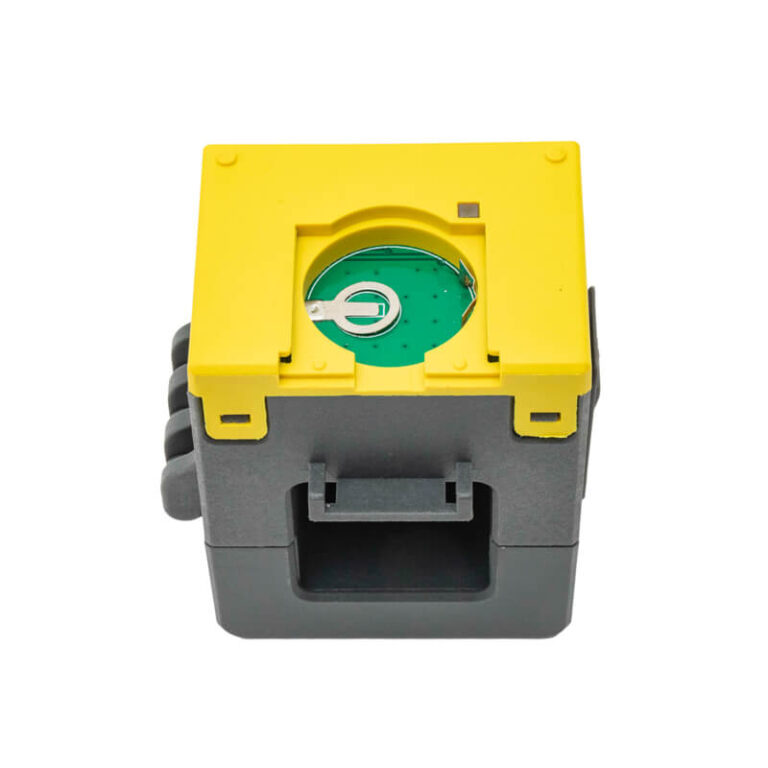

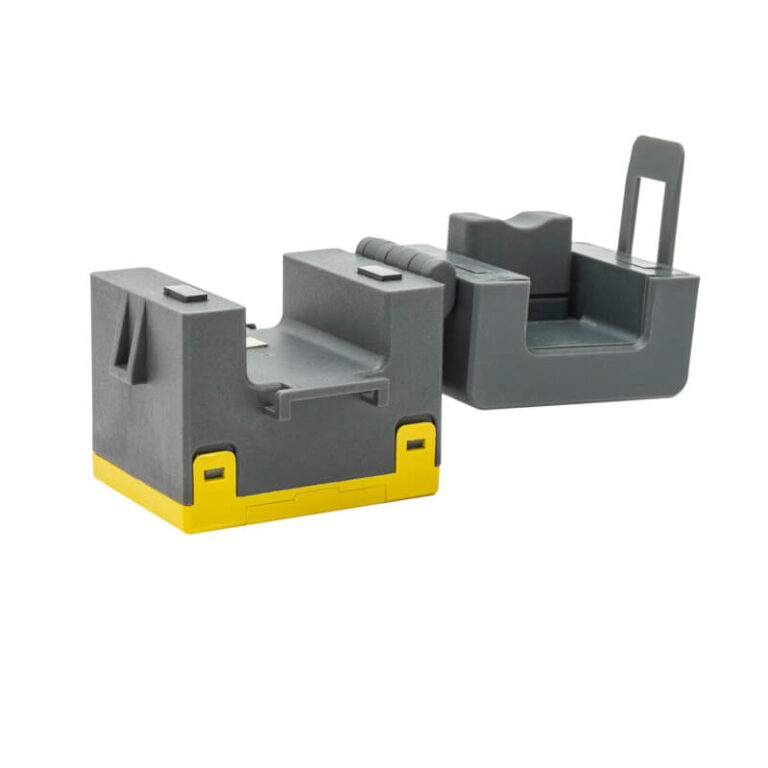

| Dual Measurement | Simultaneously measures cable temperature and current. |
| Dual Power Supply | Powered by internal battery (CR2450) or electromagnetic energy from the cable (CT-powered). When current ≥2.5A, sensor switches to CT-powered mode, saving battery. |
| Wireless Communication | Transmits data via 470MHz or 433MHz frequency to a receiver (e.g., ATC600-C). |
| Configurable Sampling Cycle | CT-powered: 10~30 seconds; Battery-powered: 3 minutes. |
| Status Indicator | LED flashes to indicate data transmission. |
| Easy Installation | Open snap-type clamp for quick mounting on cables. |
Specification
| Parameter | Value |
| Temperature Measurement Range | -50℃ ~ +125℃ |
| Current Measurement Range | 1 ~ 400A AC |
| Temperature Accuracy | ±1℃ |
| Current Accuracy | 1%FS |
| Temperature Resolution | 0.1℃ |
| Current Resolution | 0.01A |
| Sampling & Transmission Cycle | CT-powered: 10~30s; Battery: 3min |
| CT Starting Current | ≥2.5A AC |
| Battery Type / Life | CR2450 / 3 years at 25℃ |
| Wireless Frequency | 470MHz / 433MHz |
| Communication Distance | 150m (open area) |
| Operating Environment | -40℃ ~ +85℃, ≤95% RH |
| Installation Method | Open snap type |
| Compatible Cable Diameter | 6 ~ 29mm |
Show More
Optional Accessories
Replacement Battery – CR2450 lithium battery
Mounting Tools – None required, sensor clips directly onto cable
Summary
The ACE100-29 wireless temperature & current sensor provides a reliable and cost-effective solution for monitoring low-voltage cables in switchgear and distribution cabinets. By combining temperature and current measurement in one device, it reduces installation complexity and cost. The dual-power design ensures long-term operation with minimal maintenance, while wireless transmission enables easy integration into existing monitoring systems. Paired with the ATC600-C receiver and ATP series touchscreens, it forms a complete cable condition monitoring solution.
FAQ
No. ACE100-29 is designed specifically for low-voltage applications (0.4kV). For medium/high-voltage cables, please refer to our ATE series sensors with appropriate insulation.
The sensor requires at least 2.5A AC to start energy harvesting. Below that, it runs on battery.
Approximately 3 years at 25℃. When the battery is low, the sensor can still operate if current is above 2.5A.
The sampling cycle is fixed: 10~30s when CT-powered, 3 minutes on battery. This optimizes battery life and data freshness.
The LED flashes each time data is transmitted. You can also check received data on the monitoring system.
ACE100-29 works with ATC600-C receiver. One ATC600-C can receive up to 240 sensors.
