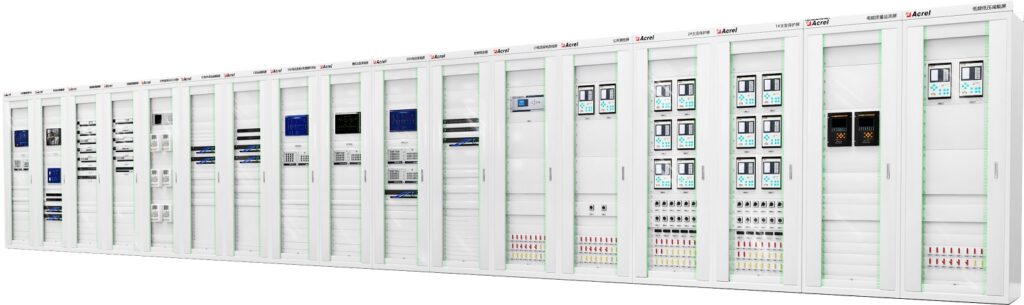

Background
User-side power distribution monitoring at 10/0.4kV requires continuous visibility of both electrical parameters (voltage, current, power) and equipment conditions
such as temperature, humidity, partial discharge, and arc flash. Without real-time monitoring, hidden faults can escalate into unplanned outages and equipment damage.
Pain & Value
Your Pain Points
Blind spots in insulation and manual inspection fail to warn of sudden switchgear faults, causing costly downtime.
Busbar overheating and insulation degradation are invisible to the naked eye, posing fatal threats to assets and personnel.
Scattered sub-stations lack centralized SCADA visibility, making fault troubleshooting slow, reactive, and labor-intensive.
Our Acrel Value
Eliminate blind spots with wireless passive temperature tags and UHF/Multi-sensor PD monitoring. Catch defects before failure.
Deploy ultra-fast arc flash relays to isolate faults within milliseconds, minimizing panel damage and ensuring NFPA/IEC safety compliance.
Streamline O&M via Modbus/MQTT. Turn reactive maintenance into predictive alerts, reducing operational costs by up to 30%.
Solution

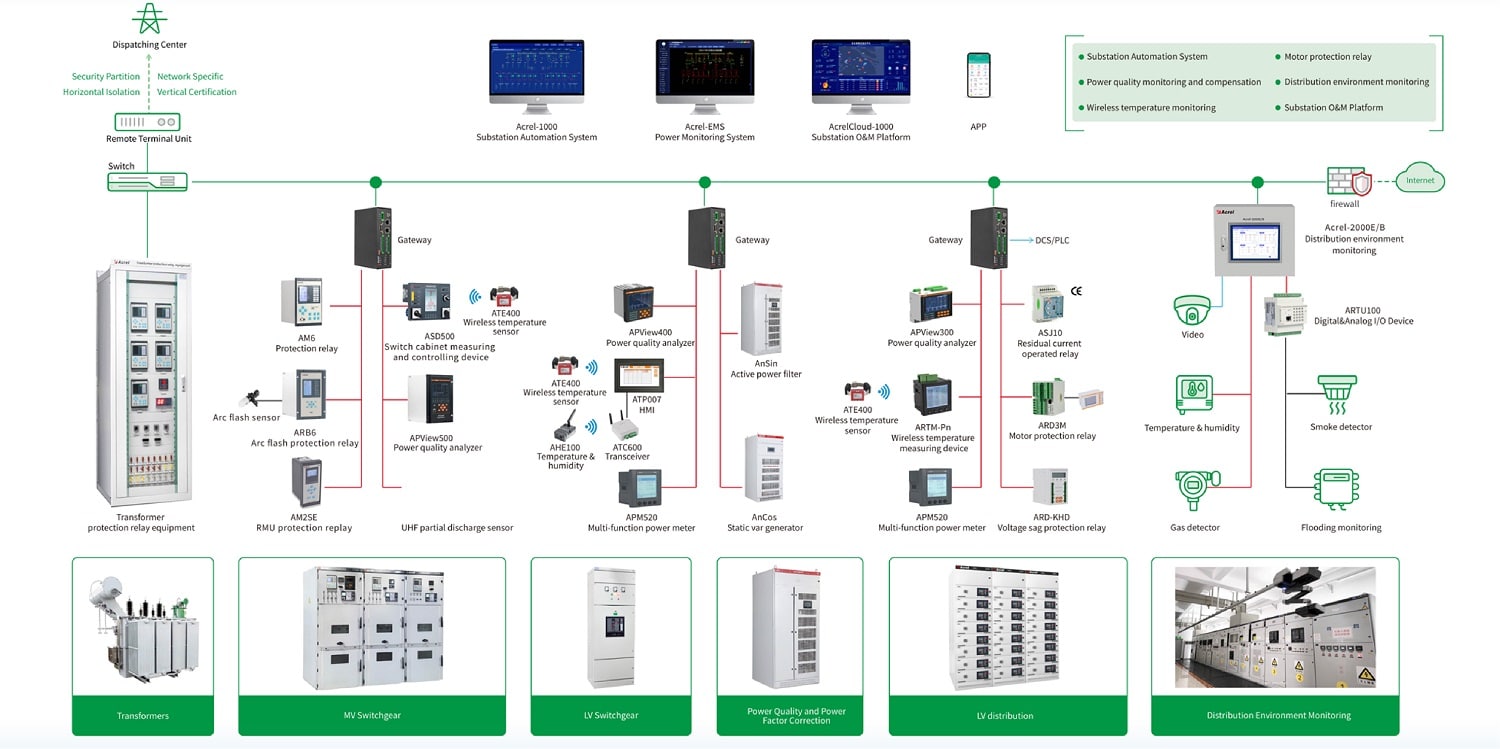

Acrel-2000 Electrical Power Monitoring System
Acrel-2000 collects and displays voltage, current, power, harmonics, temperature, humidity, partial discharge, and arc flash events in a single interface.
Real-time alarms and historical records support condition-based awareness for distribution assets.
Partial Discharge Monitoring
APD300 detects insulation degradation through AE, TEV, and UHF methods. The system captures discharge patterns and provides early visibility into insulation condition before failure occurs.
Temp. & Humi. Monitoring
ATE400 monitors busbar joints, breaker contacts, and cable terminals using CT-powered passive technology. AHE100 monitors cabinet temperature and humidity. Data is collected via ATC600 gateway.
- Data Acquisition & Real-time Monitoring
Real-time Monitoring: Displays one-line diagrams and real-time data (analog, digital, alarms).
Electrical Parameter Query: Provides detailed electrical parameters in real-time reports and bar charts.
Curve Query: Supports real-time/historical curves for analog values (current, voltage, power, temperature, etc.) with statistics (max/min/avg). - Alarm & Event Management
Real-time Alarm: Alarms for status changes, limit violations, protection actions, etc. Methods: pop-up, voice, SMS, audible/visual, etc.
Historical Event Query: Queries events (status changes, protection/trip, limit violations) by time, type, device. - Data Statistics & Reporting
Operation Report: Queries operational parameters for any period and exports/prints daily/monthly/yearly reports.
Energy Statistics Report: Queries energy consumption of any distribution node over any period (incoming vs. branch consumption).
Switch Operation Count Report: Counts daily open/close operations of each digital status point. - System Management & Maintenance
Communication Management: Manages communication status and messages. Supports data exchange with various IEDs.
Network Topology: Real-time monitoring of communication status, online diagnostic of faulty devices/locations.
GPS Time Synchronization: Integrates Beidou/GPS time synchronization for unified system time reference.
User Permission Management: Role-based permissions to prevent unauthorized operations (remote control, DB modification).
Products

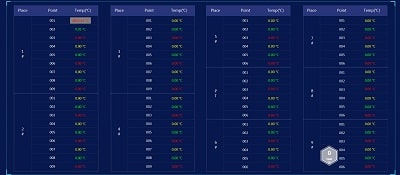

01.Comprehensive Temperature Monitoring
Targets: All critical connection points including busbar joints, circuit breaker contacts, and cable terminals.
Solves: Precisely locates overheating points caused by poor contact, preventing electrical fires and connection failures.
Value: Enables early overheating warning and guides preventive maintenance based on real-time temperature and trend analysis.
Product: ATE400 Wireless Temperature Sensor.
Employs high-precision sensing and wireless passive technology, installed directly on Low, Medium, High-voltage live parts for safe, reliable, and maintenance-free long-term online temperature monitoring.
CE RED
470/433/868-923MHz
Frequency 15s
CT-powered
-50~125℃

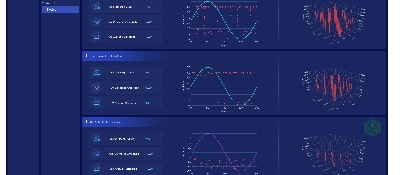

02.Recision Partial Discharge Monitoring
Targets: Internal insulation components, busbar insulation, cable terminations.
Solves: Detects the earliest signals of insulation degradation, providing ample warning time before failures occur.
Value: Identifies discharge types and patterns, quantifies insulation health status, serving as the core basis for condition-based maintenance.
Product: APD300 Series Partial Discharge Monitors.
Offers both AE, TEV and UHF detection methods to accurately capture and locate internal PD activity, assessing insulation health status.
Power：DC12-36V / Battery
AE TEV UHF
Noise Temperature Humidity
Communication: Modbus-RTU / Lora

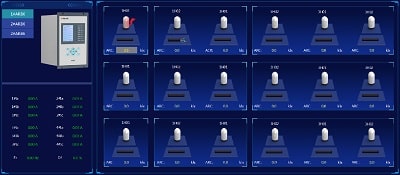

03.Arc Flash Safety Protection
Targets:Sudden arc flash faults inside the cabinet.
Solves: Acts as the last line of defense, detecting and suppressing highly destructive arc flash faults within milliseconds.
Value: Millisecond-level rapid response minimizes fault energy impact, protecting equipment and personnel.
Product: ARB6 Arc Flash Protection System.
Based on high-speed light detection and current criteria, offers extremely fast operation (≤7.8ms), providing vital transient fault protection for critical switchgear.
30ch ARC sensor max
Ethernet RS485
DIDO
04.Intelligent Cabinet Environment Management
Targets: Internal temperature, humidity status.
Solves: Proactively prevents insulation degradation and flashover faults caused by excessive humidity or temperature.
Value: Temperature and humidity monitoring effectively protects internal components and extends their service life.
Product: AHE100 Temperature and Humidity Sensor.
Specifically designed to monitor temperature and humidity inside switchgear in real-time, to promptly issue warnings for abnormal conditions risks.
Temperature
Humidity
Power: DC12-36V / Battery
Application
Smart retrofitting and condition management of 10/35kV switchgear and ring main units in substations.
Main distribution rooms and critical process segment switchgear in industries like petrochemicals, steel, semiconductors, and automotive manufacturing to ensure continuous production.
Provides reliability warnings for critical power infrastructure (MV distribution, UPS input/output cabinets).
Traction substations and distribution stations in subways and airports, enhancing power supply safety for public facilities.
Make Safety Visible, Operations Predictive, and Management Smart.
Contact us to build your customized, resilient substation solution.
