Overview

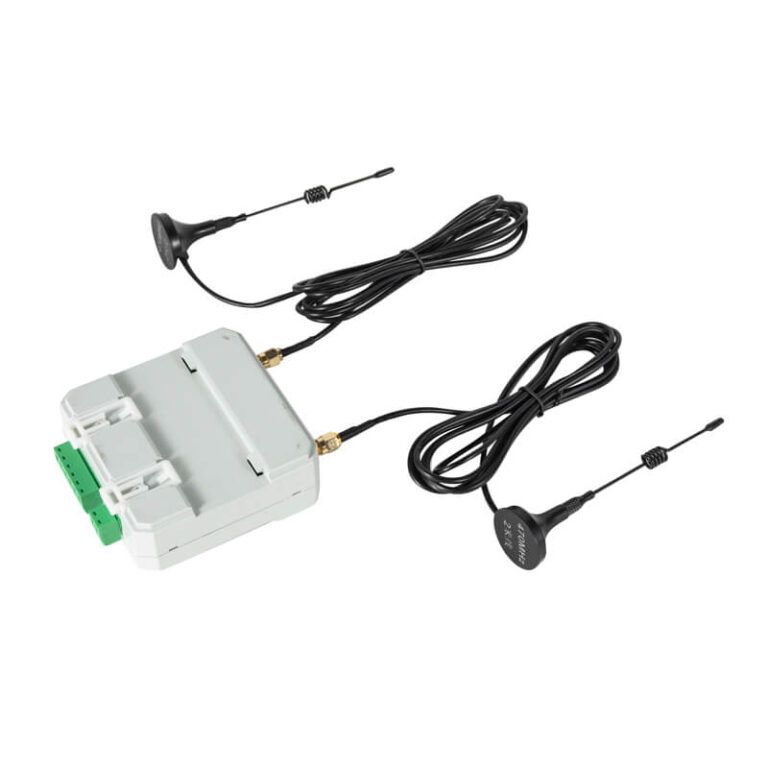

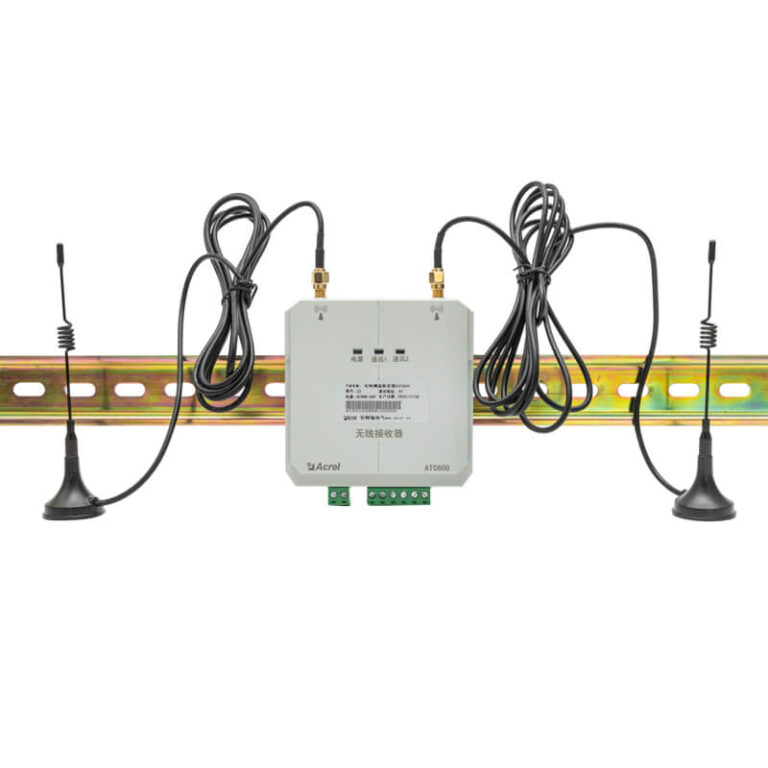

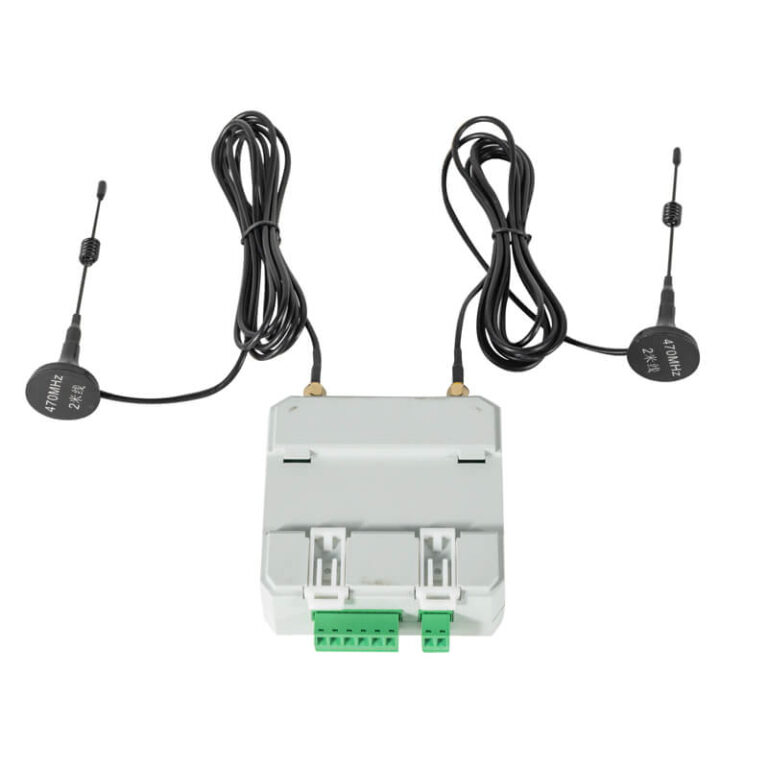

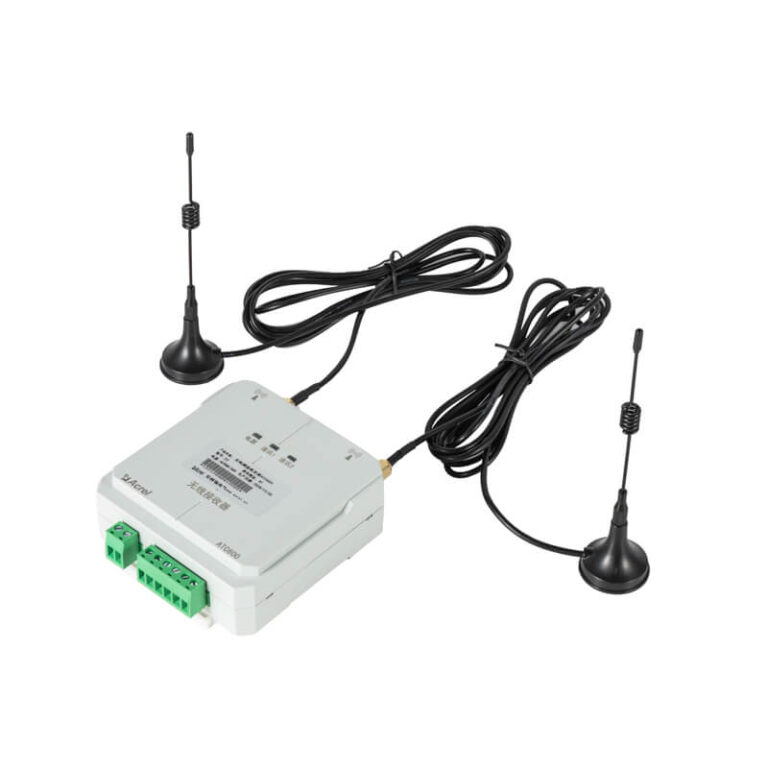

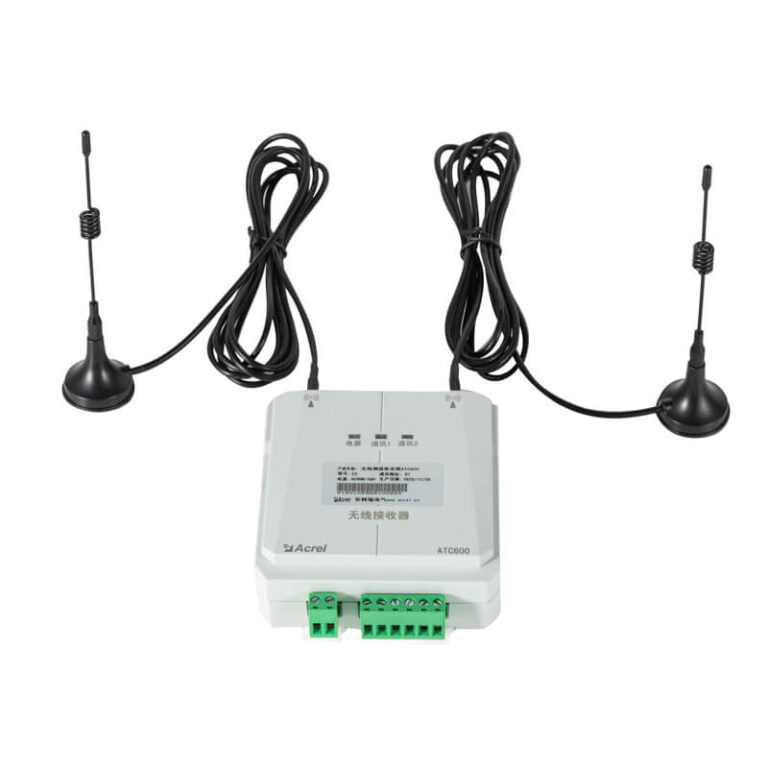

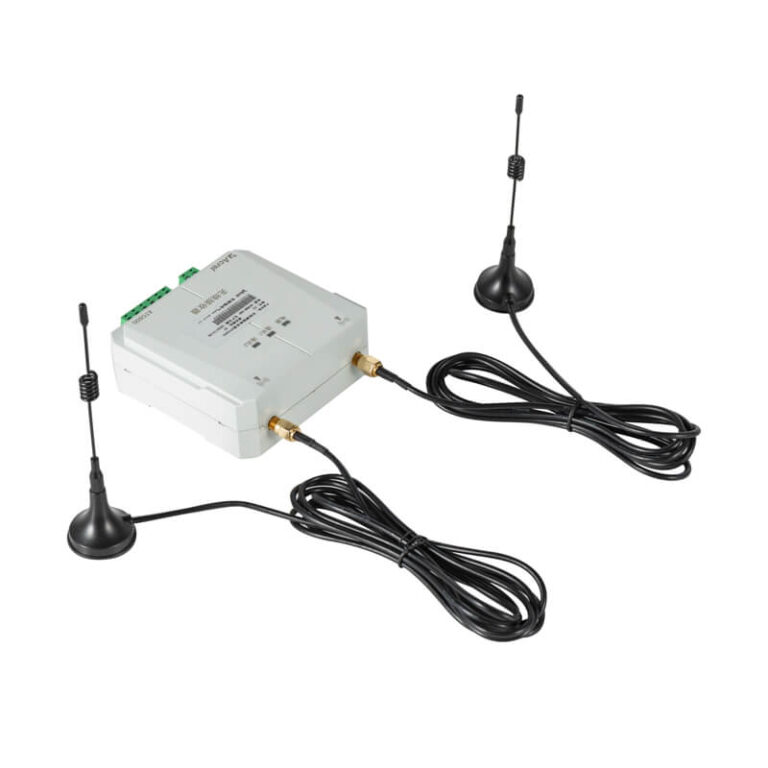

The ATC600 series wireless temperature measurement transceiver is designed for real-time monitoring of critical points in electrical systems such as switchgear, cable joints, transformers, and busbars. It collects data from various wireless sensors and transmits it via RS485 with MODBUS-RTU protocol, enabling seamless integration into SCADA, EMS, or other monitoring platforms. The series includes receiver models (-C, -M, -PD) and a repeater (-Z) to meet different application needs.
Highlight
Multi-Model Options
- C: 240 temp + 80 PD
- M: 1440 temp points
- PD: 240 temp + 40 PD
- Z: signal repeater
Wide Power Supply
- AC 85-265V / DC 100-300V
- Optional DC 12-48V
- ≤2W low consumption
High Accuracy
- ±1℃ temp accuracy
- 0.1℃ resolution
- 433/470/510MHz wireless
- Up to 1km range (-M)
Standard Outputs
- RS485 Modbus RTU
- 2 relay outputs (5A)
- Sensor binding & status
Function
| Wireless data reception | multiple sensor types (temperature, humidity, current, partial discharge) |
| RS485 communication | MODBUS-RTU protocol, baud rate 2400-19200bps |
| 2 relay outputs | alarm or control (capacity 5A/250VAC, 5A/30VDC) |
| Repeater mode (ATC600-Z) | extends transmission distance up to 1km |
| Sensor binding and status monitoring | online/battery low) |
| Compact DIN35 rail mounting | 90×90×38mm |
Specification
| Parameter | Value |
| Power Supply | AC 85~265V or DC 100~300V; optional DC 12~48V |
| Power Consumption | ≤2W |
| Temperature Measurement Range | -50℃~+125℃ (ATC600-C/-PD); -40℃~+150℃ (ATC600-M) |
| Temperature Accuracy | ±1℃ |
| Resolution | 0.1℃ |
| Wireless Frequency | 433MHz / 470MHz / 510MHz (depending on model) |
| Wireless Distance (Receiver) | 150m (470MHz), 50m (433MHz) in open area; |
| ATC600-M: 1km; ATC600-PD: 150m (APD300-W) | |
| Relay Output | 2 passive outputs, 5A/250VAC, 5A/30VDC |
| Communication Interface | RS485, MODBUS-RTU |
| Baud Rate | 2400, 4800, 9600, 19200 bps |
| Operating Environment | Temperature -20℃~+55℃, Humidity ≤95% (non-condensing) |
| Installation | DIN35mm rail |
| Dimensions | 90mm × 90mm × 38mm |
Show More
Model Differences
| Model | Supported Sensors | Temperature Points |
| ATC600-C | ATE400, AHE100, ACE100, ATE300P, APD100 | 240 + 80 (APD100) |
| ATC600-Z | ATE400 (repeater) | – |
| ATC600-M | ATE300M | 1440 (240 sensors) |
| ATC600-PD | ATE400, APD300-W | 240 + 40 (APD300-W) |
FAQ
ATC600-C supports up to 240 temperature sensors + 80 APD100 partial discharge sensors; ATC600-M supports 240 sensors (1440 points); ATC600-PD supports 240 temperature + 40 APD300-W.
For ATC600-C/-PD, receiving distance is 150m (470MHz) or 50m (433MHz) in open area; ATC600-M can receive up to 1km. The ATC600-Z repeater can extend the distance to 1km.
Yes, AHE100 is compatible with ATC600-C (special program required for APD100, but AHE100 works with standard -C). Please refer to the address table for humidity data.
Relay status can be read/written via MODBUS register 0202H. The output is controlled by the upper computer; no local setting is available.
Summary
The ATC600 series wireless temperature transceiver provides a reliable and scalable solution for monitoring critical electrical assets. With multiple models, wide power supply range, high accuracy, and flexible sensor compatibility, it ensures timely detection of abnormal temperature rise, reducing maintenance costs and preventing failures. Its standard MODBUS-RTU interface simplifies integration into existing monitoring systems, making it an ideal choice for both new installations and retrofit projects.
