Background
Lead-acid batteries remain the dominant choice for backup power in telecom base stations, data centers, and industrial UPS across the Middle East.
However, undetected cell degradation, internal resistance increase, and temperature imbalance often lead to sudden battery failure, causing unexpected downtime and costly emergency replacements.
Pain & Value
Your Pain Points
Unexpected battery failure disrupts core business continuity and increases operational expenditure.
High total cost of ownership due to frequent whole‑string replacements and manual site visits.
Manual voltage/temperature checks are time‑consuming and cannot detect internal resistance rise before failure.
Our Acrel Value
ABAT100 provides real-time SOC/SOH and early failure warning, enabling predictive replacement and reducing OPEX.
Low‑power, long-life monitoring modules extend battery life and allow single‑cell replacement only – lowering TCO.
Automated internal resistance measurement (automatic test cycle) and remote access eliminate manual checks and catch degradation early.
Solution

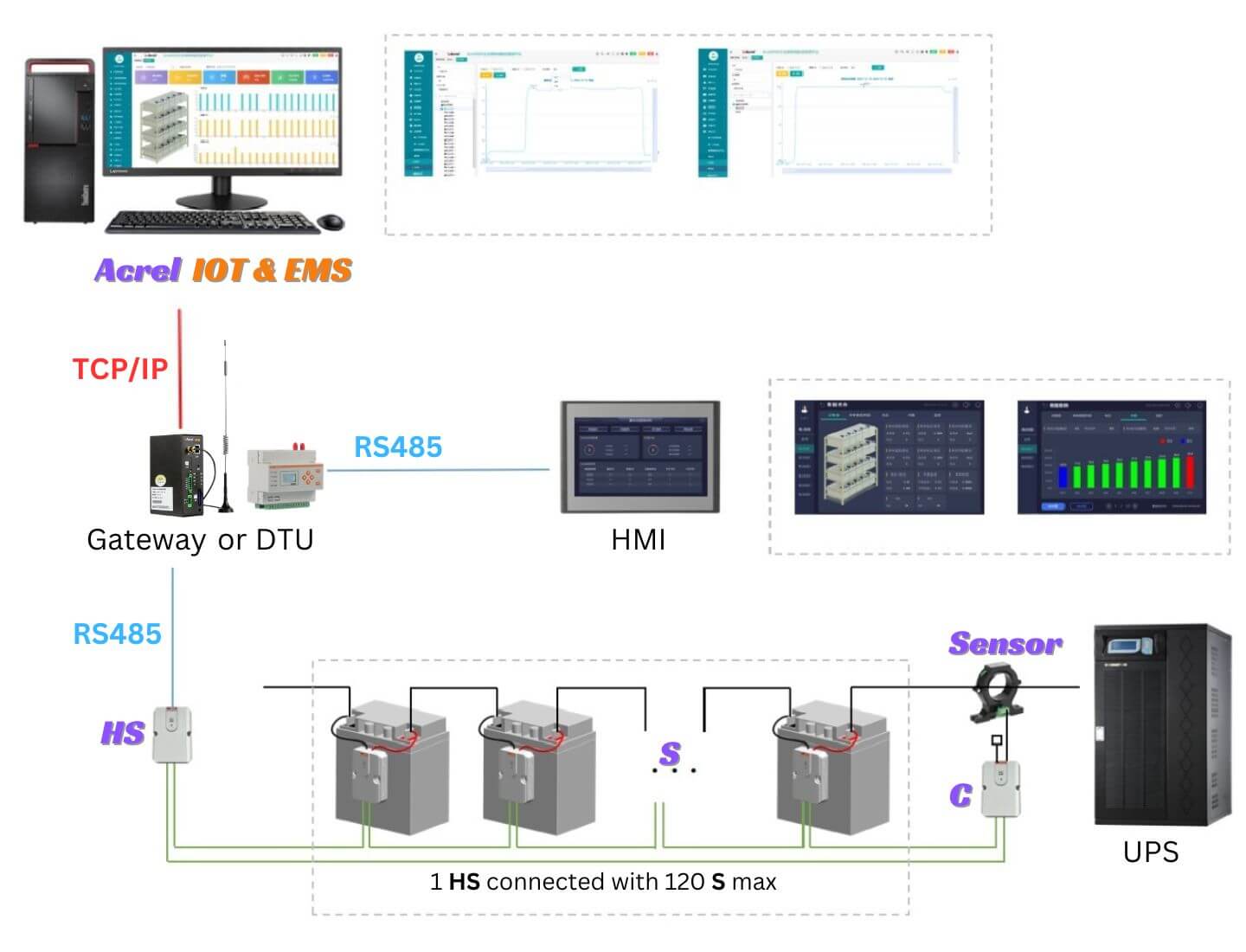

ABAT100 Series VRLA Battery Monitoring System
Perception Layer
ABAT100‑S single battery modules (for 2V/6V/12V) measure voltage, internal resistance and negative terminal temperature per cell. ABAT100‑C monitors string current (Hall sensor up to 1000A) and ambient temperature.
Convergence Layer
ABAT100‑HS collector manages up to 120 single modules per string, calculates SOC/SOH, stores historical data, and provides RS485 (Modbus RTU) output.
Application Layer
Local touchscreen HMI (7″/10″) displays real‑time data, alarms, trend charts, and allows parameter setting. Optional integration with Acrel EMS or EIOT cloud for centralized multi‑site monitoring.
The ABAT100 system enables 24/7 online monitoring of each battery’s voltage, internal resistance, temperature, and string current.
It provides early failure alerts, automatic resistance testing, and historical trend analysis – turning passive backup batteries into actively managed assets.
Product

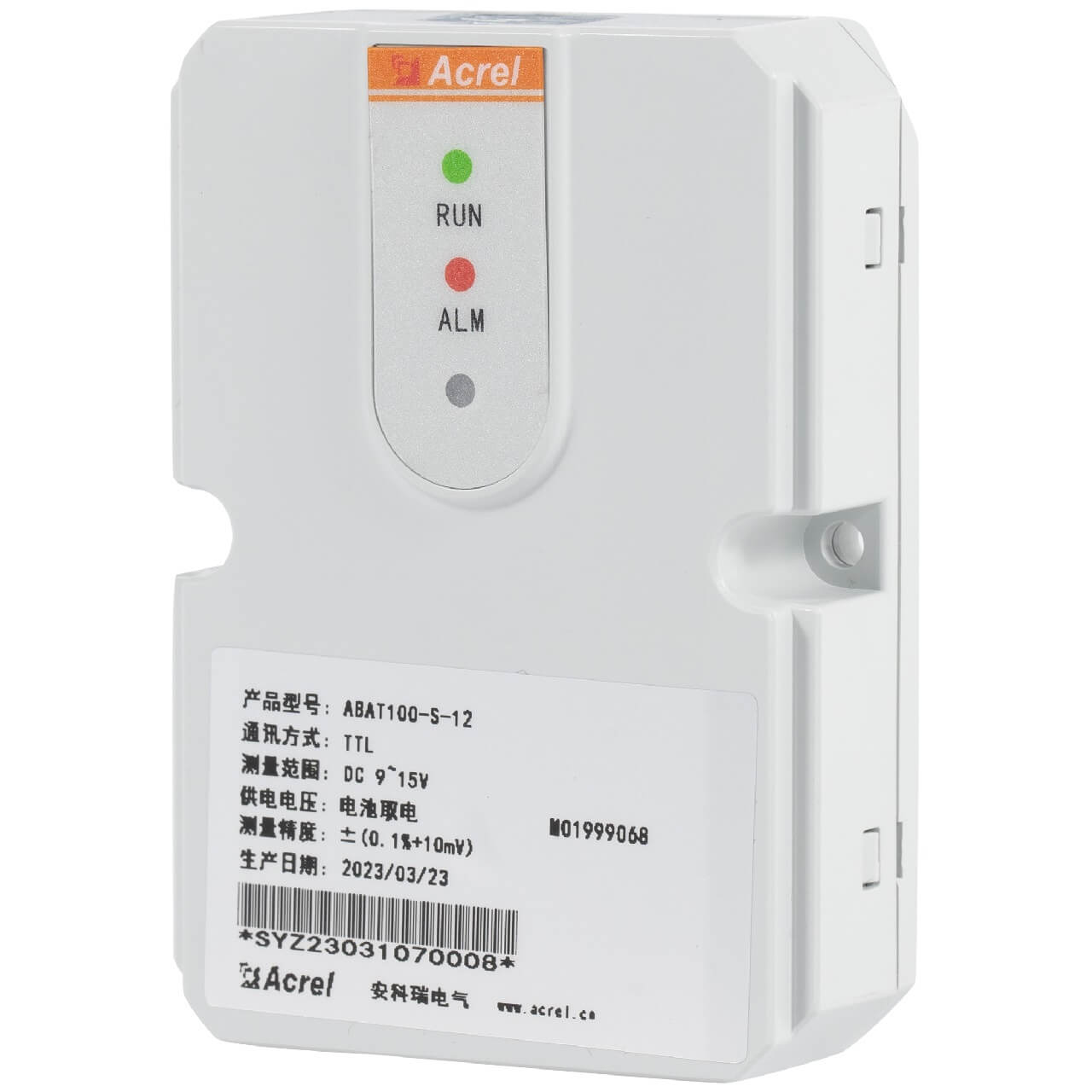

01. Single battery monitoring
Targets: Voltage, internal resistance, negative terminal temperature of each 2V/6V/12V battery
Solves: Detects internal resistance rise – the earliest sign of battery degradation
Value: Enables single‑cell predictive replacement, avoids full string change
Product: ABAT100‑S‑02 / ‑06 / ‑12
Ultra‑low power (5‑10mA)
battery‑powered
direct mount on each cell

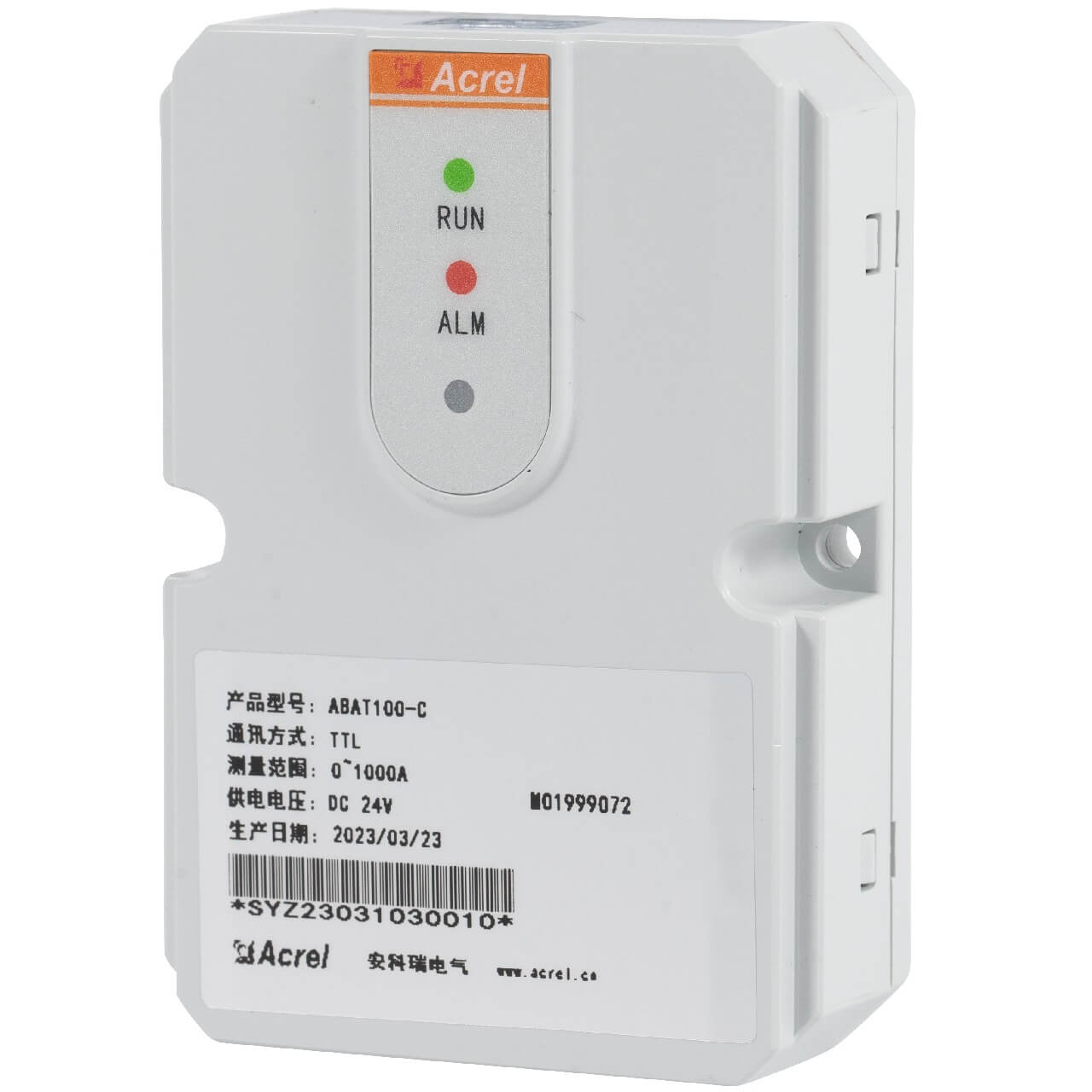

02. String current & ambient temp
Targets: Charge/discharge current (0‑1000A), ambient temperature
Solves: Identifies abnormal overcurrent and thermal stress on the string
Value: Prevents battery overheating and overcharge/discharge damage
Product: ABAT100‑C + AHKC‑EKC Hall sensor
DC24V powered
1000A max
open‑loop Hall sensor

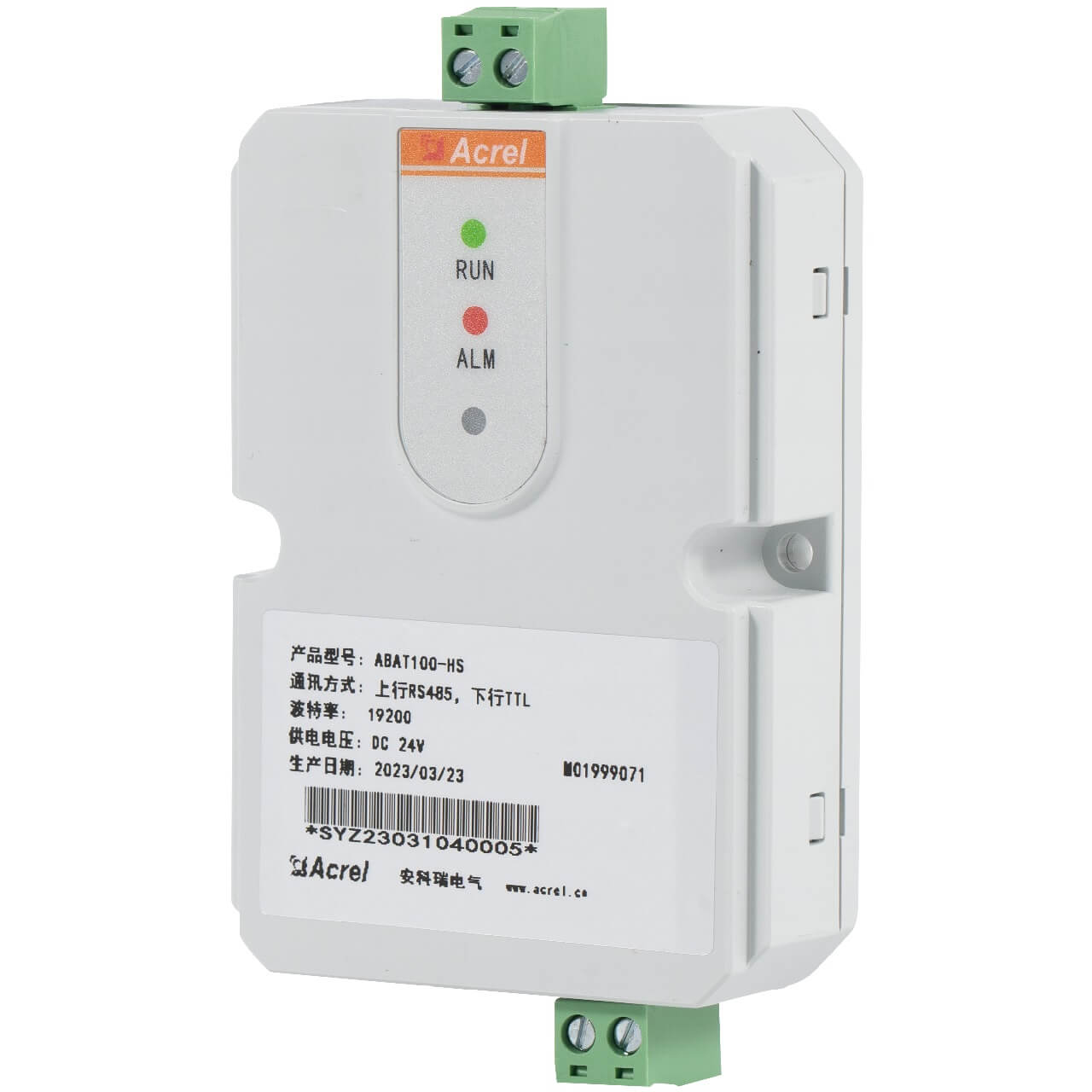

03. Data collection & management
Targets: Up to 120 single modules per string; SOC/SOH calculation
Solves: No real‑time SOC/SOH visibility for the whole string
Value: Provides remaining capacity and health status for proactive planning
Product: ABAT100‑HS
Manages one battery string
RS485 Modbus-RTU
local data storage
04. Local HMI & remote platform
Targets: Centralised display, alarm logs, trend charts, parameter setting
Solves: Scattered sites lack unified monitoring
Value: Reduces site visits and enables remote decision‑making
Core Product: 7″/10″ touchscreen, Acrel EMS / EIOT
Touch interface, multi‑language, trend graphs, cloud ready
Touch interface
multi‑language
trend graphs
cloud ready
Typical Application Scenarios
Thousands of remote base stations across Saudi Arabia, UAE, and Iraq rely on lead‑acid batteries for 4‑8 hour backup. ABAT100 monitors each battery’s internal resistance and temperature remotely, reducing expensive truck rolls and preventing unexpected site outages.
Data centers in Dubai, Riyadh, and Doha require Tier III/IV availability. ABAT100 provides real‑time string voltage, current, and individual cell data with SOC/SOH estimation, enabling predictive maintenance and compliance with strict uptime requirements.
In off‑grid or hybrid solar applications (e.g., remote desalination plants, rural telecom), lead‑acid batteries cycle frequently. ABAT100 tracks charge/discharge current and cell temperature, preventing premature failure caused by partial state‑of‑charge (PSOC) operation.
Industrial facilities in Jubail, Abu Dhabi, and Qatar require high‑reliability backup for process control systems. ABAT100’s automatic internal resistance testing and remote alarm ensure battery health without interrupting operations.
Make Battery Safety Visible, Make O&M Smart
Contact Acrel Middle East for a customized VRLA Battery Monitoring Solution and demo.
