Background
The rapid expansion of data centers has intensified challenges in energy management and power distribution reliability. Efficient and reliable power distribution is essential to improve Power Usage Effectiveness (PUE) and ensure continuous operation of IT equipment. Traditional metering solutions, however, face limitations in cost, space, installation complexity, and monitoring coverage across multiple load circuits. A dedicated multi-loop monitoring solution for precision power distribution cabinets (header cabinets) is therefore required.
Pain & Value
Your Pain Points
High energy costs and lack of granular visibility into energy consumption at IT load level, making PUE optimization difficult.
Traditional multi-instrument solutions require high upfront investment and complex wiring, increasing total project cost.
Manual inspection of numerous outgoing circuits is time-consuming, inefficient, and prone to missing anomalies.
Our Acrel Value
Reduces energy waste and lowers operational costs through real-time branch-level power consumption monitoring and PUE analytics.
Highly integrated modular design reduces hardware count and wiring work, delivering lower total cost of ownership.
Real-time monitoring of up to 192 outgoing circuits with individually configurable alarm thresholds and instant sound/light alerts.
Solution
Acrel Critical Power Distribution Monitoring Solution
AC System
For 220V AC system header cabinets, the Master module monitors A+B dual incoming lines (voltage, current, power, harmonics up to 63rd, zero‑to‑ground voltage). The Slave module monitor up to 30/48 single‑phase or 10/16 three-phase outgoing circuits with outlet‑level energy metering and independent alarm thresholds.
DC System
Suitable for -48V DC distribution cabinets in telecom towers, accurately monitoring DC For –48V / 240V / 336V DC systems (common in telecom and colocation data centers), the Master module monitors dual DC incoming lines. The Slave module monitor 30 or 48 DC outgoing circuits, providing precise branch‑level DC power measurement.
Local HMI

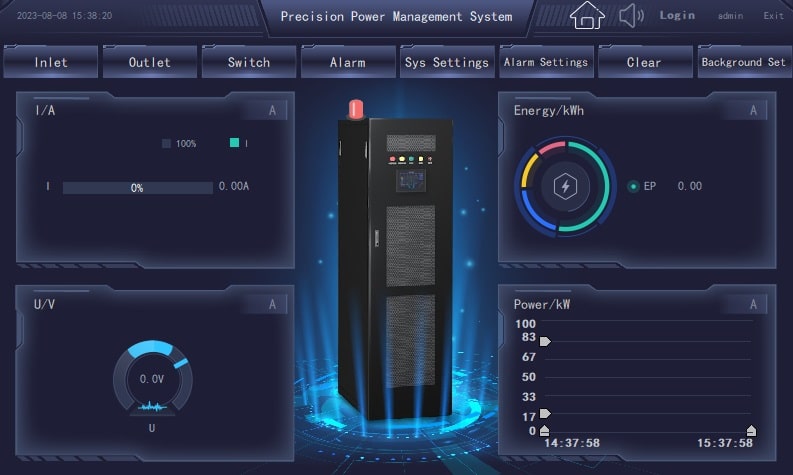

Touchscreen HMI is deployed inside the header cabinet or on the door. It displays all incoming / outgoing electrical parameters, alarm status, historical data, and event logs. Data can be uploaded to a local BMS, DCIM platform, or the AcrelEMS-IDC energy management platform via RS485/Modbus‑RTU or optional Ethernet/Modbus-TCP.
Product
01. AC Incoming Monitoring
Targets: A+B dual three-phase AC incoming lines
Solves: Manual inspection cannot capture voltage unbalance or harmonic distortion in real time
Value: Real-time full power parameters, 63rd harmonic analysis, and zero-to-ground voltage monitoring

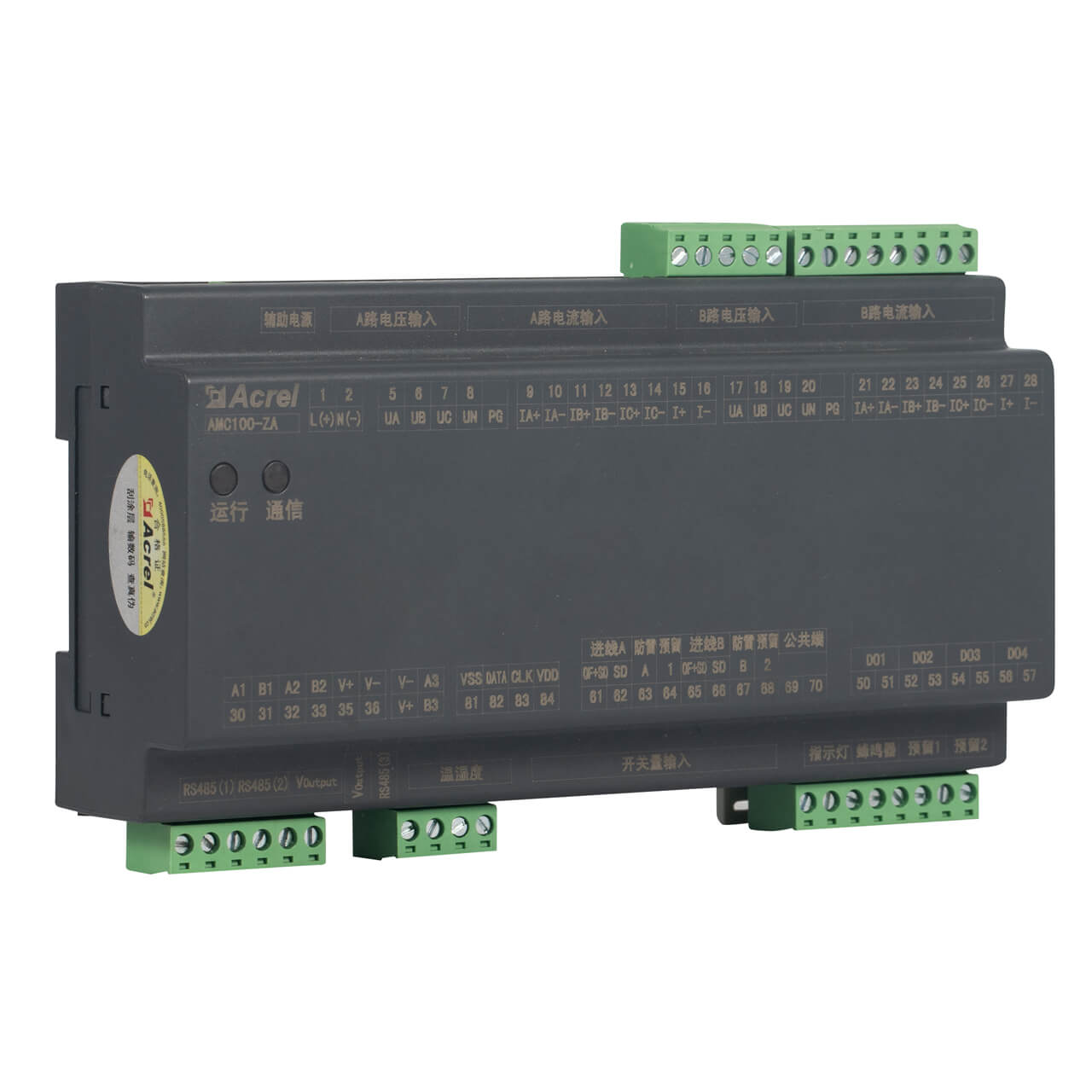

Product: AMC100-ZA
Dual incoming lines
Full power parameters
3*Modbus-RTU RS485
optional Modbus-TCP Ethernet
4DI 4DO,
Leakage Current,
Temp.&Humidity
02. AC Outgoing Monitoring
Targets: 30 / 48 single-phase or 10 / 16 three-phase AC outgoing circuits
Solves: No visibility into individual server power consumption, hindering energy optimization
Value: Outlet-level energy metering with individually configurable alarms, immediate alert on over-limit events

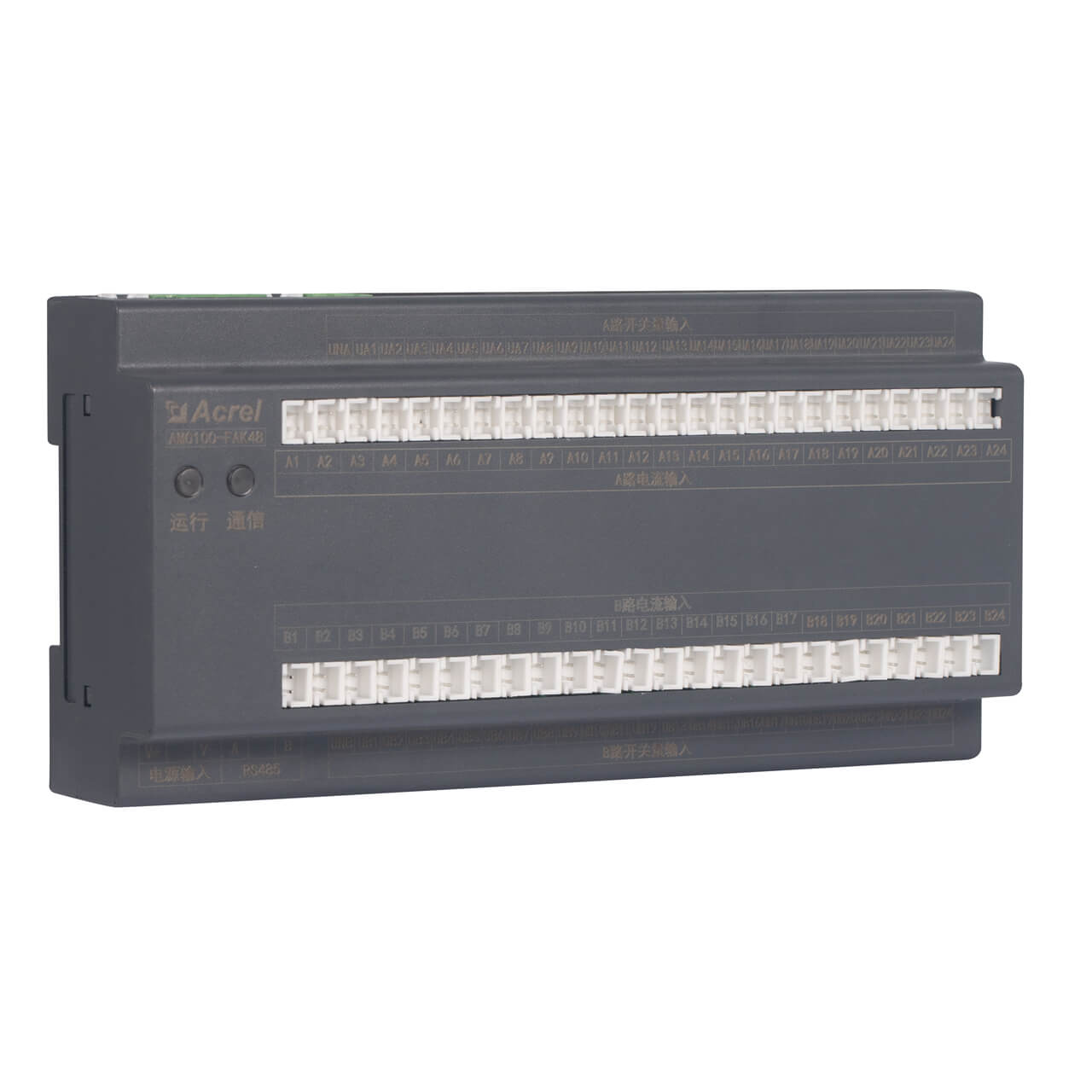

Product: AMC100-FAK30/48, AMC100-FA30/48
30 or 48 branches
U, I, P, E
1*Modbus-RTU RS485
Power Supply: DC-12-24V
30/48 DI
03. DC Incoming Monitoring
Targets: Dual DC incoming lines (–48V/240V/336V)
Solves: Traditional instruments lack DC-specific full-parameter monitoring
Solves: Large shared towers have too many loops — conventional meters multiply cabling complexity
Value: Real-time monitoring of DC voltage, current, power, and energy for telecom and colocation data centers

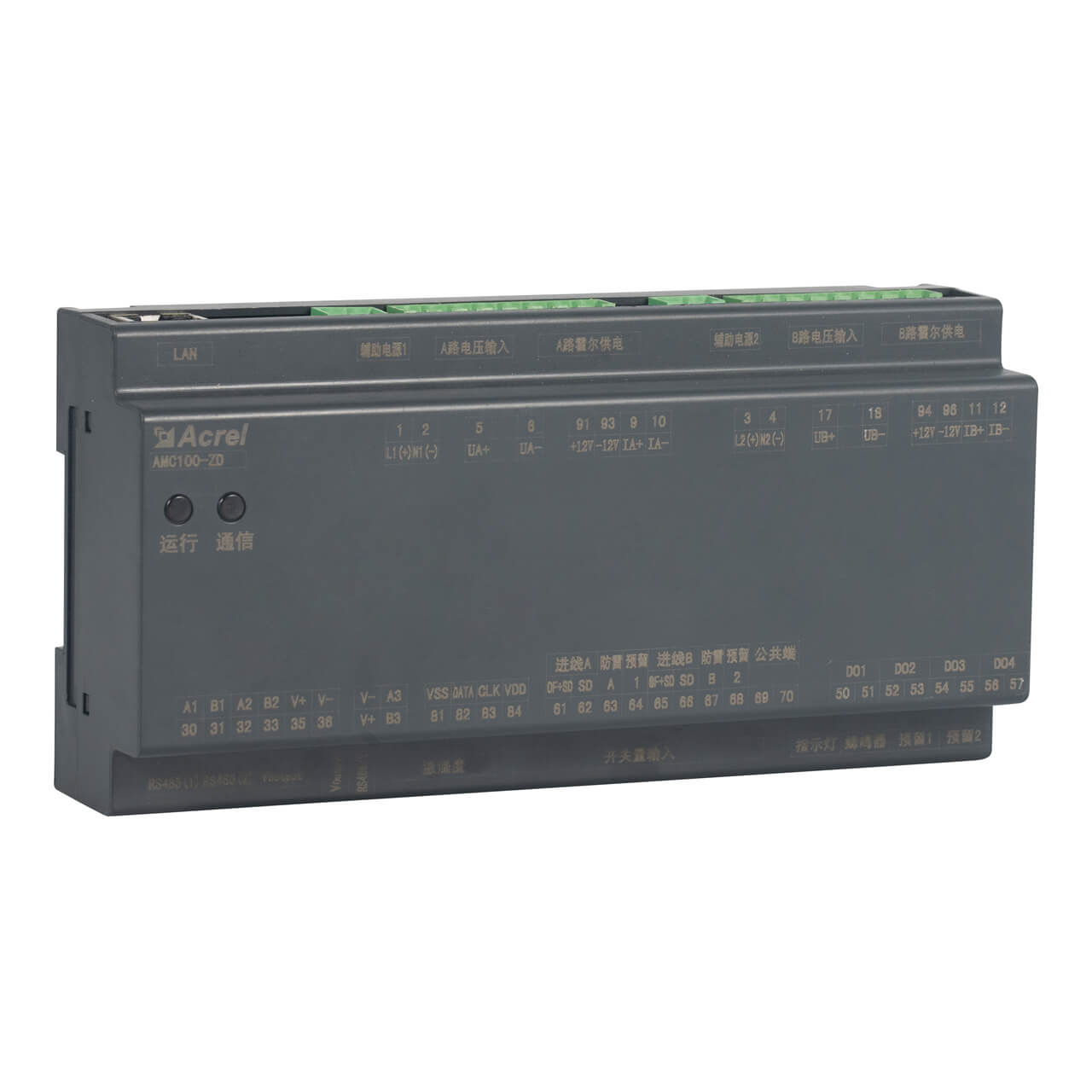

Product: AMC100-ZD
Dual DC incoming lines
Real‑time DC parameters
3*Modbus-RTU RS485
optional Modbus-TCP Ethernet
8DI 4DO,
Temp.&Humidity
04. DC Outgoing Monitoring
Targets: 30 or 48 DC outgoing circuits
Solves: High-density DC distribution creates safety risks and energy waste without per-branch monitoring
Value: Precise DC power measurement per branch, ensuring safe operation and supporting energy accounting

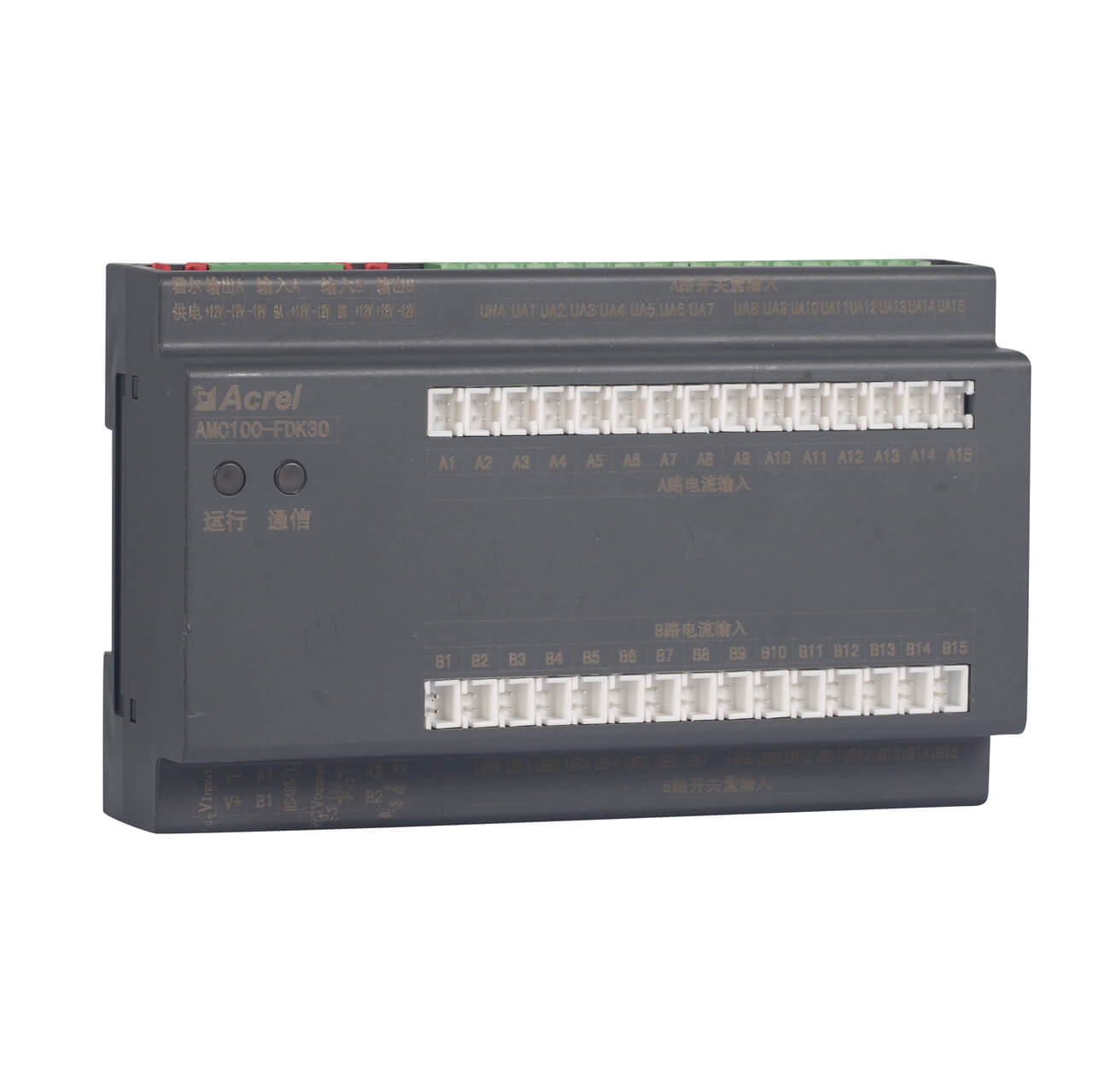

Product: AMC100-FDK3048, AMC100-FD30/48
30 or 48 DC branches
U, I, P, E
1*Modbus-RTU RS485
Power Supply: DC-12-24V
30/48 DI
05. Local HMI Display
Targets: All incoming/outline parameters and alarm status
Solves: Monitoring data cannot be viewed locally without a PC, affecting on-site response
Value: touchscreen with virtual meter view, alarm summary, and historical data retrieval
Product: ATP007/010Kt
Virtual meter view
Alarm summary & logs
RS485 / Ethernet upload
Power Supply: DC24V
Application
Telecom facilities typically use DC power systems (–48V). AMC100-ZD and FDK series deliver comprehensive DC power monitoring to ensure reliable communication infrastructure.
Large-scale cloud and colocation data centers require reliable power monitoring for thousands of server racks. AMC100 supports up to 192 outgoing circuits per cabinet, ideal for high-density monitoring.
In oil & gas and petrochemical sectors, data centers operate in harsh environments. AMC100’s wide operating temperature range (–15℃ to +55℃) ensures stable performance.
Make Energy Visible, Billing Transparent, and Management Smart.
Contact us to build your customized, intelligent Telecom Tower Remote Energy Monitoring Solution.
