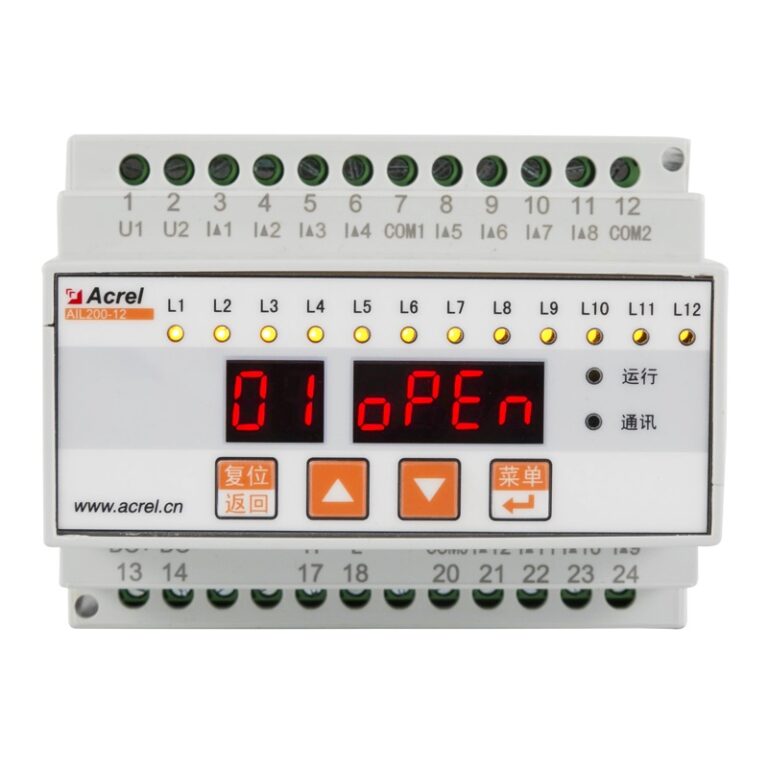

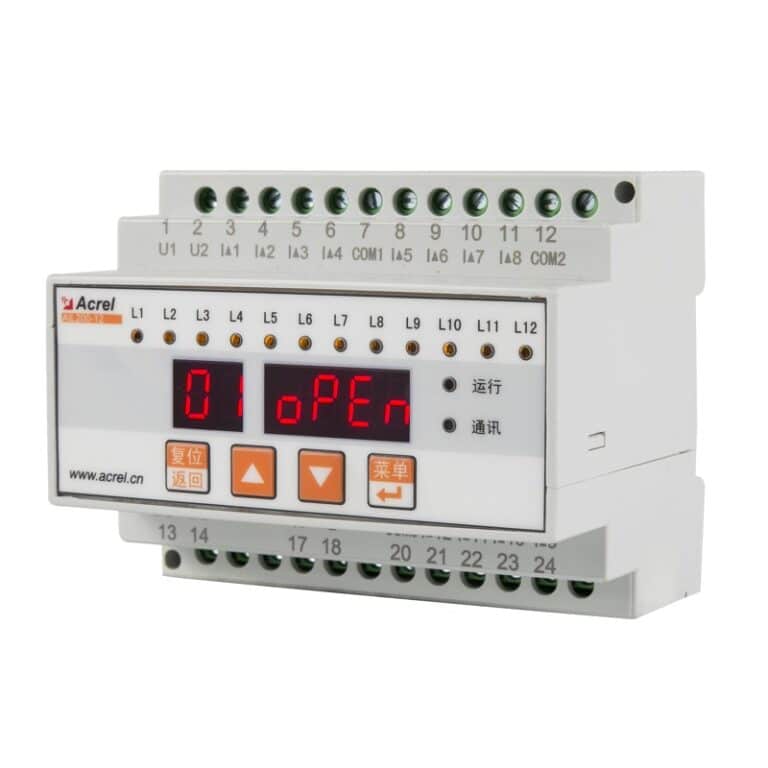

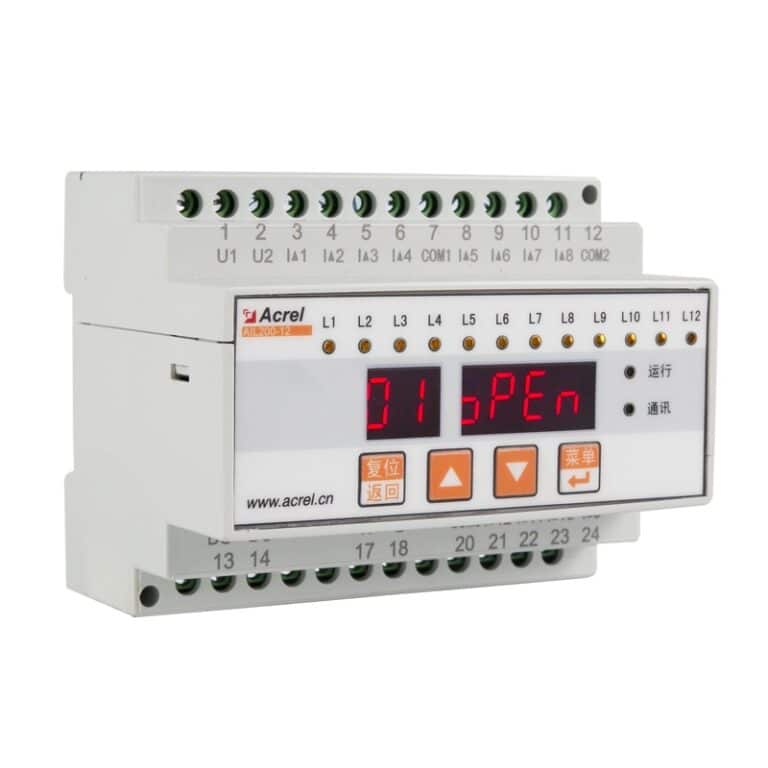

Overview
The AIL200-12 insulation fault locator, together with the AIM-T500L insulation monitor and ASG200 test signal generator, forms a complete insulation fault location system. It is designed for industrial unearthed AC systems (IT systems) in environments such as mines, glassworks, electric furnaces, metallurgical plants, chemical plants, explosion-hazard areas, computer centres, and emergency power supplies. The device monitors insulation faults and precisely locates the faulty branch.
Highlight
Multi-circuit Fault Location
- 12 independent branches
- AKH-0.66L CTs compatible
- Unused circuits disable
Fast Response & High Sensitivity
- Response time <20s
- Sensitivity >1mA
- Self-test function
Wide System Voltage
- AC 0~690V
- DC 0~800V
- Single-phase 220V
Communication & Output
- CAN interface (H/L)
- Relay alarm output
- LED indicators
Function
| Multi-circuit Fault Location | Supports up to 12 independent branches with AKH-0.66L series residual current transformers. Unused circuits can be disabled via the LED panel. |
| CAN Communication Interface | Built-in CAN interface (H, L) for real-time data exchange with AIM-T500L and ASG200, ensuring coordinated fault location. Long-distance communication supported with shielded twisted pair and optional 120Ω termination resistor. |
| Relay Alarm Output | Provides a relay output (D01+, D01-) for alarm signaling when an insulation fault is detected. |
| Self-test Function | Press the self-test button to verify device status – all LEDs light up and relay closes for 2 seconds, then result is displayed. |
| Easy Installation | Compact design, terminals for up to 12 CTs (no polarity), and simple wiring. |
Specification
| Parameter | Value |
| Model | AIL200-12 |
| Auxiliary Power | AC85~265V, <5W |
| Monitored System Voltage | Single-phase AC 220V, Three-phase AC 0~690V, DC 0~800V |
| Fault Location Response Time | <20s |
| Response Sensitivity | >1mA |
| Current Transformers | AKH-0.66L series |
| Output | Relay output (alarm) |
| Operating Temperature | -20°C ~ +60°C |
| Communication Interface | CAN (H, L) |
| Number of Circuits | Up to 12 |
| Mounting | Panel mounting (terminals) |
Show More
FAQ
Check the auxiliary power wiring (AC85~265V) and terminals. Use the self-test button to verify device functionality.
Verify CAN bus connections between AIM-T500L, ASG200, and AIL200-12. Ensure the communication LEDs flash during location. Check for proper termination if long distance.
Summary
The AIL200-12 insulation fault locator is a reliable and precise device for industrial IT systems. With up to 12 monitoring circuits, fast response (<20s), and high sensitivity (>1mA), it ensures quick identification of faulty branches. Its wide voltage range, CAN communication, and easy integration with AIM-T500L and ASG200 make it an ideal choice for critical power applications.
