Overview

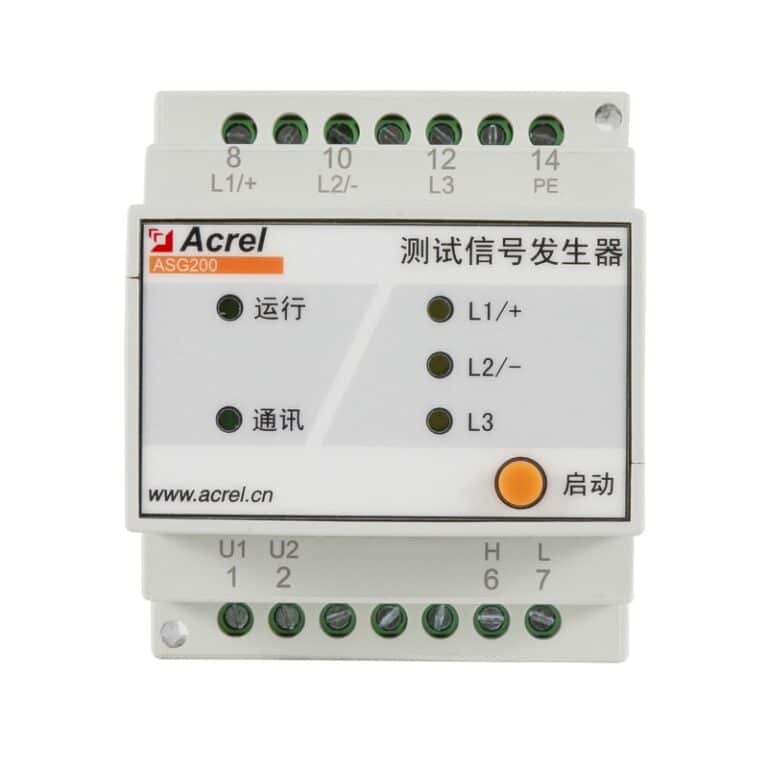

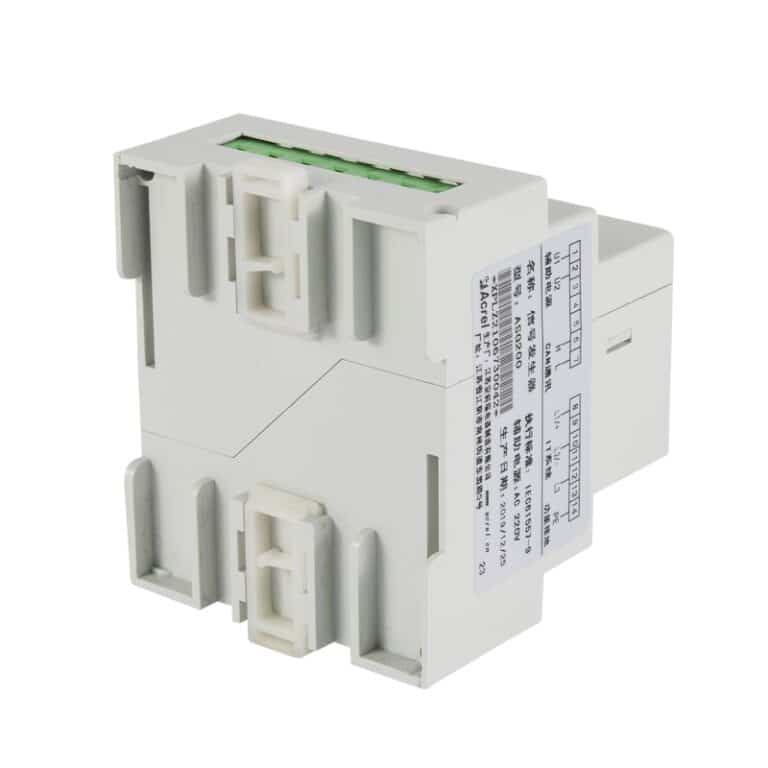

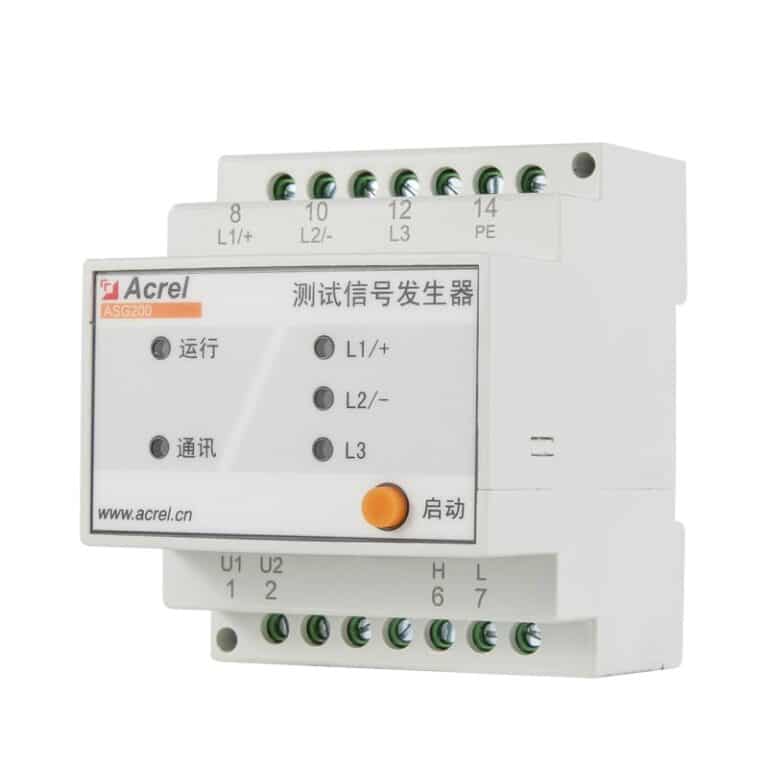

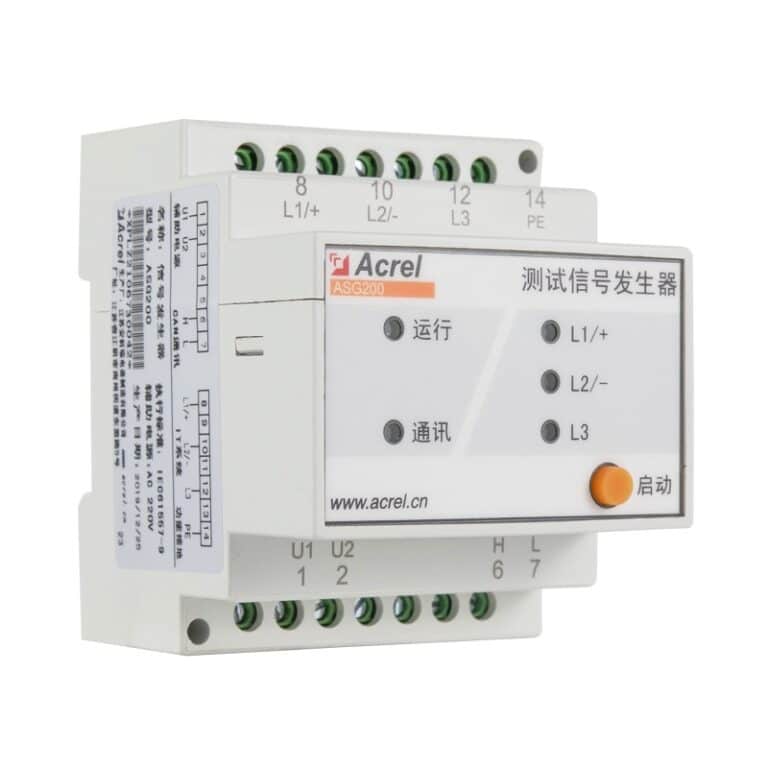

The ASG200 test signal generator is an essential component of the insulation fault location system, working with the AIM-T500L insulation monitor and AIL200-12 fault locator. It is designed for industrial unearthed AC systems (IT systems) such as mines, glassworks, chemical plants, etc., to inject locating signals for precise fault branch identification.
Highlight
Locating Signal
- 20V locating voltage
- 5Hz signal frequency
- <20mA locating current
- Response <5s
CAN Communication
- CAN interface
- Custom protocol
- Connects AIM/AIL
- Real-time data exchange
System Compatibility
- Single-phase AC 220V
- Three-phase AC 0~690V
- DC 0~800V
- Wide voltage range
Easy Installation
- DIN 35mm rail
- AC85~265V power
- <7W consumption
- -20~+60℃ operation
Function
| Locating Signal Injection | Inject a 20V/5Hz low-voltage signal into the IT system when an insulation fault occurs. The signal is used by branch locators to identify the faulty branch. |
| CAN Communication Interface | Built-in CAN interface with custom protocol for real time data exchange with AIM-T500L and AIL200-12 devices, ensuring accurate fault location coordination. |
| Wide System Voltage Compatibility | Applicable to single-phase AC 220V, three-phase AC 0~690V, and DC 0~800V systems, covering most industrial IT power networks. |
| DIN Rail Mounting | Compact design with standard 35mm DIN rail installation, easy to integrate into existing switchgear panels |
Specification
| Parameter | Value |
| Model | ASG200 |
| Auxiliary Power | AC85~265V |
| Power Consumption | <7W |
| Monitored System Voltage | Single-phase AC 220V, Three-phase AC 0~690V, DC 0~800V |
| Fault Location Response | <5s |
| Locating Voltage | 20V / 5Hz |
| Locating Current | <20mA |
| Operating Temperature | -20°C ~ +60°C |
| Communication Interface | CAN (custom protocol) |
| Mounting | DIN 35mm rail |
Show More
FAQ
Connect L1/+ and L2/- to the system lines (for single-phase AC or DC, L1/+ to positive, L2/- to negative; for three-phase, also connect L3). PE must be connected to the earth terminal block.
Check if the auxiliary power wiring matches the diagram and measure the voltage (AC85~265V). If voltage is correct, press the selftest button to verify the device status.
Verify CAN bus connections between AIM-T500L, ASG200, and AIL200-12. Ensure the wiring is correct and terminals are tight. Check if the communication LEDs flash during location.
For long distances, use shielded twisted pair (≥1.0mm²) and add a 120Ω termination resistor at both ends of the bus.
Summary
The ASG200 test signal generator is a compact and reliable device dedicated to insulation fault location in industrial IT systems. By injecting a defined 20V/5Hz signal, it works seamlessly with AIM-T500L and AIL200-12 to pinpoint faulty branches in less than 5 seconds. Its wide system voltage range, CAN communication, and easy DIN rail mounting make it a versatile choice for mines, chemical plants, data centres, and other critical power applications.
