Looking for Wireless Switchgear Temperature Monitoring?
If you are searching for:
- switchgear temperature monitoring
- wireless switchgear temperature sensor
- wireless temperature monitoring for electrical cabinets
- MV switchgear temperature monitoring
- medium voltage switchgear temperature sensor
- electrical contact temperature monitoring
- busbar temperature monitoring
- circuit breaker contact temperature monitoring
The Acrel ATE400 + ATC600-C solution is designed for monitoring temperature at electrical connection points inside switchgear.
ATE400 can be installed at electrical joints such as breaker contacts, busbars and cable connections, while ATC600-C receives the wireless temperature data and provides RS485 communication to the upper-level device or monitoring system.
You may need this solution if:
- You need temperature monitoring without running signal cables from every measuring point.
- You need to monitor multiple switchgear cabinets from a centralized device.
- You need temperature data available on a local display or monitoring system.
- You need a sensor suitable for breaker contacts, busbars or cable connections.

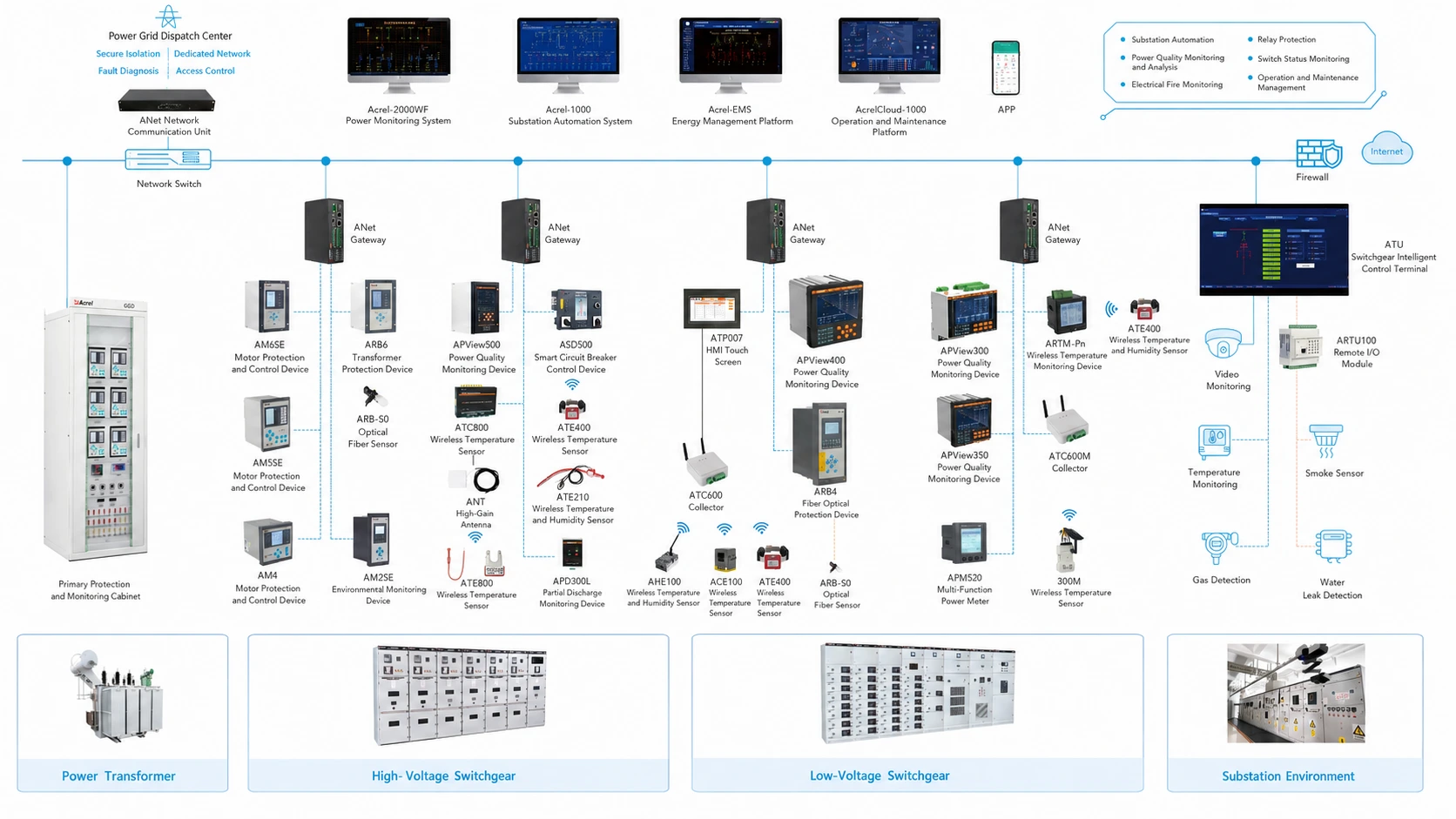

Solution Architecture
Electrical Connection → ATE400 → ATC600-C → Display / Monitoring System
This architecture is particularly suitable when multiple switchgear cabinets require centralized temperature monitoring.
The uploaded project materials show applications involving high-voltage switchgear breaker contacts, busbar connections and cable connections, with wireless temperature data collected and uploaded to power monitoring systems.
Local Temperature Display
ATE400 → ATC600-C → Display Device
For projects that mainly require local temperature viewing and alarm indication.
Centralized Monitoring
ATE400 → ATC600-C → Gateway → Monitoring System
For projects where temperature data needs to be integrated into an existing power monitoring system.
Larger Switchgear System
Multiple ATE400 Sensors → Multiple ATC600-C / ATC600-Z → Monitoring System
For larger switchgear installations where the wireless network needs to be expanded.
The project materials specifically document ATC600-Z as a LoRa relay device, with relay distance stated as up to 1000 m in open areas.
Why Monitor Electrical Connection Temperature?
Electrical connection points inside switchgear can be important temperature monitoring points, including:
- Circuit breaker contacts
- Busbar connections
- Cable connections
- Busbar-to-cable joints
The Acrel solution focuses on direct temperature measurement at these electrical connection points, rather than simply monitoring the ambient temperature inside the cabinet.
This allows temperature data from multiple measuring points to be collected and presented through a centralized architecture.
Product Matching

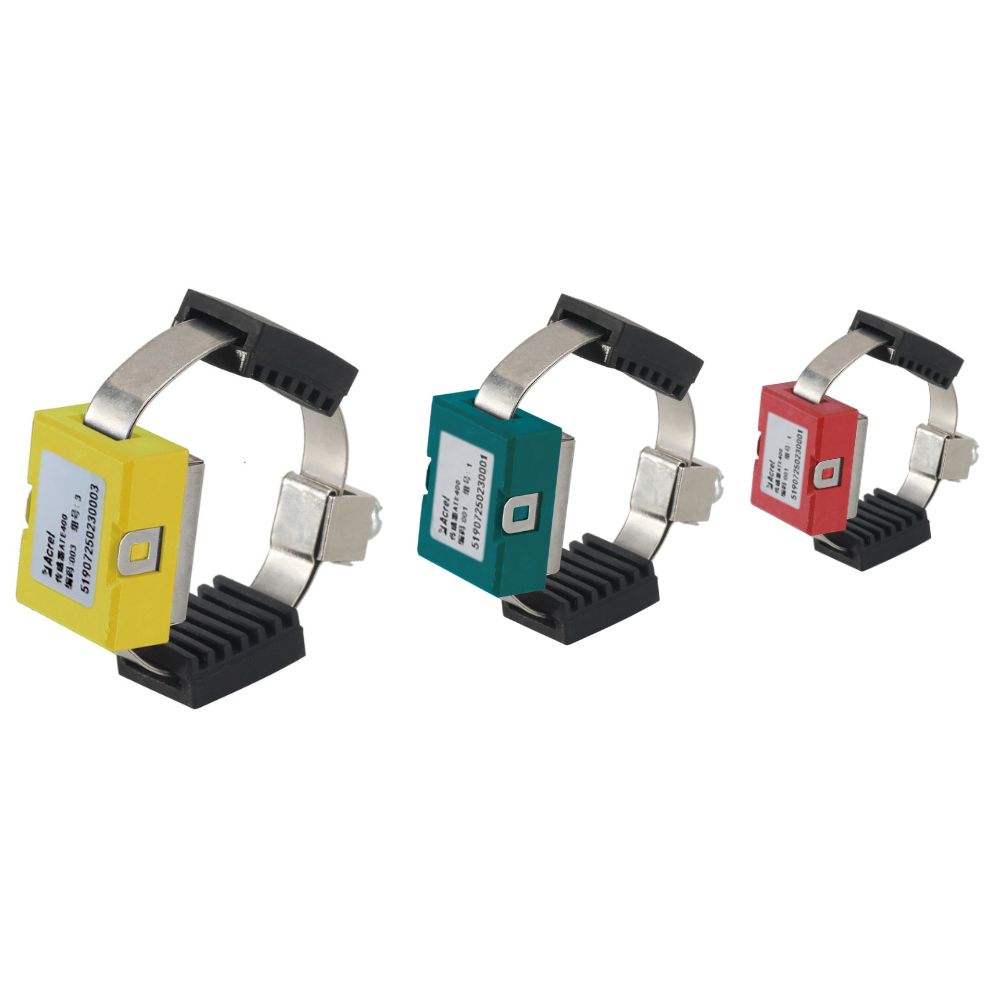

01. ATE400 Wireless Temperature Sensor
Passive Wireless Temp Sensor
Designed for Electrical Connection Points
Real time Temperature monitoring:
- Medium-voltage switchgear
- Circuit breaker contacts
- Busbar connections
- Cable connections
- Low-voltage switchgear
- Copper busbars
- Cable connections
It uses CT-powered energy harvesting, with a specified starting current of ≥5 A, so no separate battery.
Prevent Overheating
→ Early warning
→ Reduced overheating risk
→ Predictive maintenance
Certificate: CE RED
Power Supply: CT-powered
Starting Current: ≥5 A
Maximum Working Current: ≤5000 A
Temperature Range: -50~125℃
Accuracy: ±1°C
Sampling Frequency: 15s
Transmission Frequency: 15s
Communication Distance: Up to 150 m in open area
Installation: Alloy-chip fixing

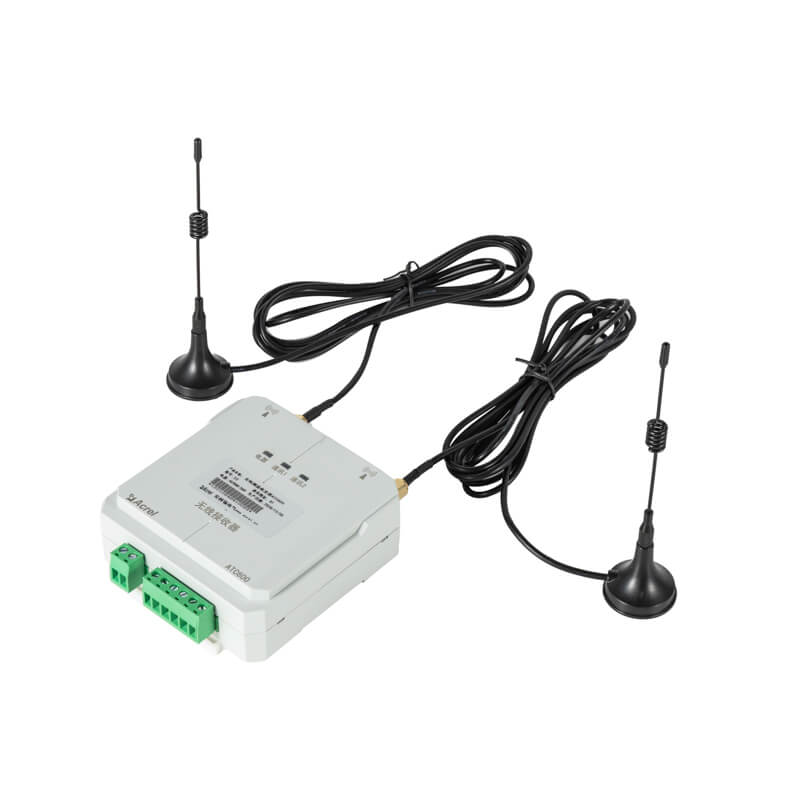

02. ATC600-C Wireless Receiver
ATC600-C receives wireless temperature data from ATE400 sensors and provides an RS485 interface for connection to the upper-level system.
AC 85–265 V / DC 100–300 V power supply
DC 12–48 V power supply
35 mm DIN-rail installation
Centralized Collection for Multiple Temperature Sensors
One ATC600-C can receive up to 240 ATE400 sensors.
This simplifies the communication architecture for multi-cabinet applications.
RS485 communication
Up to 240 ATE400 sensors
Data reception from ATC600-Z relay devices

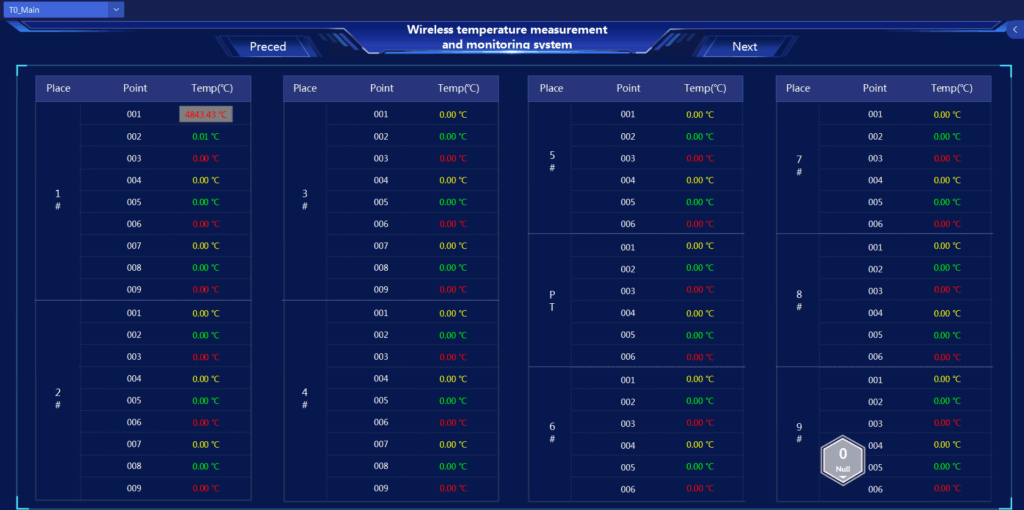

03. Local Display
The wireless temperature data can be presented in different ways depending on the project architecture.
ATE400 → ATC600-C → Display Device
Suitable when operators need temperature information locally.
ATU / ATP007 / ATP010 / ASD320 / ASD300 / ASD500 as display-terminal options in the electrical contact temperature monitoring architecture.
up to 240 Sensors
Alarm
Data Logging
Modbus-RTU, Modbus-TCP

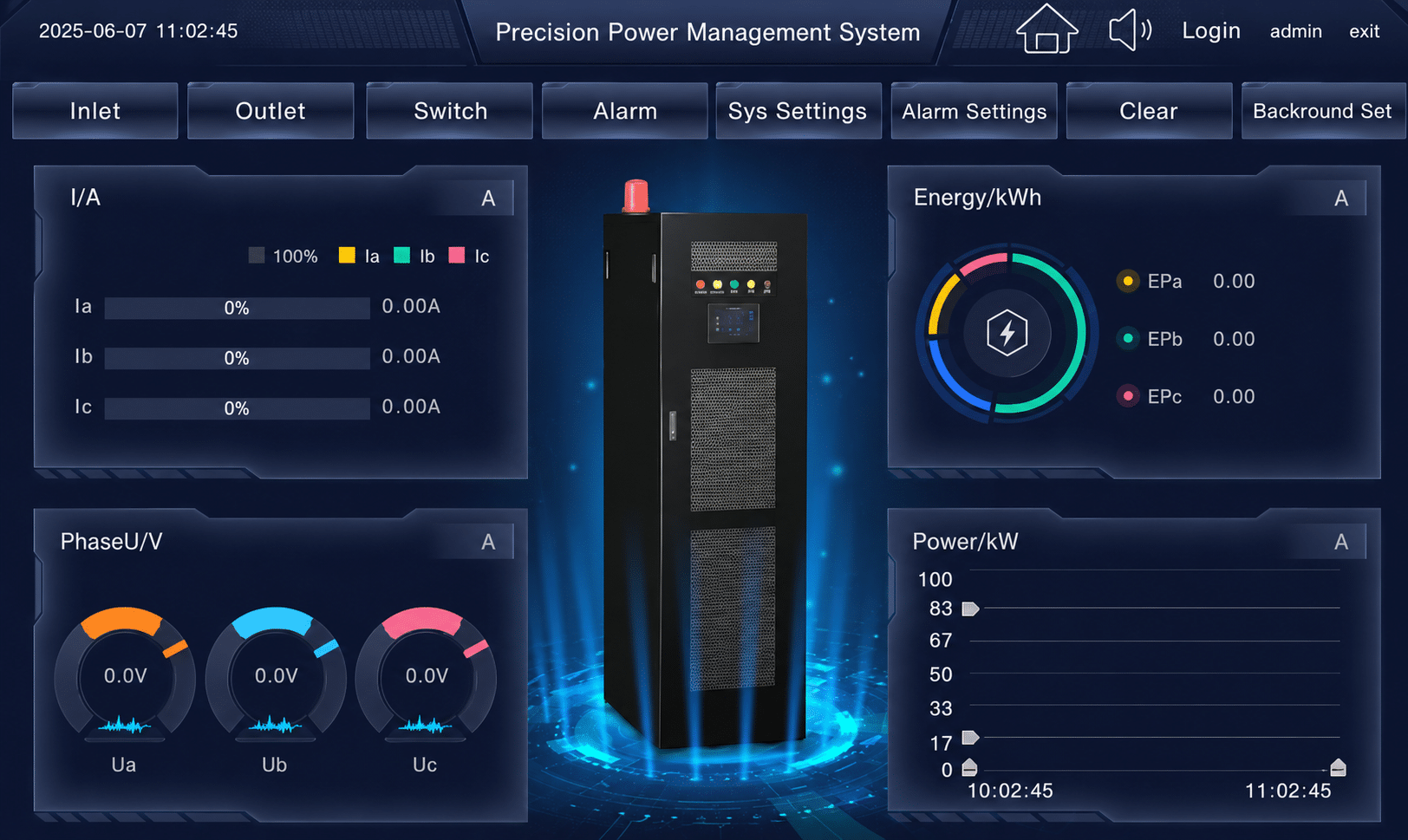

Monitoring System
ATE400 → ATC600-C → RS485 → Monitoring System
wireless temperature sensor data is collected and uploaded to a power monitoring system for centralized monitoring.
Project Case Study

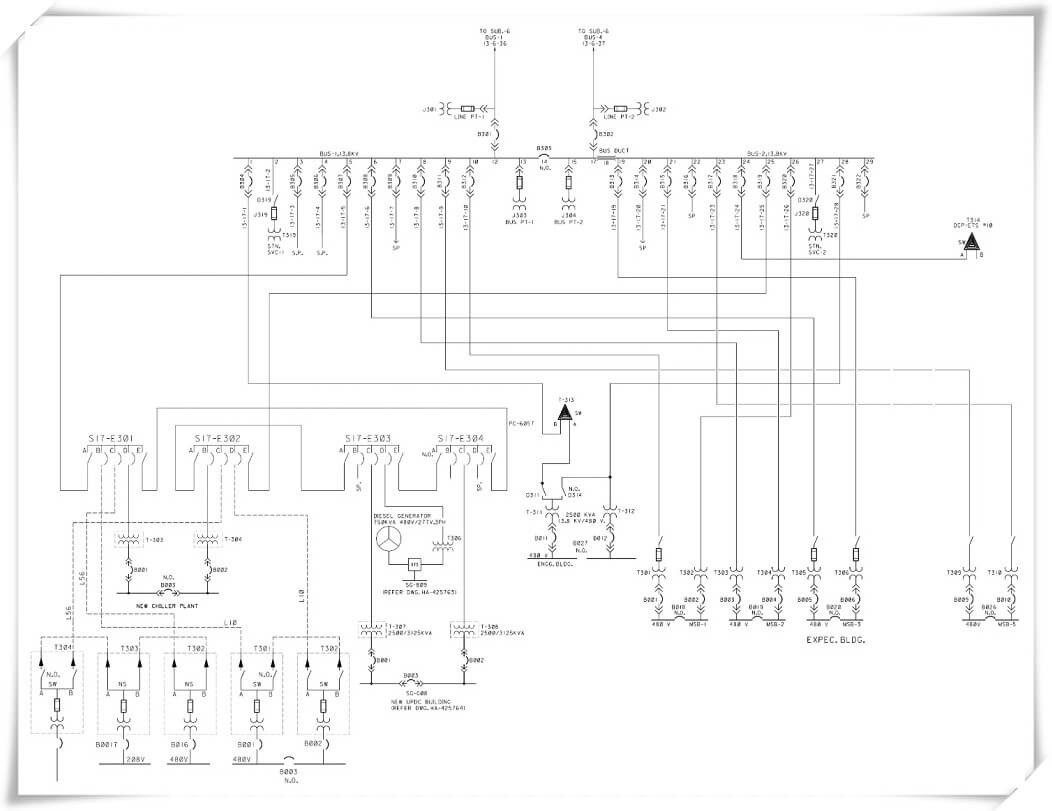

Saudi Arabian Oil Company – Online Condition Monitoring for Critical Switchgear
Project Location: [Saudi Arabia]
Industry: [Oil & Gas]
Equipment: [7 MV Substation = 42 Switchgear]
Monitoring Points: [1104 Temperature + 184 PD + 7 HMI]

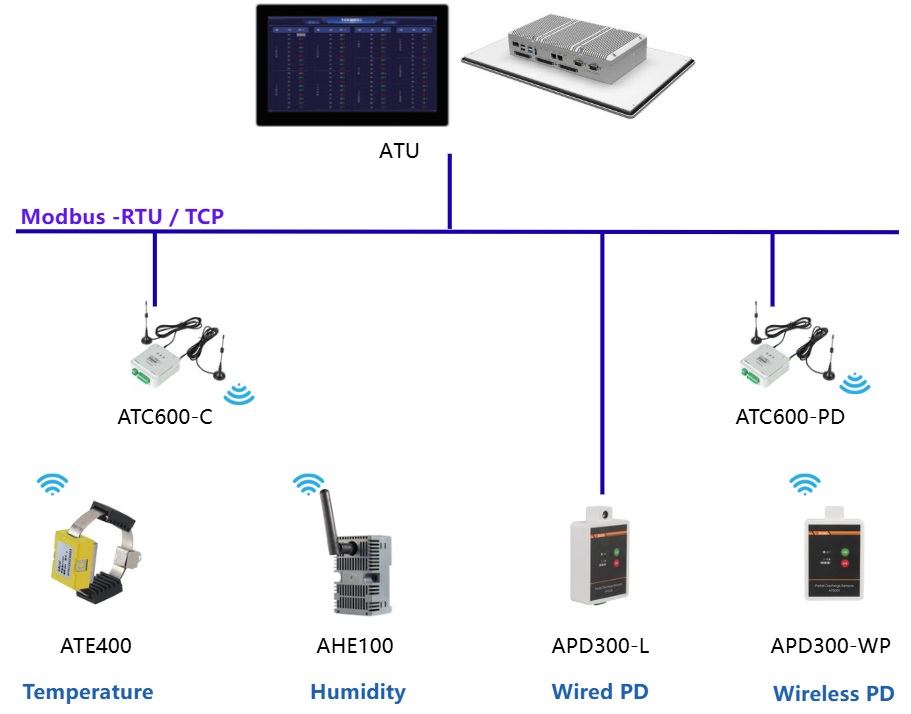

Monitoring Parameters: Temperature / Partial Discharge
Acrel Solution: ATE400 + APD300 + ATU
Customer Challenge
The customer required continuous visibility into critical switchgear conditions and wanted to reduce dependence on periodic manual inspection.
Acrel Solution
Acrel deployed multi-dimensional condition monitoring covering critical connection temperature, partial discharge, and cabinet environmental conditions.
Result
The system provides centralized monitoring and alarm information, helping the maintenance team identify abnormal conditions earlier and make maintenance decisions based on actual equipment condition.
Frequently Asked Questions
ATE400 is a passive wireless temperature sensor designed for monitoring temperature at electrical connection points inside medium- and low-voltage switchgear. It can be installed at locations such as breaker contacts, busbars and cable connections.
The ATE400 wireless temperature monitoring solution can be used for 3–35 kV indoor switchgear, including built-in, handcart, fixed and ring main unit switchgear. It is also applicable to 0.4 kV low-voltage switchgear, including fixed and drawer-type switchgear.
ATE400 is a passive wireless temperature sensor that uses CT-powered energy harvesting. Its specified starting current is ≥5 A, with a maximum working current of ≤5,000 A
According to the supplied technical material, one ATC600-C can receive up to 240 ATE400 sensors. The ATC600-C collects the wireless temperature data and provides RS485 communication for connection to a display device or monitoring system.
Yes. The ATE400 sensors transmit temperature data wirelessly to the ATC600-C receiver. The ATC600-C provides RS485 communication with Modbus-RTU, allowing the collected data to be transmitted to an upper-level monitoring system
The configuration mainly depends on your switchgear type, number of cabinets, temperature measuring points, installation locations and required data output.
A typical configuration is:
ATE400 → ATC600-C → Display Device / Monitoring System
For a quick recommendation, send us your switchgear voltage, number of cabinets and required temperature points. We can help determine the suitable sensor and receiver configuration.
Get a Switchgear Wireless Temperature Monitoring Solution
ATE400 + ATC600-C + Display / Monitoring System
Designed for temperature monitoring of electrical connection points in MV and LV switchgear.
Tell us your cabinet quantity and temperature points.
We can help you determine:
✓ SLD
✓ Sensor quantity
✓ ATC600-C receiver quantity
✓ Display / monitoring option
✓ Wireless configuration
✓ Installation suitability
