Overview

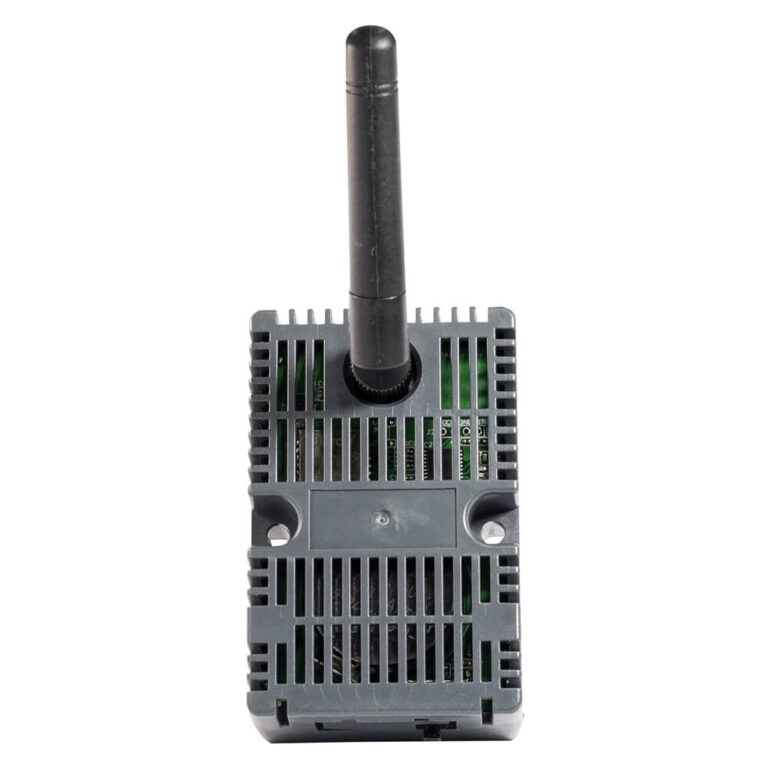

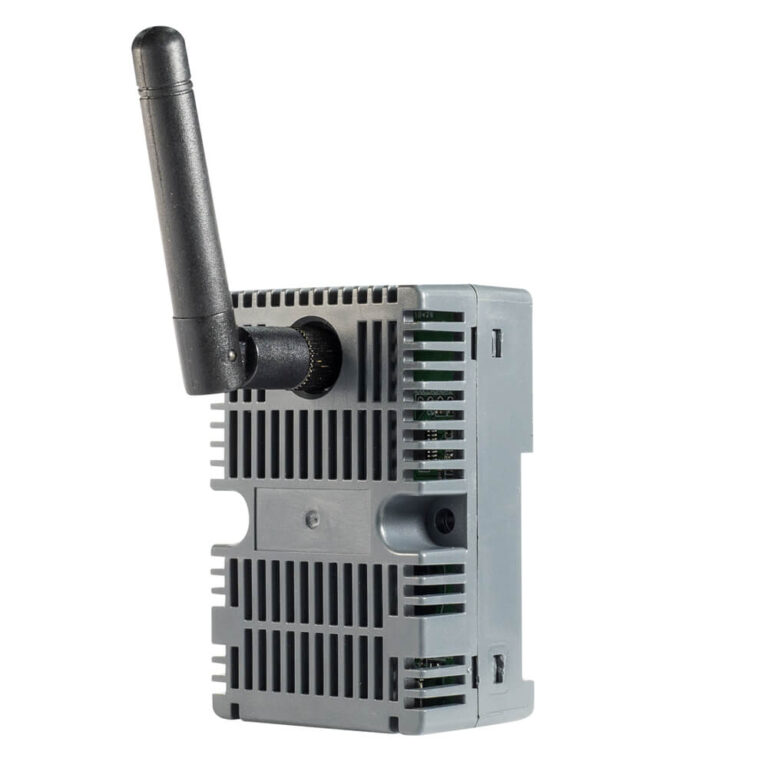

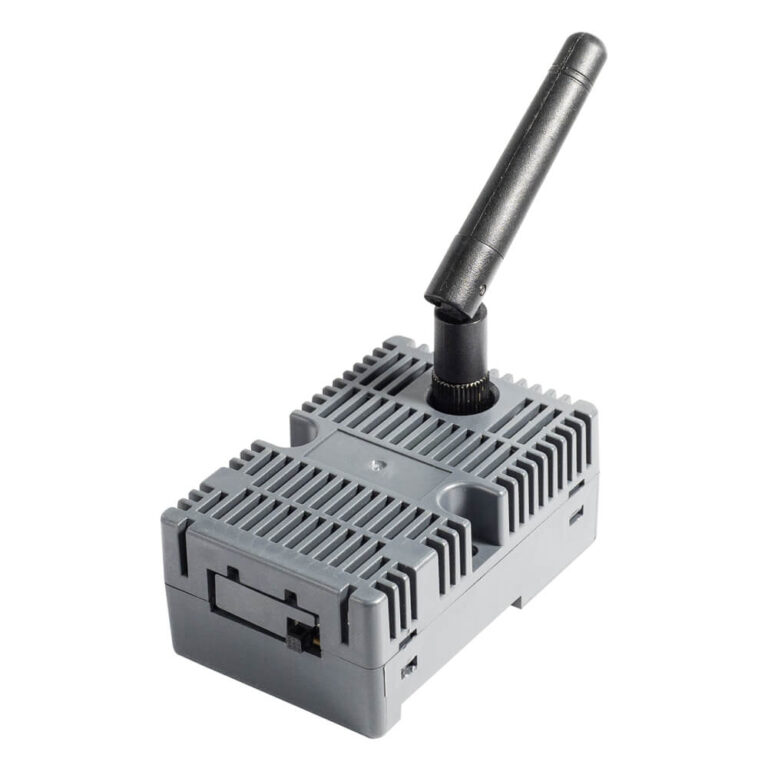

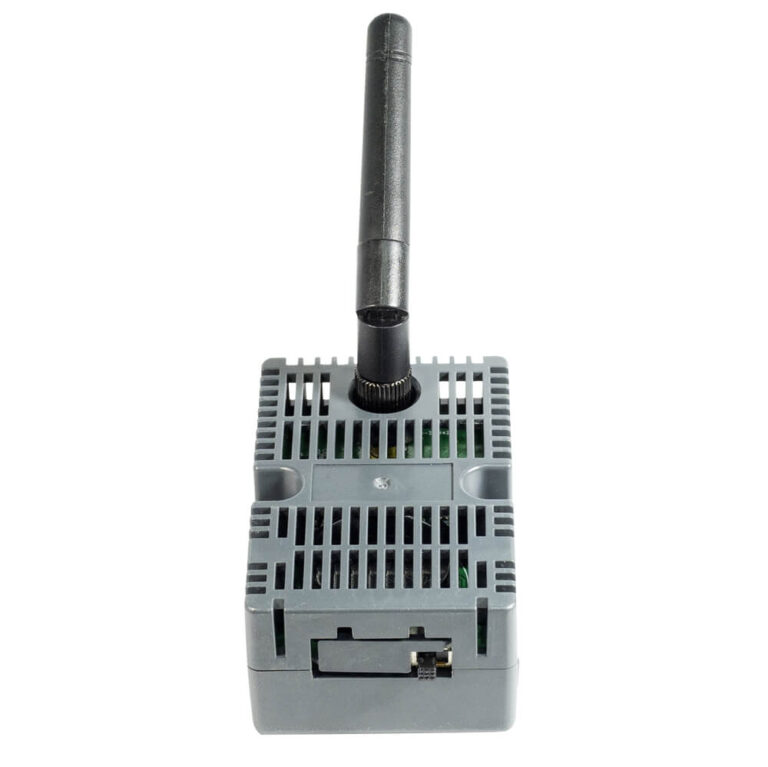

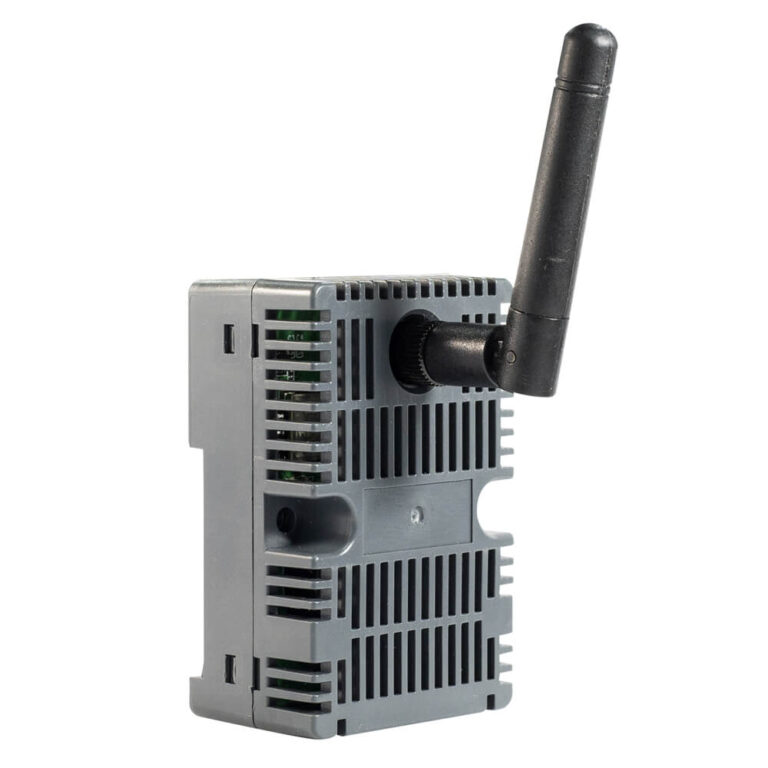

The AHE100 wireless temperature and humidity sensor is designed for monitoring the internal environment of medium and high voltage switchgear, terminal boxes, ring main units, transformer boxes, and distribution rooms. It features a dedicated enclosure with good ventilation and a delicate appearance, protecting internal components and extending service life.
Highlight
Dual Power Supply
- Internal battery CR2450, 3 years life
- DC 12-48V external power
- Battery replaceable
Smart Reporting
- Battery mode: 5min interval
- DC mode: 25s interval
- Instant report on significant change
High Accuracy
- Temp accuracy ±1℃
- Humidity accuracy ±3%RH
- High reliability
Long Range Wireless
- Battery: 500m (open)
- DC: 1000m (open)
- Works with ATC600-C receiver
Focus Areas
Function
- Real-time temperature and humidity monitoring
- Dual power supply: battery (CR2450, 3 years) or DC 12-48V
- Wireless data transmission via 470MHz (compatible with ATC600‑C)
- Smart reporting: 5min (battery) / 25s (DC), instant on significant change
- DIN rail mounting for easy installation
- LED indicator for transmission status
Specification
| Parameter | Value |
| Temperature Measurement Range | -30℃ ~ +85℃ |
| Humidity Measurement Range | 0 ~ 100%RH |
| Temperature Accuracy | ±1℃ |
| Humidity Accuracy | ±3%RH |
| Acquisition Frequency | 25s |
| Transmitting Frequency (Battery) | 5min (instant report if ΔT≥2℃ or ΔRH≥5% within 5min) |
| Transmitting Frequency (DC 12-48V) | 25s |
| Power Supply | Battery CR2450 (3 years @25℃) or DC 12-48V |
| Communication Distance (Battery) | 500m (open area) |
| Communication Distance (DC) | 1000m (open area) |
| Installation | DIN35mm rail |
| Operating Environment | -30℃~+85℃, ≤95%RH (non-condensing) |
Show More
Optional Accessories
Replacement battery: CR2450 lithium battery
Wireless coordinator: ATC600‑C (supports up to 240 sensors)
Mounting accessories: none required (DIN rail)
FAQ
Battery life is approximately 3 years at 25℃. It is replaceable by opening the sensor cover (model CR2450).
Yes, the AHE100 is designed for medium and high voltage switchgear internal monitoring. Please ensure proper installation.
One ATC600-C coordinator can receive data from up to 240 AHE100 sensors.
The LED flashes each time data is transmitted. You can also check received data on the monitoring system (e.g., ATP007 touchscreen).
Summary
The AHE100 wireless temperature and humidity sensor provides reliable and cost effective monitoring for switchgear and distribution rooms. With dual power options, intelligent reporting, and long range wireless communication, it ensures timely detection of abnormal conditions, reducing maintenance costs and improving equipment safety. Paired with the ATC600 C coordinator, it forms a complete environmental monitoring solution.
