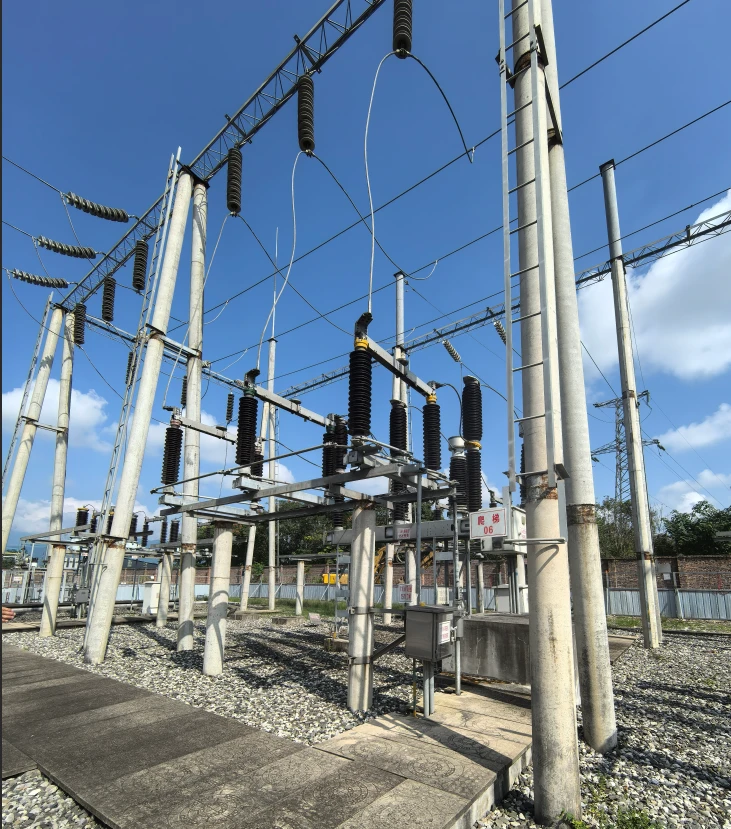

What Is a Smart Substation Monitoring Solution?
A smart substation monitoring solution is an intelligent electrical monitoring and automation system for customer substations up to 110 kV. As an important part of digital substation solutions, it enables intelligent operation, remote monitoring and predictive maintenance for modern power distribution systems. It covers 110 kV, 66 kV and 35 kV substations, 10 kV substations and 0.4 kV distribution rooms. The system combines protection relays, arc flash protection systems, arc flash protection relays, wireless temperature sensors, busbar temperature sensors, switchgear temperature sensors, partial discharge detectors, partial discharge sensors, PD sensors, power quality analyzers, gateways, HMI and EMS / monitoring software. For customer substation monitoring, substation automation system projects and MV LV distribution monitoring, Acrel Arabia provides related smart power monitoring solutions through Acrel.
Why Smart Substation Monitoring Matters in Modern Power Distribution
Industry Trends Driving Demand
Middle East electricity demand is rising because of AI data centers, smart cities, industrial electrification, renewable energy projects, commercial buildings and infrastructure expansion. These facilities require stable power supply, fast fault response and reliable electrical asset management. As electrical loads grow, substations must operate with better visibility, stronger protection and more accurate data.
Operational Pressure on Facilities
Many facilities still rely on scheduled inspection, manual meter reading and local alarm checks. This creates gaps between equipment failure signs and maintenance response. Hidden hot spots, insulation defects, overloads, harmonics and power quality events may develop before operators notice them. In high-load environments such as data centers, oil and gas facilities, hospitals and manufacturing plants, even a short outage can cause production loss, safety risk or service interruption.
Business Impact
Smart substation monitoring matters because it turns electrical operation from reactive maintenance into data-driven management. With continuous monitoring, alarms and reports, facility teams can identify abnormal conditions earlier, reduce emergency repairs, extend equipment life and improve energy efficiency. For B2B customers, this supports both operational reliability and digital transformation.
Common Challenges Without a Smart Substation Monitoring Solution
- Manual inspection cannot detect real-time electrical risks.
- Hidden hot spots may develop in switchgear contacts, busbars and cable joints.
- Partial discharge can appear before visible insulation failure.
- Arc flash faults may cause equipment damage and safety risks.
- Power quality events affect sensitive loads such as data centers and hospitals.
- Separate protection, metering and environmental systems create information silos.
- No historical trend data limits predictive maintenance and fault analysis.
These challenges can be effectively addressed through a modern Smart Substation Monitoring Solution that integrates sensing, protection, communication, alarms and software analytics.
Why a Smart Substation Monitoring Solution Works
Continuous Monitoring and Early Warning
A smart substation monitoring solution works. It regularly gathers information from key electrical assets. Sensors and advanced devices monitor temperature. They also track partial discharge. They follow electrical parameters, power quality, protection events, and equipment status. This approach replaces waiting for manual inspection. Early warning alarms help maintenance teams take action. They address problems before small abnormalities develop into serious failures.
Predictive Maintenance
Using real-time information along with historical data, predictive maintenance is achieved. Temperature variations, loading trends, alarm logs, and equipment performance history are all available to operators, enabling them to determine which equipment is old, which circuits are overloaded, and which faults recur.
Open Communication and System Integration
The solution also works because it can be integrated into wider facility management systems. Communication protocols such as Modbus RTU, Modbus TCP, Ethernet, MQTT, BACnet or IEC protocols can be selected according to project needs. Data can be shared with SCADA, EMS, BMS, DCS, PLC or cloud platforms, turning customer substation monitoring into part of a complete digital operation system.
Scalable Deployment
The same architecture can support small distribution rooms, 10 kV substations, 35 kV industrial substations and larger MV/LV power distribution networks. This makes the solution practical for both retrofit projects and new smart substation construction.

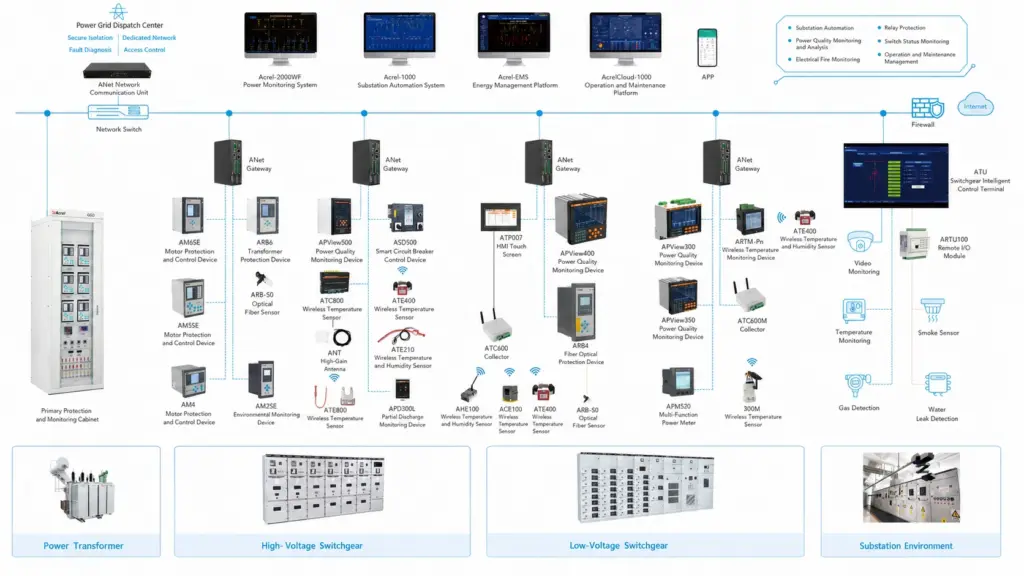

Smart Substation Monitoring Solution Architecture
Field Sensing Layer
The architecture of the substation monitoring system starts with MV/LV switchgear, transformers, busbars, cable joints and distribution rooms. Wireless temperature sensors, busbar temperature sensors and switchgear temperature sensors, together with PD sensors, arc sensors and power quality analyzers, collect field data for customer substation monitoring and switchgear condition monitoring.
Protection and Control Layer
Protection relays, arc flash protection devices and arc flash protection relays, together with switchgear intelligent control devices, support feeder protection, transformer protection, fast tripping, local status display and fault location.
Communication Layer
RS485, Ethernet, LoRa, Modbus RTU, Modbus TCP, IEC 61850 and IEC 60870-5-103 / 104 transmit data to gateways, communication management units or HMI.
Monitoring Software Layer
The software layer provides a substation monitoring system, substation automation system, electrical power monitoring system or EMS platform for alarms, trend analysis, event records, remote monitoring, reports and O&M workflows.
Alarm and Maintenance Workflow
Alarms and historical trends help maintenance teams move from reactive inspection to predictive maintenance for MV/LV power distribution monitoring.
Third-Party Integration Workflow
Selected data can be shared with SCADA, BMS, DCS, PLC or cloud platforms so electrical monitoring becomes part of the wider facility operation system.
Key Components of the Smart Substation Monitoring Solution
| Component | Function | Recommended Models |

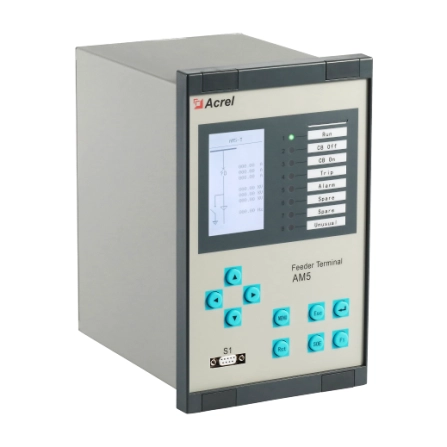

| Microprocessor Protection Relay | Feeder, transformer, bus coupler and motor protection for MV systems. | AM5SE, AM2SE |

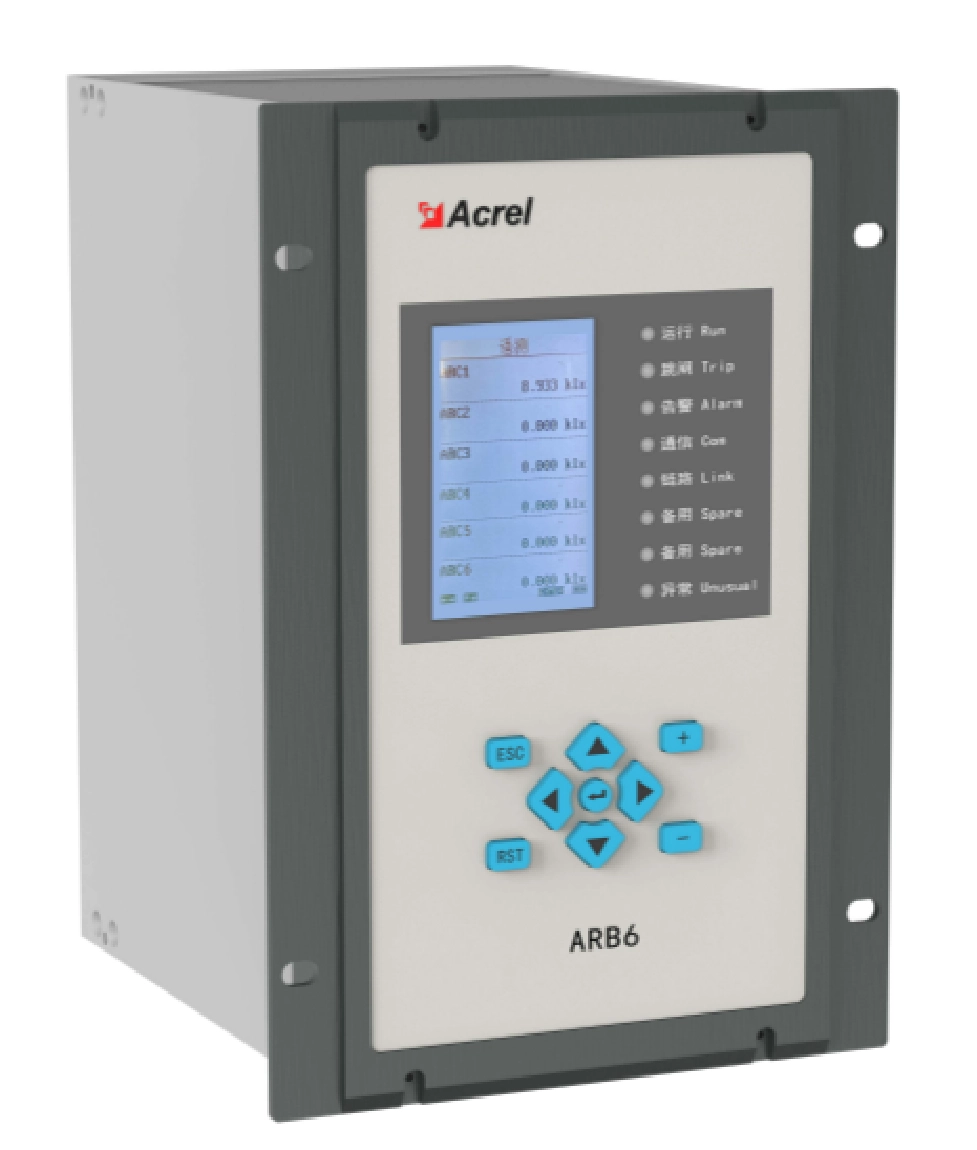

| Arc Flash Protection Relay | The arc flash protection relay detects arc light and current to support fast trip, fault location and electrical safety protection. | ARB6, ARB4, ARB-S |
| Wireless Temperature Sensor | Monitors switchgear contacts, busbar joints and cable joints through wireless temperature sensors, busbar temperature sensors and switchgear temperature sensors for early overheating detection. | ATE400, ATC600, ATP |

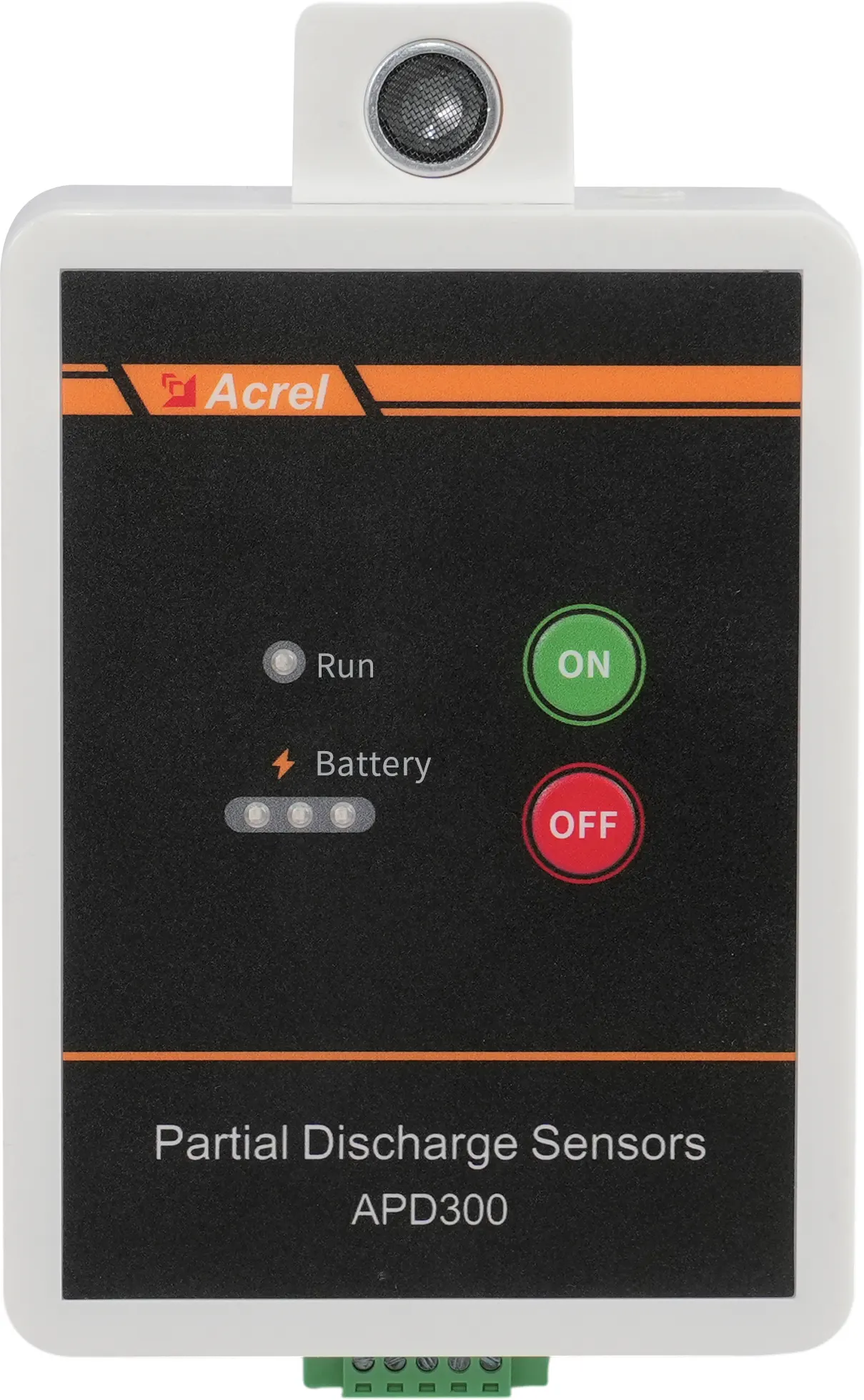

| Partial Discharge Detector | Detects MV insulation risks using UHF / TEV / ultrasonic sensing. | APD300-L, APD300-W, APD300-WP |

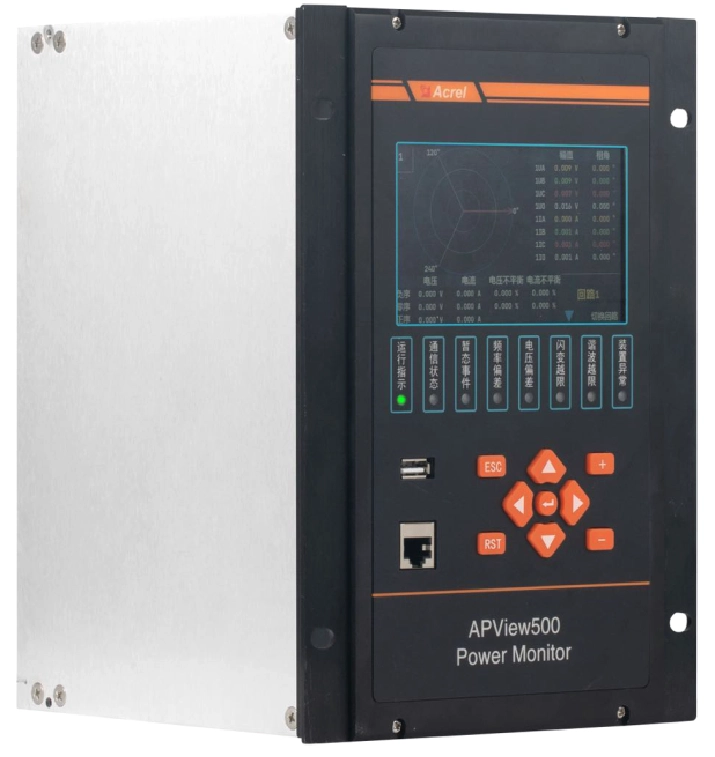

| Power Quality Analyzer | Monitors harmonics, voltage sag, swell, flicker, unbalance and transients. | APView500, APView400, APView350 |

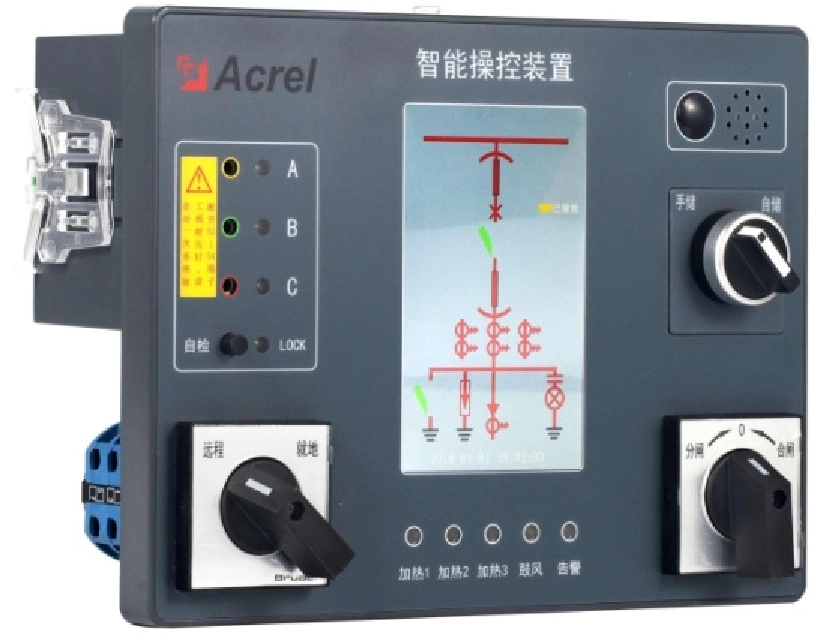

| Switchgear Intelligent Control Device | Displays switch status, temperature, live indication and local control data. | ASD300, ASD320, ASD500 |

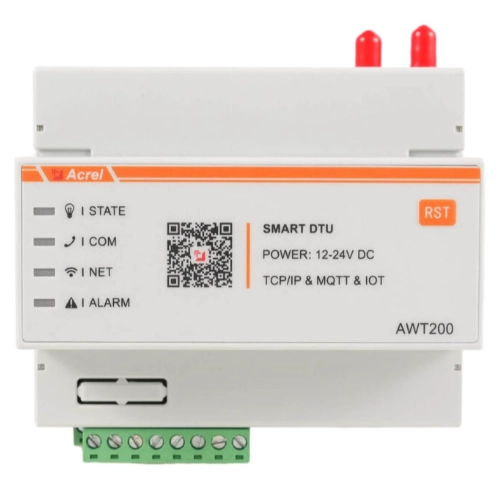

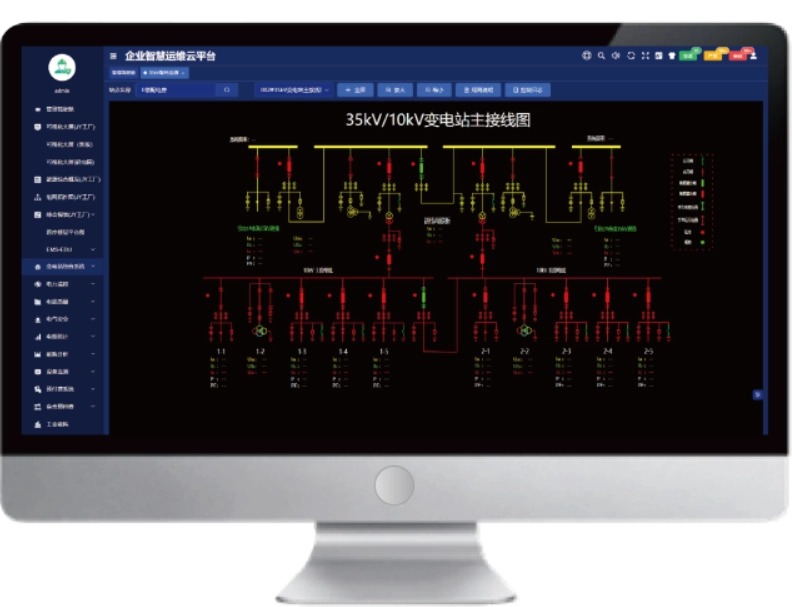

| Communication Gateway / DTU | Collects field device data and uploads it to software or third-party systems. | AWT200, AWT500 |
| Monitoring Software / EMS Platform | Centralized monitoring, alarms, reports, trends and O&M management. | Acrel EMS / EPMS / SAS |
Typical Applications for Smart Substation Monitoring
These applications share the same goal: reliable customer substation monitoring, safer MV LV distribution monitoring and easier integration with an energy management or substation automation system.
AI Data Centers
Focus on uptime, power quality, temperature risks and remote substation visibility.
Petrochemical and Oil & Gas Facilities
Focus on high reliability, arc flash protection and hazardous process continuity.
Smart Manufacturing and Industrial Parks
Focus on multi-building substations, 35 kV / 10 kV distribution and centralized O&M.
Hospitals and Healthcare
Focus on continuous power supply, early electrical fault warning and emergency power reliability.
Airports and Rail Transit
Focus on distributed substations, remote monitoring and fast fault diagnosis.
Renewable Energy and Energy Storage
Focus on grid connection, harmonics, voltage fluctuation and EMS integration.
Project Case Studies

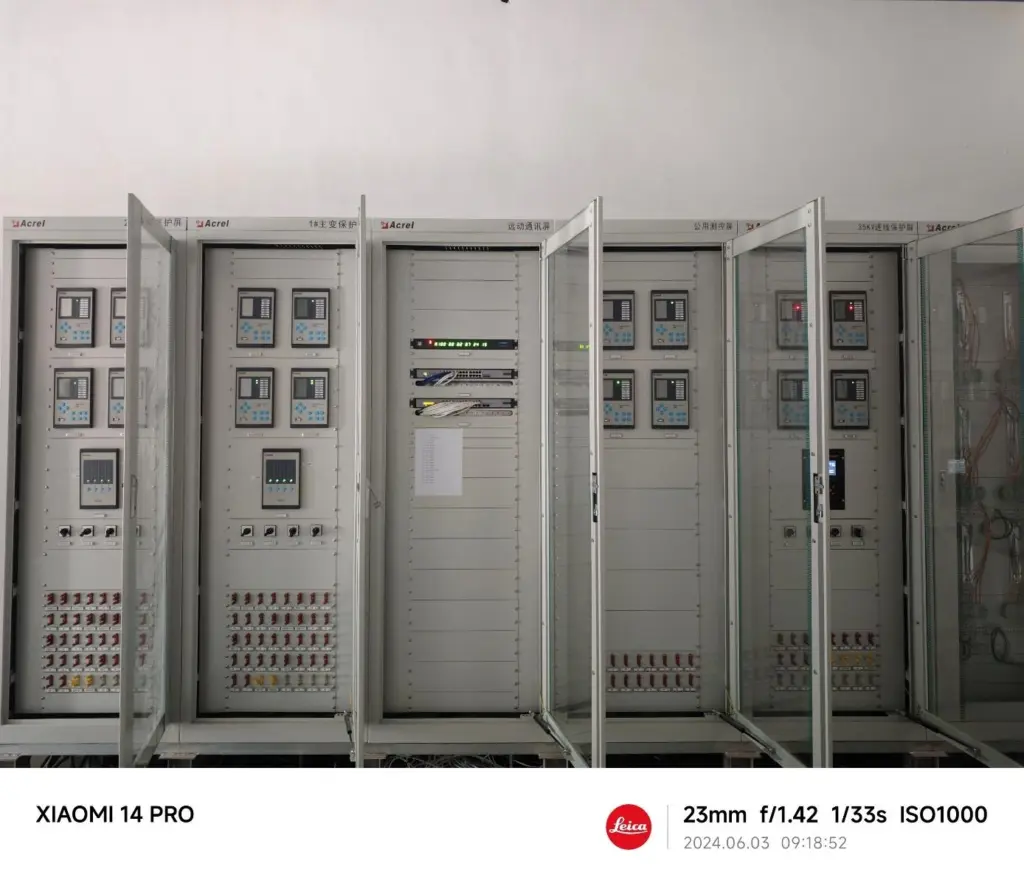

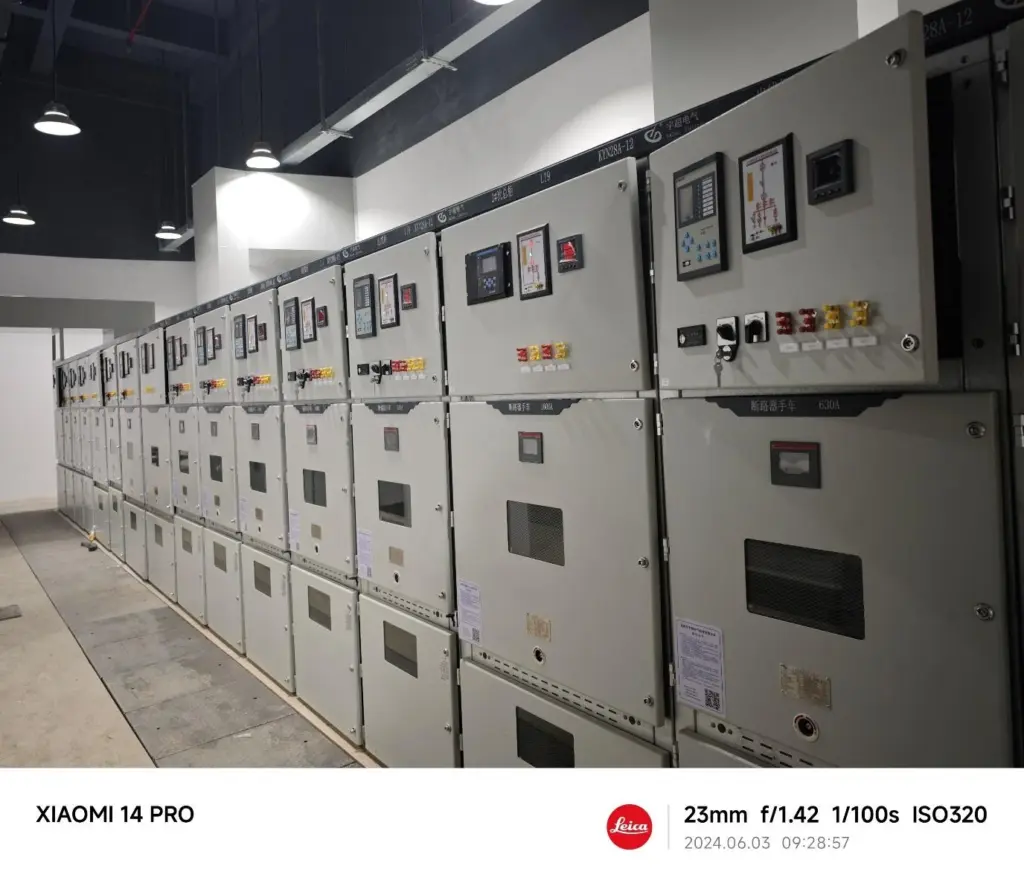

Case Study 1: 35 kV Pharmaceutical Industrial Park Substation
- Project Overview: a pharmaceutical park with 35 kV incoming lines, a 10 kV system and 0.4 kV distribution rooms.
- Customer Challenges: reliable power supply for multiple workshops and distributed loads, plus substation automation and energy efficiency management.
- Acrel Solution: integrated substation automation, protection panels, arc flash protection, wireless temperature monitoring, AM relays, ARB devices, ATE sensors, multifunction meters and EMS.
- Results: centralized monitoring, early warning, improved O&M visibility and safer MV/LV operation. This case shows how one platform can connect power distribution monitoring with energy efficiency management.

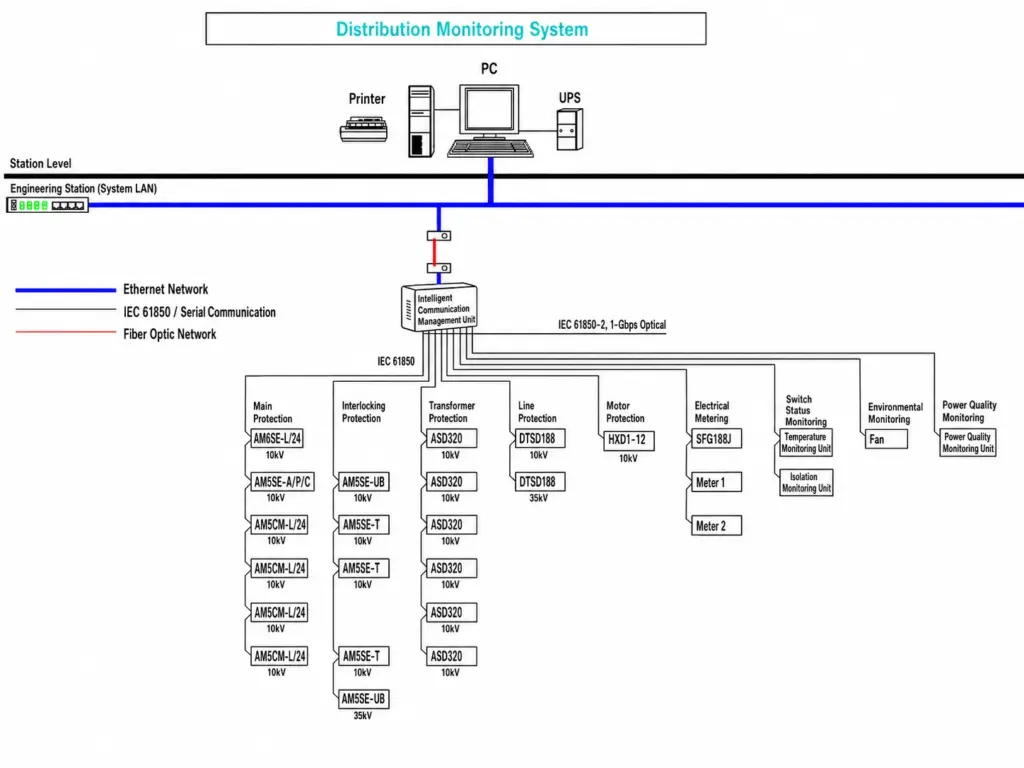

Case Study 2: PetroChina Shunbei Compressor 35 kV Substation
- Project Overview: multiple 35 kV substations for compressor stations with MV and LV distribution.
- Customer Challenges: remote sites, high-load equipment and reliable monitoring for 10 kV and 0.4 kV systems.
- Acrel Solution: main transformer protection panels, 10 kV protection devices, multifunction meters, intelligent control, ATE400 wireless temperature sensors, environmental sensors and data gateways.
- Results: centralized monitoring center, remote data upload, better distribution visibility and faster maintenance response. The design is suitable for distributed industrial substations where onsite inspection is limited.
FAQ About Smart Substation Monitoring Solution
It is a digital monitoring and automation system for MV/LV substation assets.
Sensors and protection devices collect data, gateways transmit it and software displays alarms, trends and reports.
It suits 10 kV, 35 kV, 66 kV and customer substations up to 110 kV.
Yes. It can combine MV protection and condition monitoring with LV metering and temperature monitoring.
Typical points are breaker contacts, busbar joints, cable joints and other heating-prone connections.
Partial discharge monitoring helps identify insulation defects in MV switchgear before they develop into breakdowns or unexpected outages. PD sensors detect partial discharge signals caused by insulation deterioration, allowing operators to evaluate equipment condition and perform predictive maintenance.
Yes. Integration can use Modbus, Ethernet, IEC protocols or project-specific gateways.
Selection depends on voltage level, feeder type, switchgear layout, monitoring points and protocol requirements.
A power quality monitoring system helps detect harmonics, voltage fluctuations, voltage sag, voltage swell and transient events in substations. It helps operators maintain stable power supply and protect sensitive electrical loads.
More Smart Substation Monitoring Resources
- Substation Automation System (SAS)
- Switchgear Condition Monitoring System
- Electrical Power Monitoring System
- Wireless Temperature Monitoring for Switchgear
- Partial Discharge Monitoring for Switchgear
Build a Safer and Smarter Substation Monitoring System
Our smart substation monitoring solution will enhance the safety of customer substations, minimize downtime, detect potential faults early and support predictive maintenance for substations and digital power distribution systems. Please contact Acrel Arabia to design a smart substation monitoring solution for your 10 kV, 35 kV, 66 kV or 110 kV customer substation.
