Overview

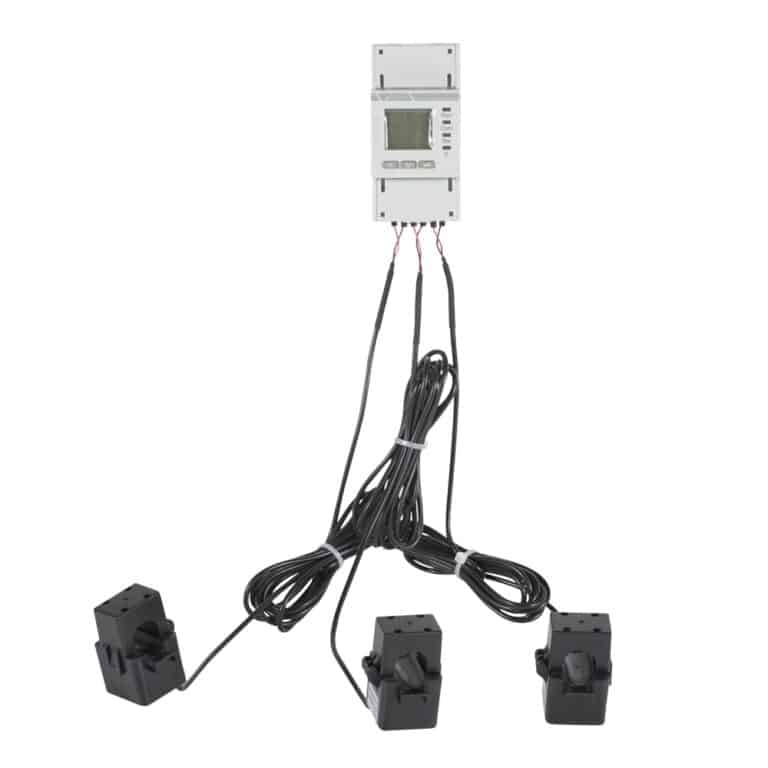

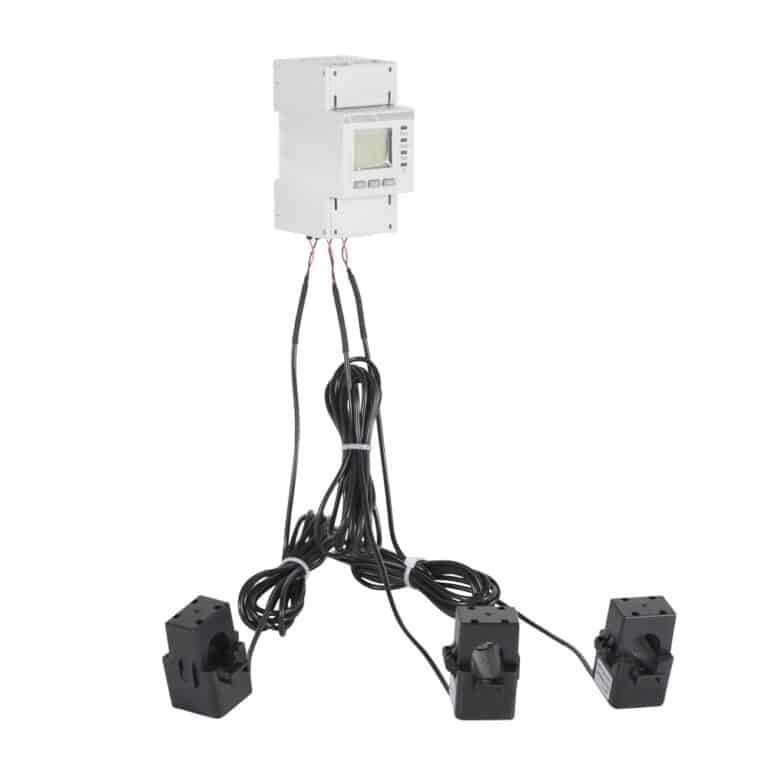

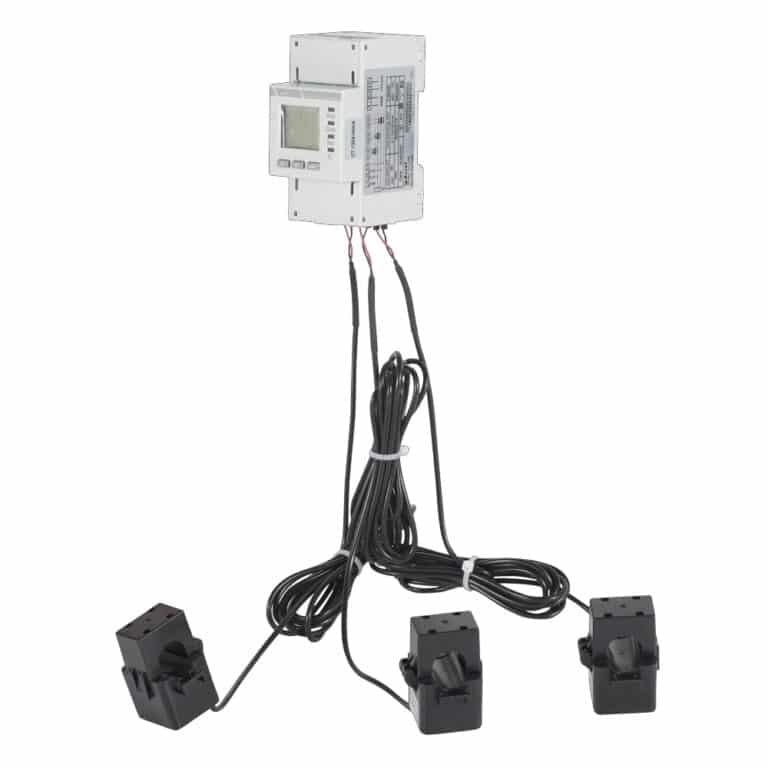

ADL400N-MID is a MID certified three-phase DIN-rail energy meter with external split-core CTs.
Certified to EN 50470-3 (0598/MID/B/24/023) with Class B accuracy and 50ms response.
Designed for EU C&I PV and storage applications.
Highlight
MID Certification
- 2014/32/EU directive
- EN 50470-3 compliant
- MID B+D certified
- Class B active energy
Electrical Parameters
- 3×230/400V rating
- 0.5-10(80)A CT
- 0.5-10(120)A CT
- 50/60 Hz frequency
- 3p4w circuit type
Environment & Protection
- -40℃ to +70℃
- IP51 (in enclosure)
- Class II insulation
- Indoor installation
- 6kV impulse voltage
Outputs & Communication
- RS485 Modbus RTU
- Pulse 500 imp/kWh

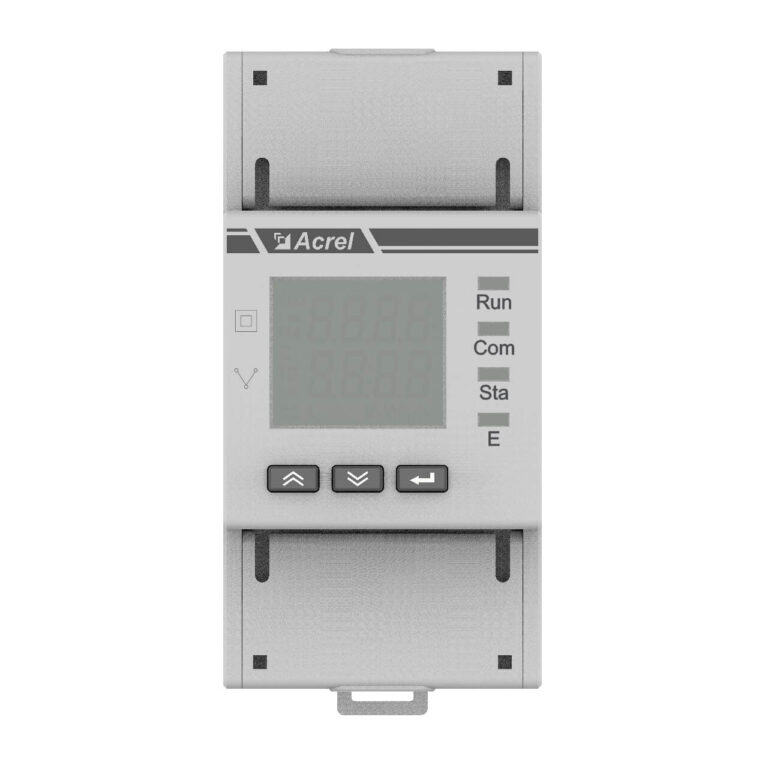

- LCD display

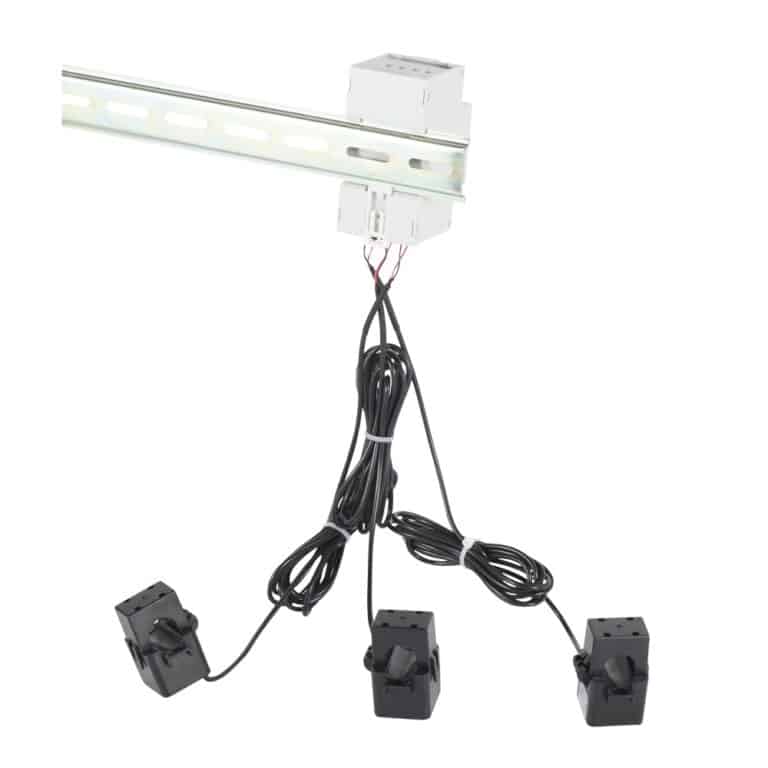

- DIN-rail mounting
- 4-module design
Function
| Measurement | Metering | Extended Functions |
| Phase/Line Voltages (U) | Total Active Energy | RS485 Communication with Modbus-RTU |
| Phase Currents (I) | Forward Active Energy | Field-Programmable Parameters (CT Ratio, Comm. Address, Baud Rate, etc.) |
| Per-phase/Total Active Power (P) | Reverse Active Energy | Active Pulse Output (LED Indication) |
| Per-phase/Total Reactive Power (Q) | Forward Reactive Energy | High/Low-Speed Dual Register Sets for Optimized Data Reading |
| Per-phase/Total Apparent Power (S) | Reverse Reactive Energy | Password Protection Against Unauthorized Changes |
| Per-phase/Total Power Factor (PF) | 4-Quadrant Reactive Energy | Backlight Control |
| Frequency (F) | Per-phase Energy | MID Certified Parameter Protection |
Specification
| Item | Parameter |
| Model Series | ADL400N-MID (3-Phase 4-Wire) |
| Certification | MID B+D certified, Certificate No.: 0598/MID/B/24/023; compliant with EN 50470-3, EN IEC 62052-11, IEC 62052-31 |
| Voltage Rating | 3×230/400V |
| Voltage Range | L-N: 50V ~ 277V; L-L: 90V ~ 480V |
| Current Ratings | External CT Operated: 0.5-10(80)A, 0.5-10(120)A (with split-core CTs) |
| Auxiliary Power | Self-powered from measured line, < 2W |
| Active Energy Accuracy | Class B (per EN 50470-3) |
| Reactive Energy Accuracy | Class 2 |
| Response Speed | ≤100ms (voltage, current, power); ≤1s (energy) |
| Pulse Output | Active optocoupler output, pulse constant: 500 imp/kWh |
| Communication | RS485 with Modbus-RTU protocol |
| Comm. Parameters | Address 1~247, baud rate 1200~38400bps programmable |
| Display | Segmented LCD, programmable via buttons |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| Relative Humidity | ≤95% (non-condensing) |
| Dimensions | Meter: approx. 90mm × 72mm × 65mm (4 modules); CTs: varies by specification |
| Mounting | Meter: 35mm standard DIN rail; CTs: Clamped onto primary cables |
| Protection Grade | IP51 (must be installed in suitable IP rated enclosure) |
| Pollution Degree | 2 |
| Overvoltage Category | CAT III |
| Protection Class | Class II (Double Insulation) |
| Software Version | 2992 V1.07 |
| CRC Checksum | 6CB75091 |
Show More
FAQ
The main difference lies in certification and target market.
ADL400N-MID: MID B+D certified, compliant with EU Directive 2014/32/EU and EN 50470-3, suitable for European market and applications requiring legal metering certification.
ADL400N-CT: Standard version, suitable for markets and applications without MID requirements.
Selection Guide: Choose ADL400N-MID for trade settlement, tenant billing, or other legal metering applications in Europe; choose ADL400N-CT for other scenarios.
MID certification is a mandatory requirement for measuring instruments in the European market, offering the following value:
Legal Compliance: MID-certified meters are mandatory for trade settlement, tenant billing, feed-in energy metering, and similar applications in Europe.
Metering Credibility: Certification ensures accuracy and long-term stability, providing fair and reliable measurement for both parties.
Market Access: MID certification is the passport to the European market.
Quality Assurance: The certification process includes rigorous type testing and factory inspection, ensuring higher product quality.
ADL400N-MID supports two CT specifications:
- 0.5-10(80)A: For circuits with max current up to 80A
- 0.5-10(120)A: For circuits with max current up to 120A
The CTs feature split-core design for easy installation without disconnecting primary cables, ideal for retrofit projects. Choose based on actual load current.
Summary
ADL400N-MID offers MID B+D certification, 50ms fast response, and 3-phase external CTs for EU markets. It ensures legal metering compliance and accurate monitoring for commercial solar systems.
