Overview

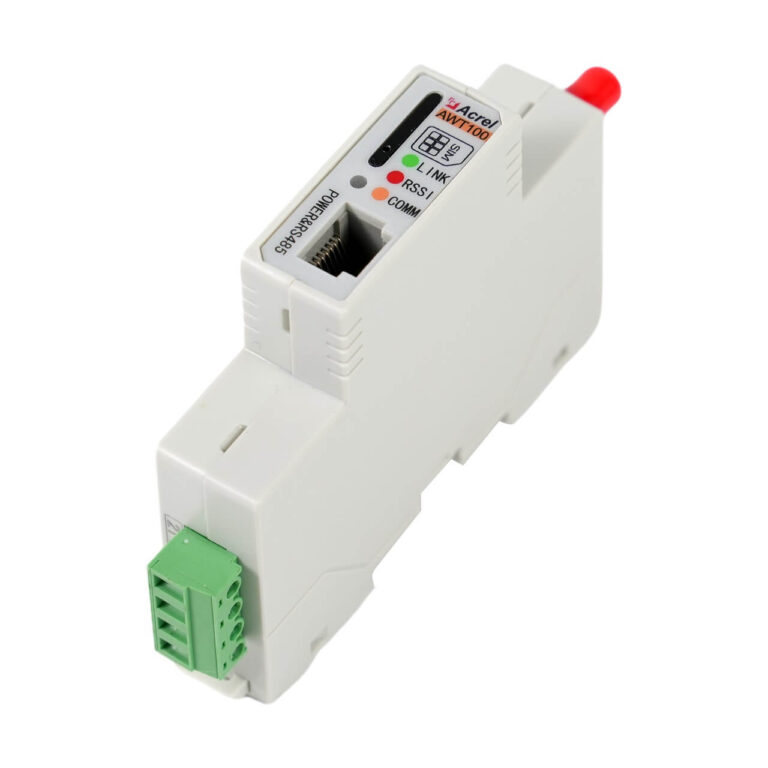

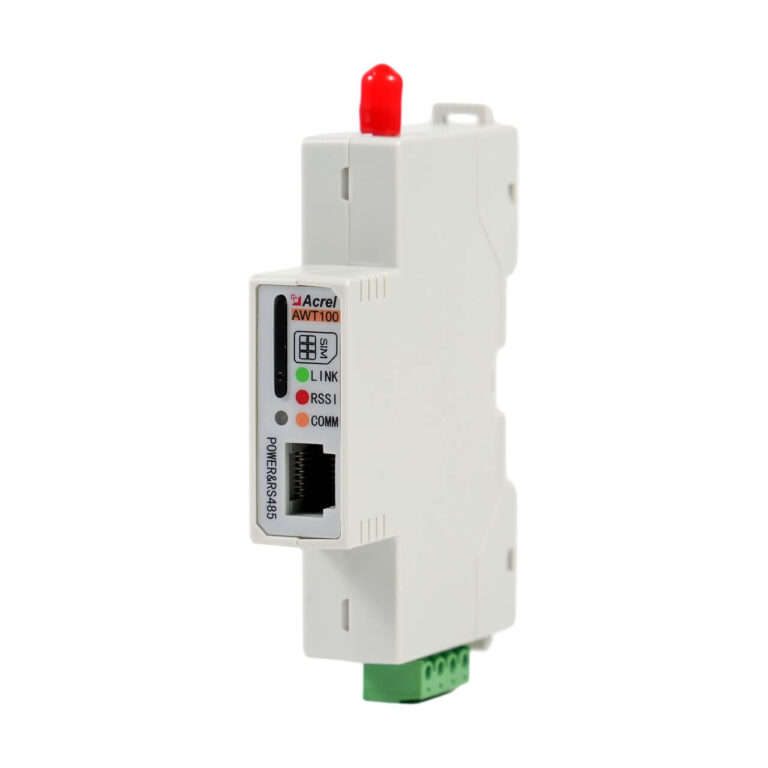

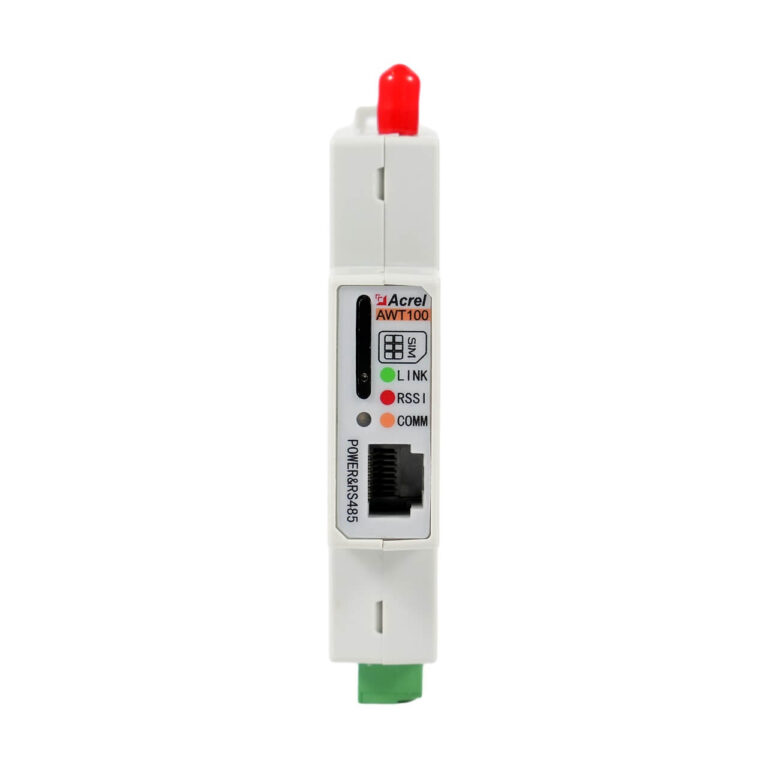

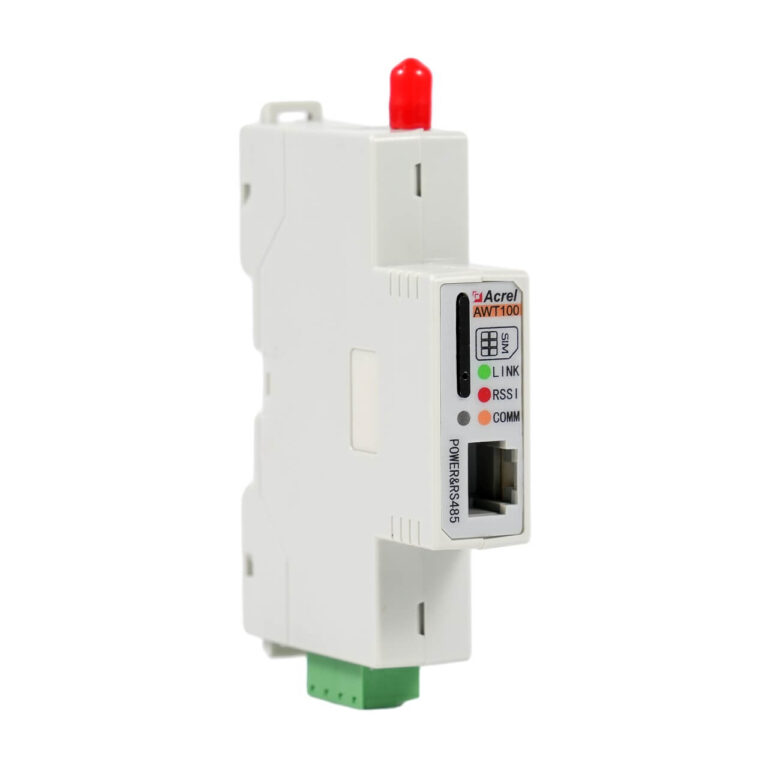

The AWT100 Data Conversion Module is a versatile wireless DTU designed for industrial data acquisition. It features multiple uplink communication options including 4G, LoRa, LoRaWAN, GPS, WiFi, and Ethernet, with a downstream RS485 interface for connecting to MODBUS devices such as power meters, RTUs, and PLCs. It automatically polls up to 30 devices, collecting up to 3000 electrical parameters, and transmits data to the Acrel cloud or third-party platforms via various protocols. Ideal for applications like wireless meter reading, building automation, power grid monitoring, and industrial remote control.
Highlight
Multiple Wireless Options
- 4G/LoRa/WiFi/Ethernet/GPS
- LoRaWAN (868/923MHz) available

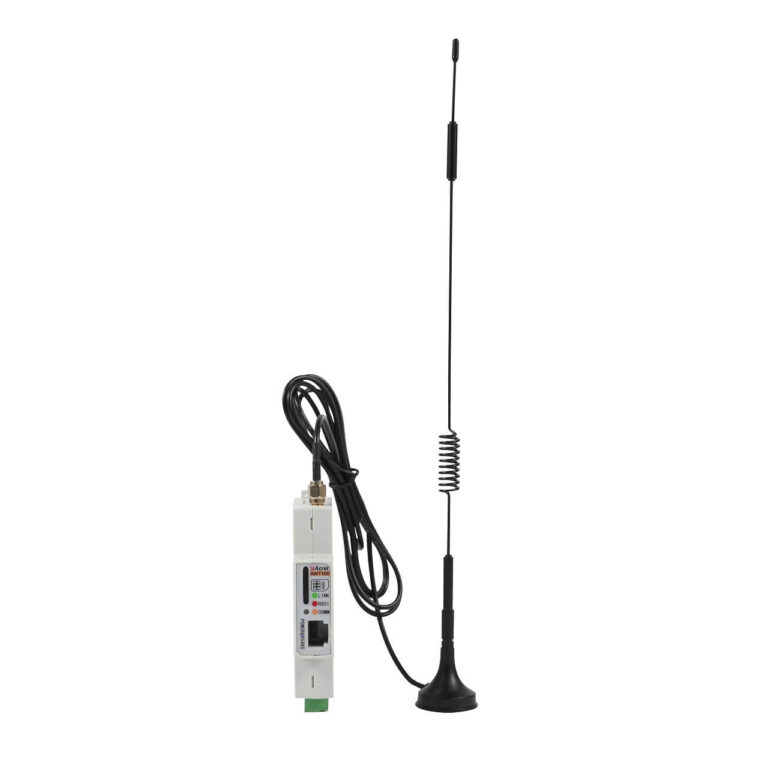

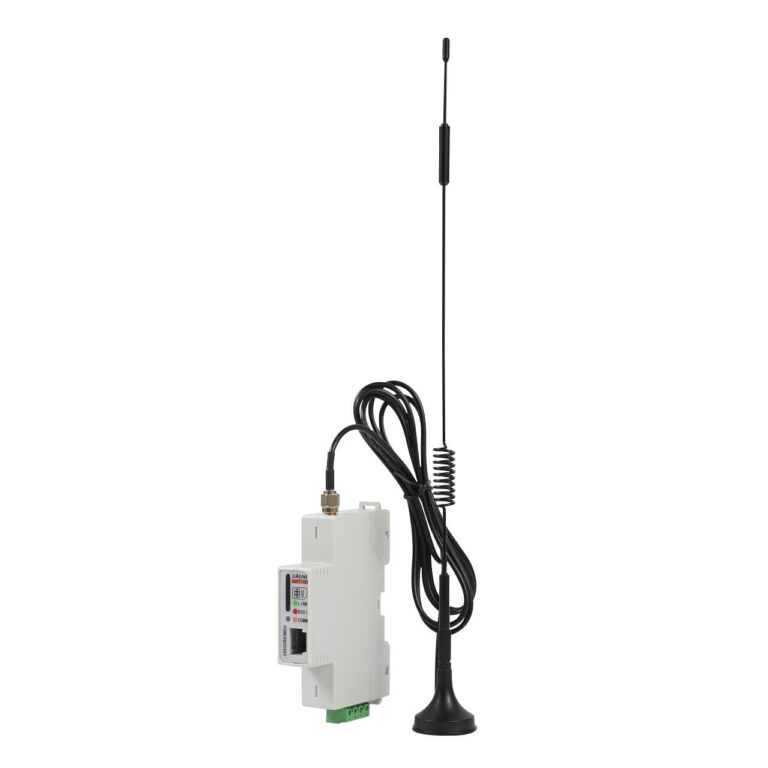

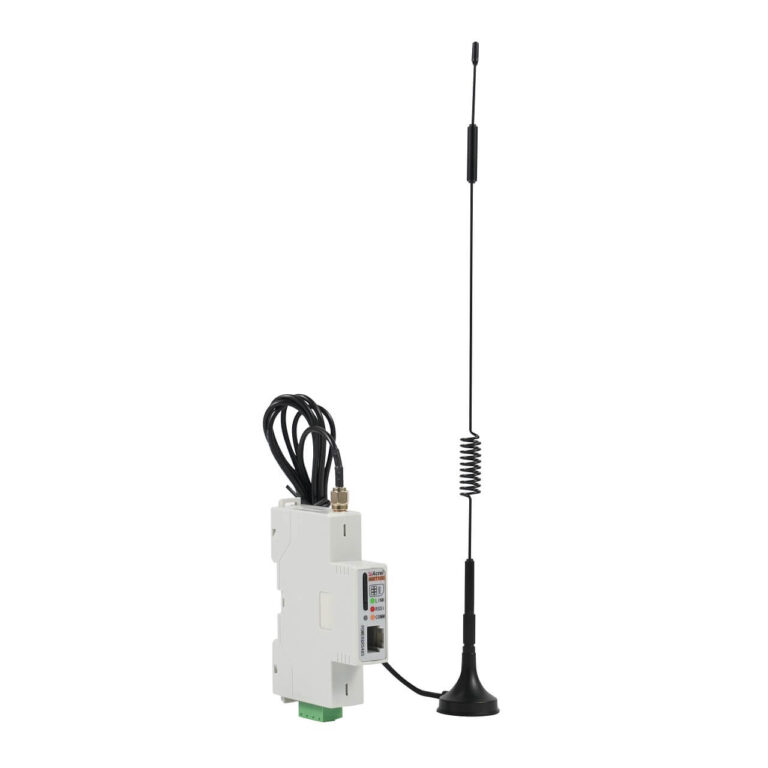

- External antenna for better signal
- SIM card support for 4G

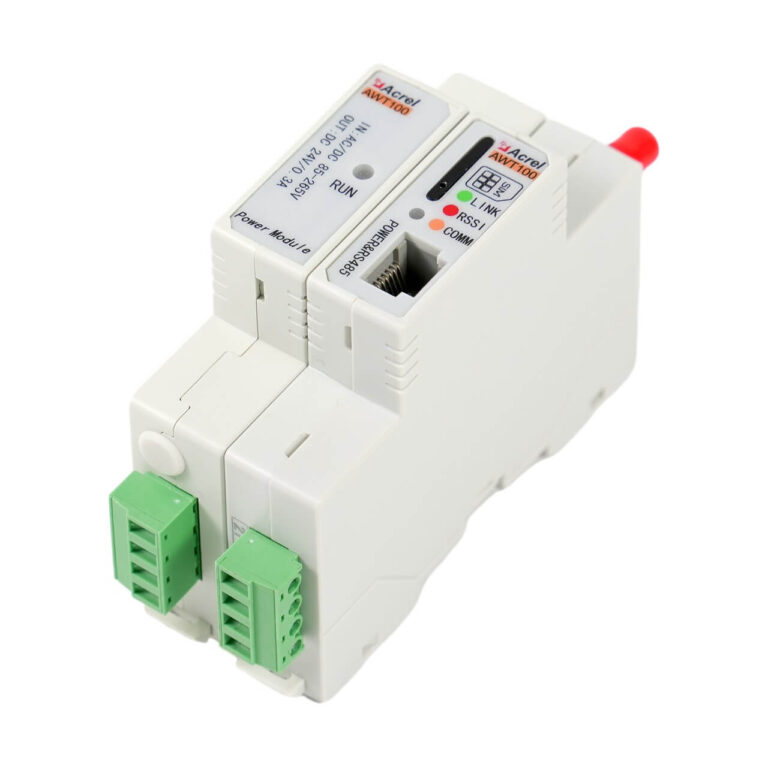

- Optional AC/DC220V power module
Powerful Data Acquisition
- Up to 30 MODBUS devices
- 3000 electrical parameters
- 8 templates, 640 points each
- Configurable polling interval
- Supports various data formats
High Reliability & Industrial Design
- Wide operating temp -20~60℃
- Storage temp -40~85℃
- Built-in watchdog for stability
- Low power consumption ≤3W
- DIN rail mounting, compact size
Flexible Protocols & Ease of Use
- Supports MQTT, transparent, etc.
- Acrel cloud protocol integrated
- Custom protocols on request
- Data buffering & retransmission
- Easy configuration via software
Function
| Feature | Description |
| Data Acquisition | Supports MODBUS RTU protocol; polls up to 30 devices; collects up to 3000 electrical parameters. |
| Communication Uplink | 4G, LoRa, LoRaWAN, GPS, WiFi, Ethernet (CE) options; works with Acrel cloud or third-party platforms. |
| Protocol Support | Transparent transmission, MQTT, Acrel smart electricity protocol, prepayment protocol; custom protocols available. |
| GPS Positioning | AWT100-GPS provides latitude, longitude, and satellite time; configurable positioning interval. |
| WiFi Connectivity | AWT100-WiFi auto-connects to hotspots; supports data transparent transmission and Acrel cloud protocol. |
| Ethernet Communication | AWT100-CE acts as TCP client; supports transparent or Acrel cloud protocol. |
| Data Buffering | AWT100-4G/WiFi/CE support data store-and-forward when network is interrupted (断点续传). |
| Configuration | Parameters can be read/written via PC software; easy setup. |
Show More
Specification
| Parameter | Value |
| Downlink Interface | RS485 (MODBUS RTU) |
| Uplink Communication | 4G / LoRa / LoRaWAN / GPS / WiFi / Ethernet (model dependent) |
| Number of Devices | Up to 30 |
| Electrical Parameters | Up to 3000 |
| Baud Rate | 4800, 9600, 19200, 38400 bps (default 9600) |

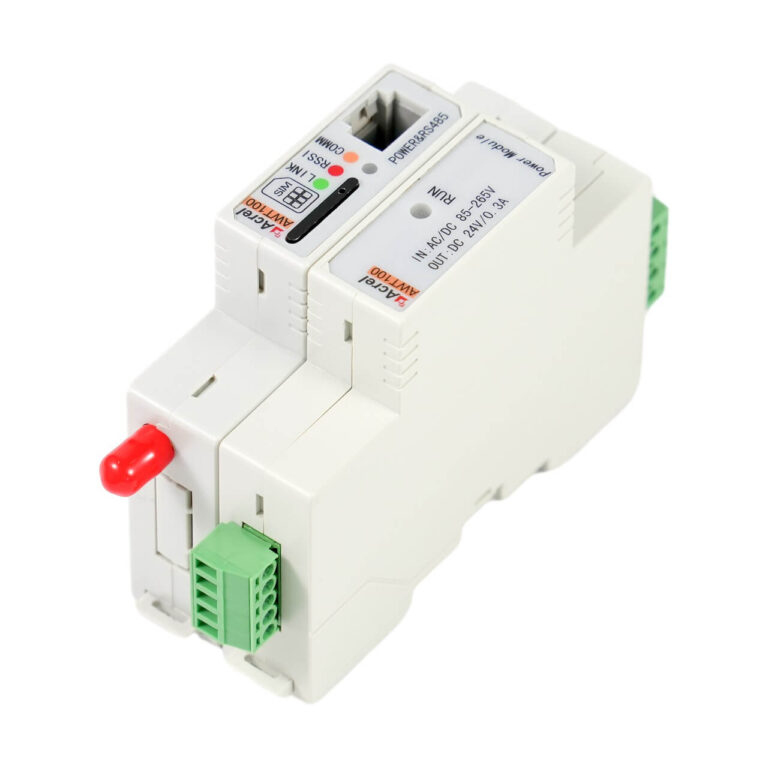

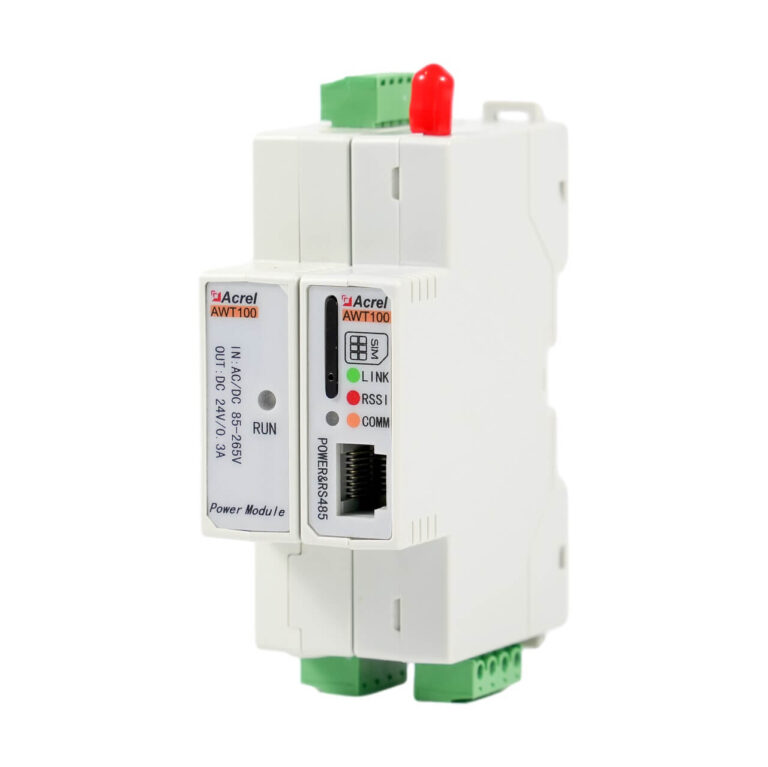

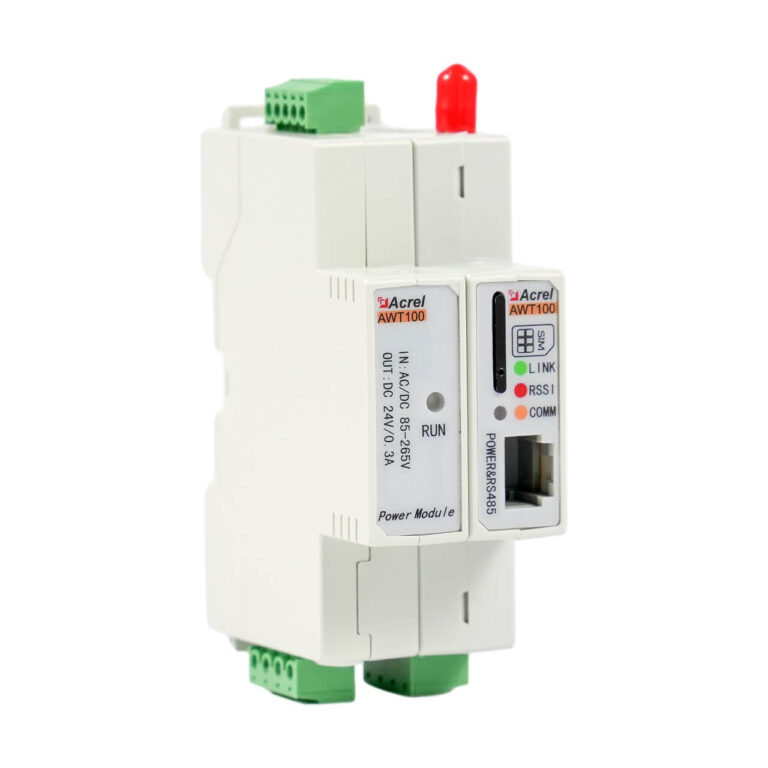

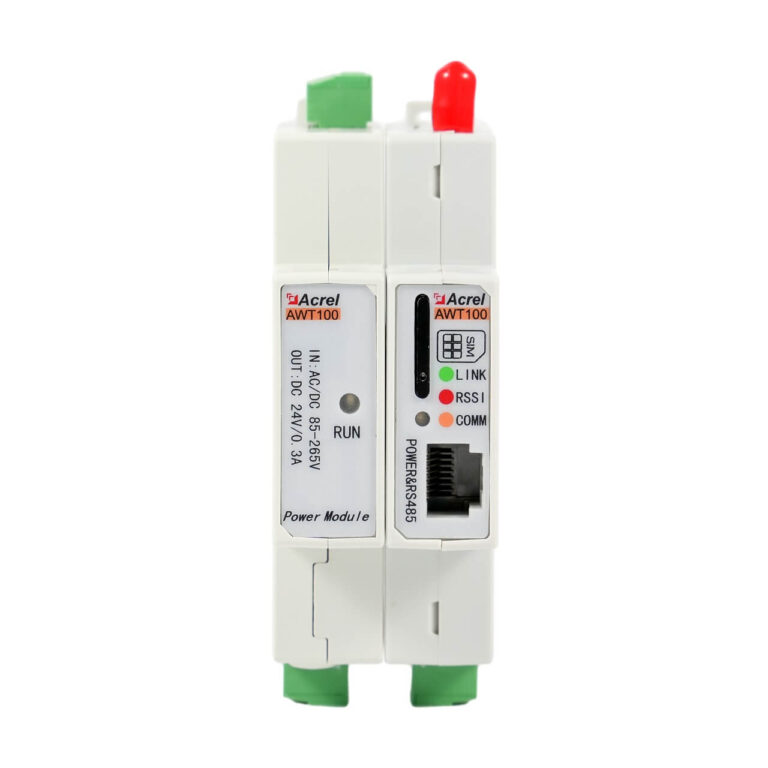

| Power Supply | DC 24V or AC/DC 220V (with AWT100-POW module) |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Humidity | 0 ~ 95% RH (non-condensing) |
| Antenna Interface | 50Ω / SMA (female) |
| Mounting | DIN35mm rail |
| Dimensions | 88.5*70*18mm |
| Data Length | Input ≤120 bytes, Output ≤120 bytes |
| Certification | CE, FCC (overseas versions) |
Show More
FAQ
Use the AWT100 configuration software on a PC connected via RS485. Open the correct COM port with matching baud rate, then read/write parameters. The device status LED indicates proper operation.
Yes, AWT100-4G/WiFi/CE models have built-in data storage. When the connection to the cloud is lost, data is saved locally and automatically retransmitted once the network is restored.
Up to 30 MODBUS RTU devices can be connected via the RS485 bus.

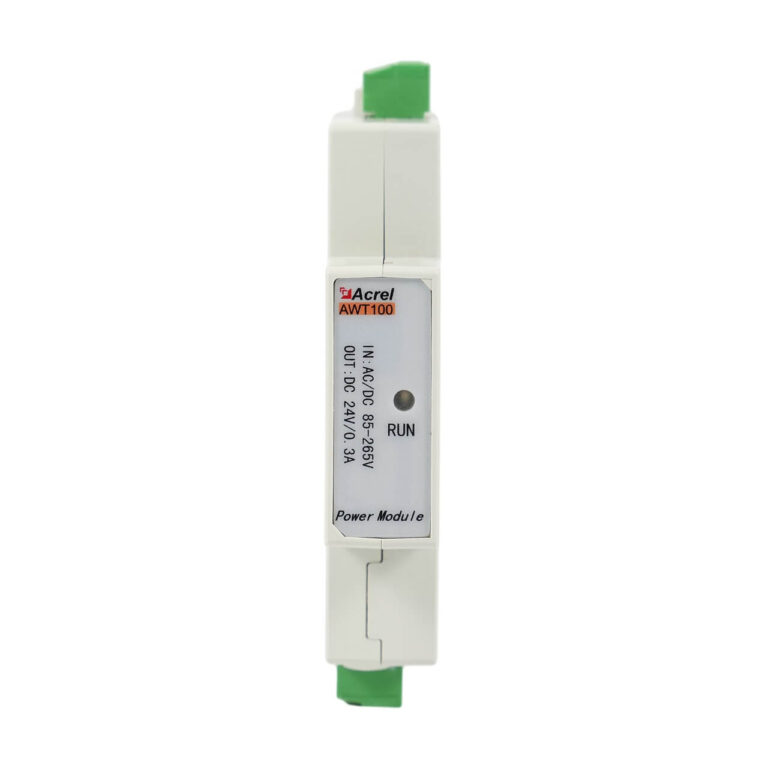

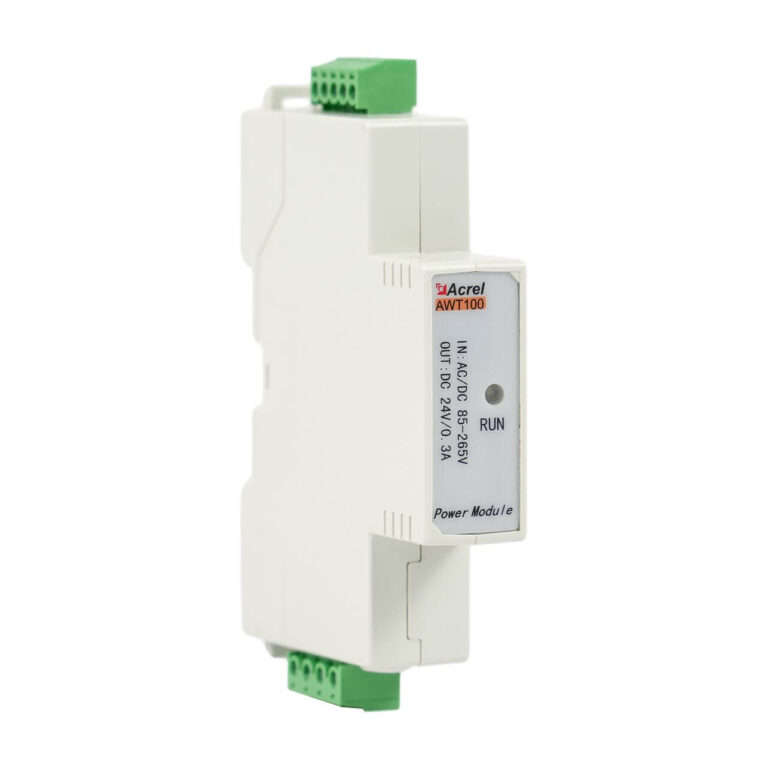

AWT100 can be powered by DC 24V directly, or by AC/DC 220V using the optional AWT100-POW power module.
Overseas versions (model suffix “HW”) use MQTT protocol with JSON data format, while domestic versions use Acrel’s proprietary protocol.
Summary
The AWT100 series data conversion module offers a comprehensive solution for wireless data acquisition in industrial environments. With multiple uplink options (4G, LoRa, WiFi, Ethernet, GPS), it adapts to diverse site conditions. Its robust RS485 interface and powerful polling engine collect data from up to 30 MODBUS devices, capturing 3000 electrical parameters. Advanced features like data buffering, wide temperature range, and easy DIN rail mounting ensure reliable operation in harsh conditions. Supporting Acrel cloud protocols, MQTT, and custom protocols, AWT100 seamlessly integrates with monitoring systems, enabling efficient remote management and predictive maintenance for power distribution, building automation, and industrial applications.
