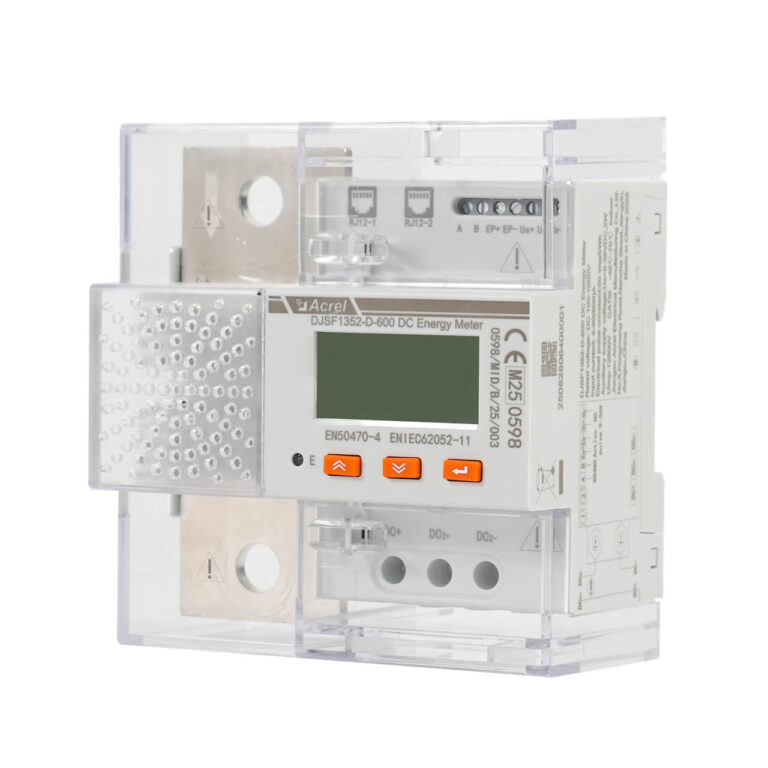

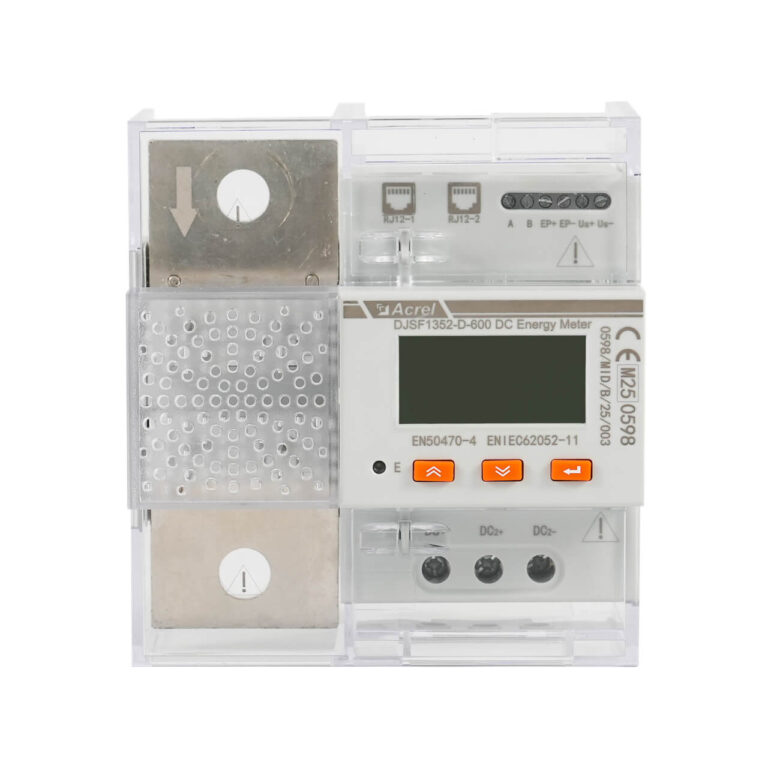

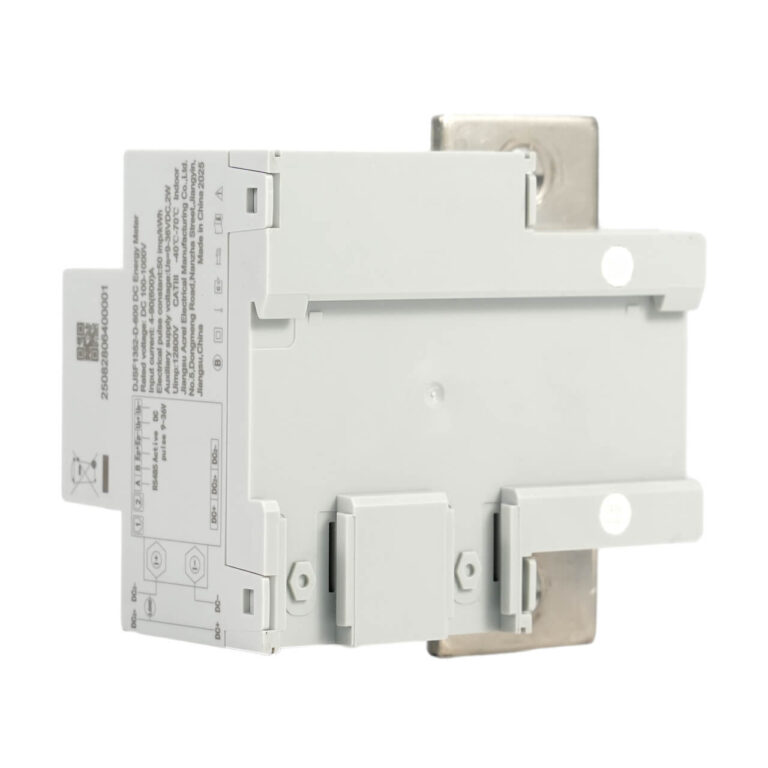

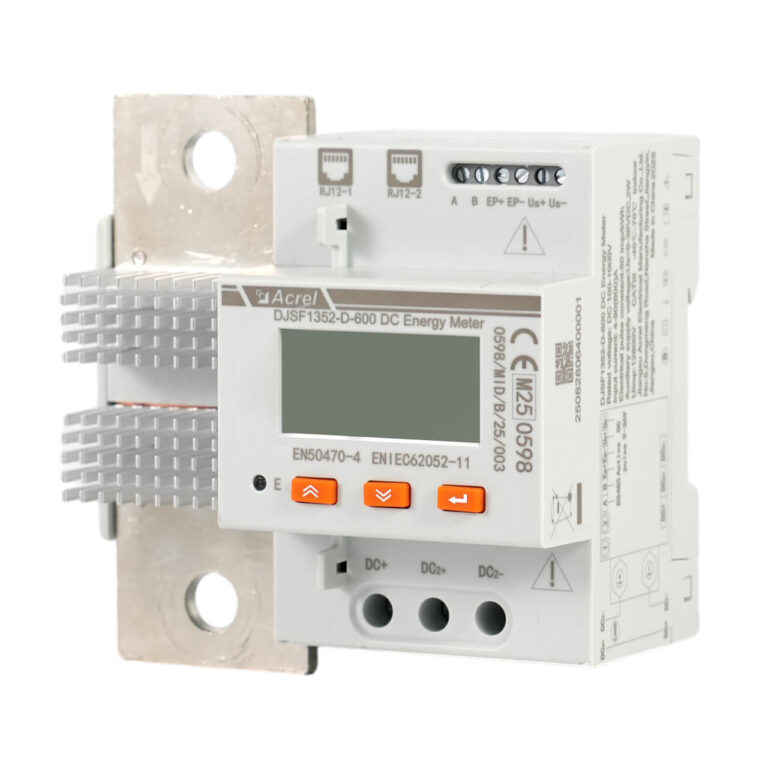

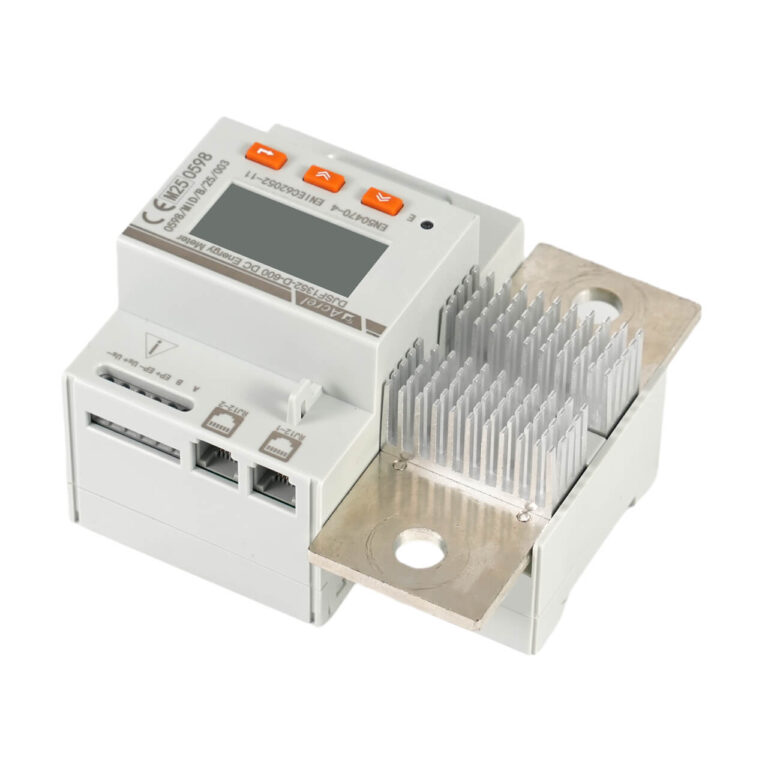

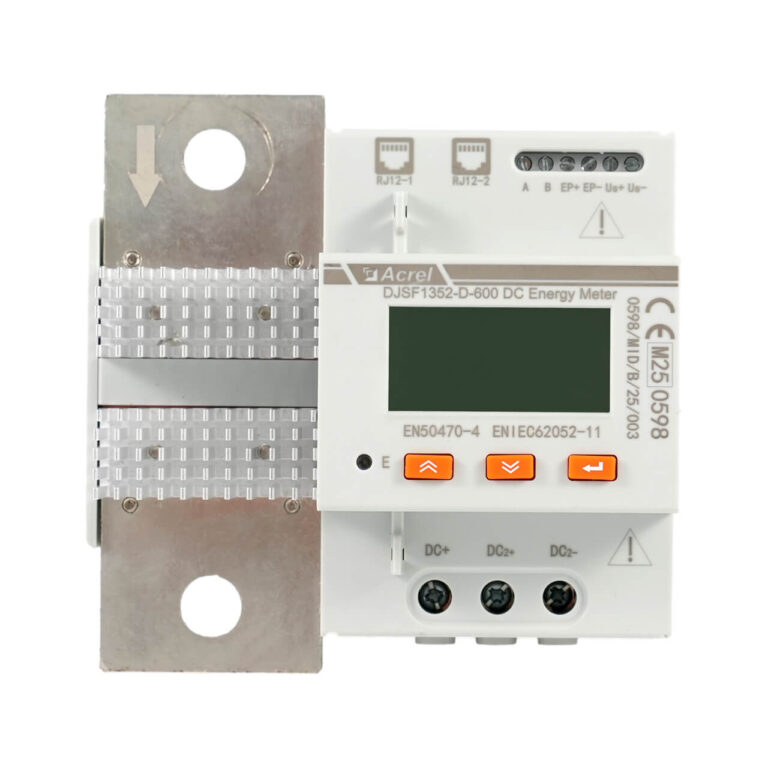

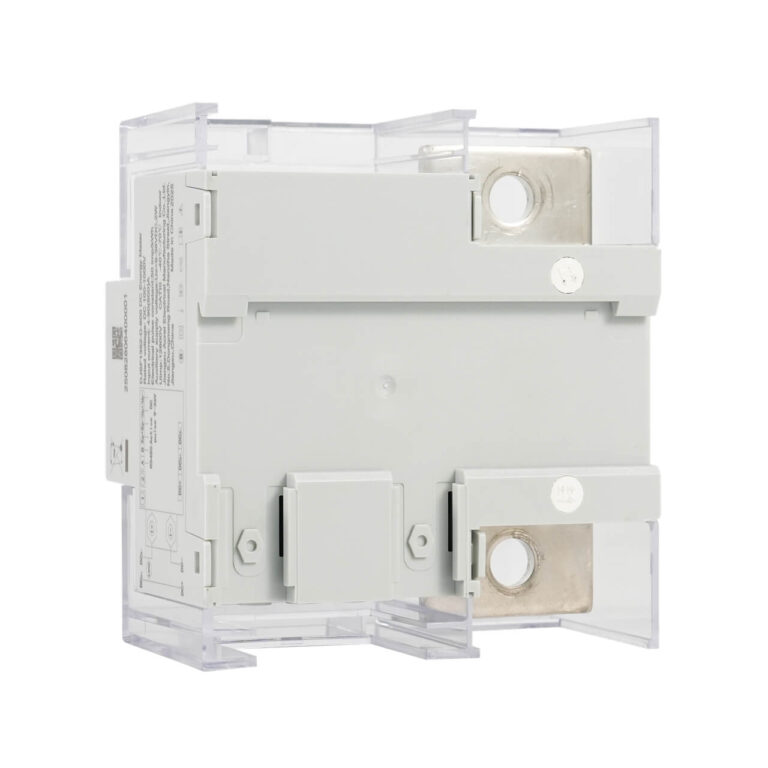

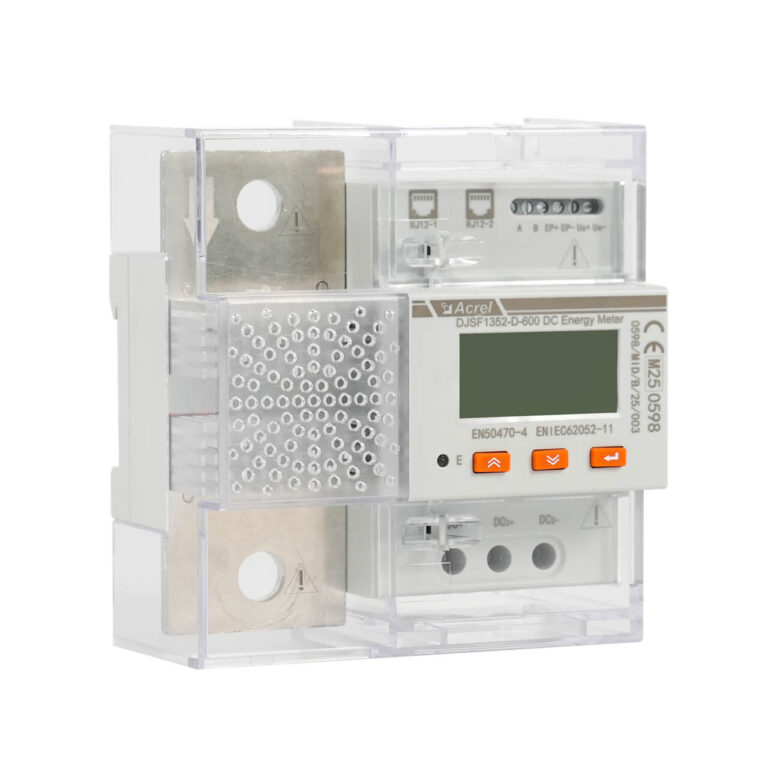

Overview

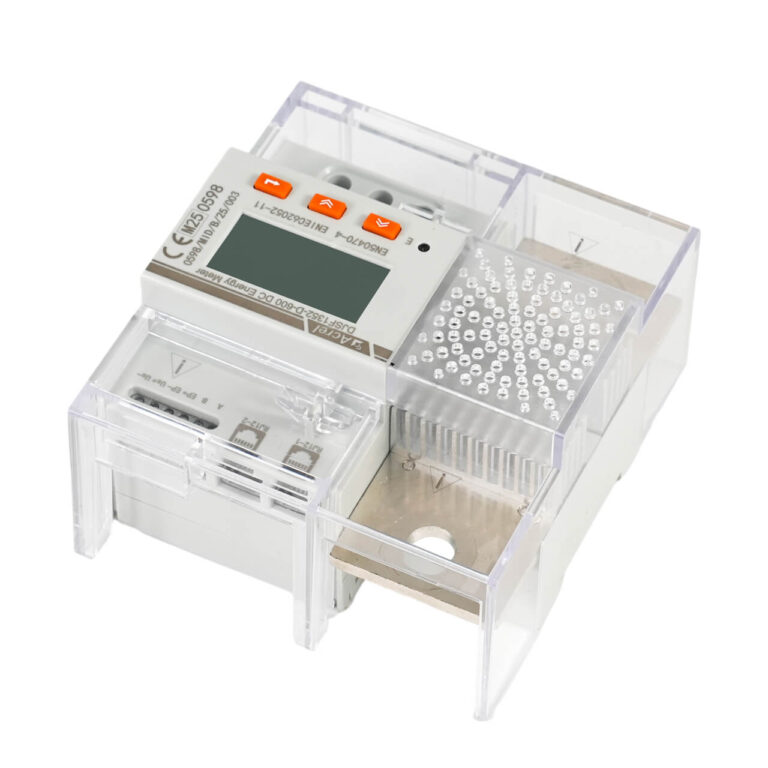

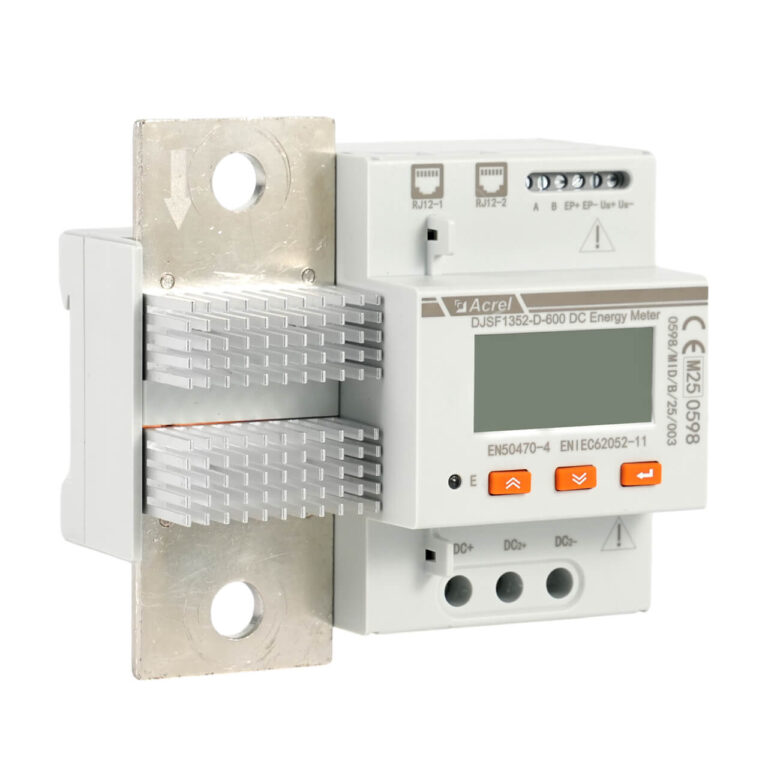

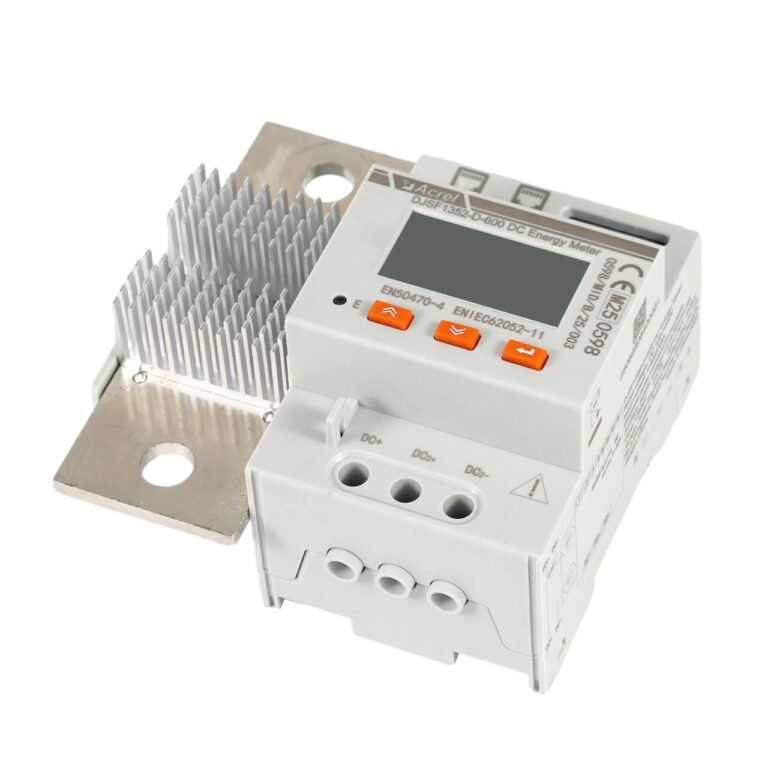

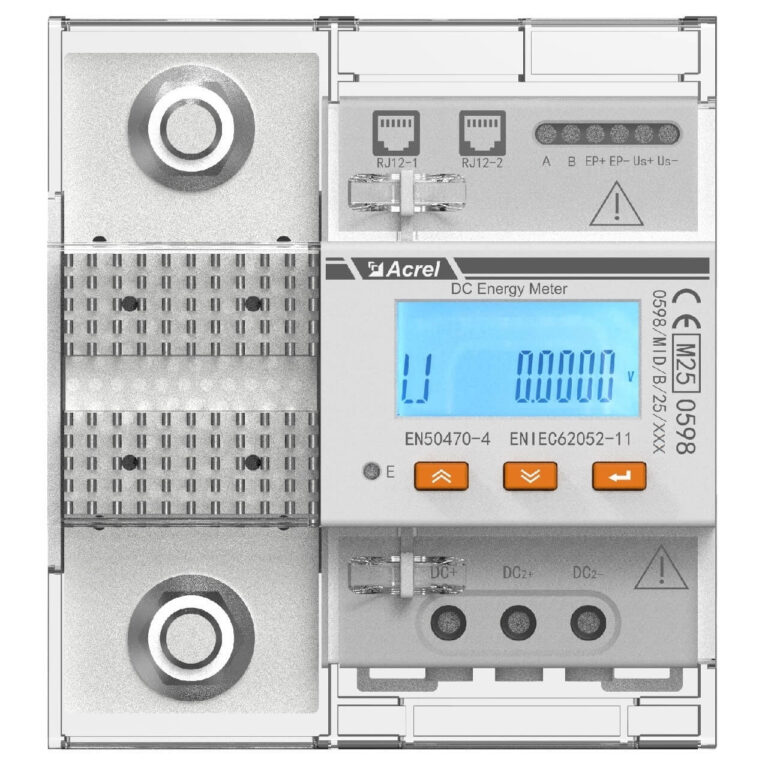

DJSF1352-D-600 is a MID-certified (0598/MID/B/25/003) DC energy meter for DC charging piles.
Direct connection up to 600A, voltage DC 0-1000V, accuracy Class B (EN 50470-4).
Measures forward/reverse energy, line loss. RS485 with Modbus/DLT645/DLT698.
Optional DJSF1352-L display module. Operating temp -40~70°C. DIN35 rail.
Highlight
EU MID Certified
- EN 50470-4:2023
- Certificate 0598/MID/B/25/003
- Billing purpose
- Class B (Class 1)
- European market
High Current Direct
- Max current 600A direct
- Voltage DC 0-1000V
- Compliant EN 50470-4
- M10 terminal screws
- Compact rail mount
High Reliability
- Operating temp -40~70℃
- Storage temp -40~70℃
- Dielectric 4.4kV/1min
- Impulse ±6kV
- Insulation ≥40MΩ
Flexible Display & Comm
- Optional DJSF1352-L module
- 1 display + 2 meters
- RJ12 extension
- Dual RS485 optional
- Modbus/DLT645/DLT698
Focus Areas
Real-time energy metering with multi-tariff billing and remote monitoring; direct connection for high current, MID certified for billing purposes.
DC energy metering for bus charging stations, public charging stations, highway service areas, etc.
Monitor energy consumption and status of DC distribution circuits for industrial DC systems, energy storage systems, etc.
Function
| Measurement | Metering | Display/Output | Others |
| DC Voltage | Total Forward | Segment LCD | RS485 Comm |
| DC Current | Total Reverse | Pulse Output | Dual Comm(opt) |
| DC Power | Forward Line Loss | Extension Display(opt) | Multiple Protocols |
| Internal Temp | Reverse Line Loss | Local Setting | Password Protection |
| Lossless Energy | Data Retention |
Specification
| Parameter | Specification |
| Voltage Input | DC 0-1000V |
| Current Input | 4-90(600)A (compliant with EN 50470-4) |
| Accuracy Class | Class B (Class 1), MID certified |
| Energy Metering | Forward/Reverse Active, Line Loss, Lossless |
| Pulse Output | 1 energy pulse, configurable constant |
| Communication | RS485 (standard), optional dual channels |
| Protocols | Modbus-RTU, DL/T 645-2007, DL/T 698 |
| Display | Segment LCD, optional DJSF1352-L module |
| Power Supply | DC 9-36V |
| Power Consumption | ≤ 3W |
| Operating Temp. | -40℃ ～ +70℃ |
| Storage Temp. | -40℃ ～ +70℃ |
| Humidity | ≤95% RH, non-condensing, no corrosive gases |
| Altitude | ≤2000m |
| Insulation Resistance | ≥ 40MΩ |
| Dielectric Strength | Power/Signal/Other: 4.4kV/1min |
| Impulse Withstand | ±6kV |
| MTBF | ≥50000h |
| Mounting | DIN35mm rail |
| Terminal Torque | M2:0.2N·m; M3:0.5N·m; M10:25N·m |
Show More
FAQ
Yes, this model has passed EU MID certification, Certificate No.: 0598/MID/B/25/003, compliant with EN 50470-4 standard, suitable for billing purposes in the European market.
The DJSF1352-D-600 has a maximum measuring current of 600A with direct connection, complying with EN 50470-4 standard.
In the menu, go to “IN” -> “NEg.U” or “NEg.I” and set it to “on”. If not set, the reading may appear negative.
It supports Modbus-RTU, DL/T 645-2007, and DL/T 698 protocols. Default baud rate 9600, no parity, 1 stop bit.

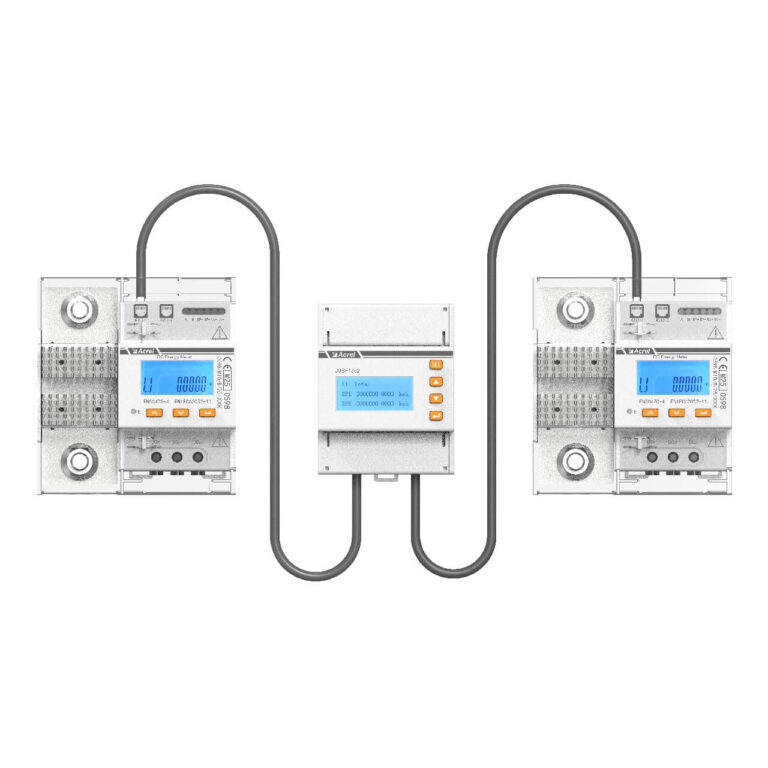

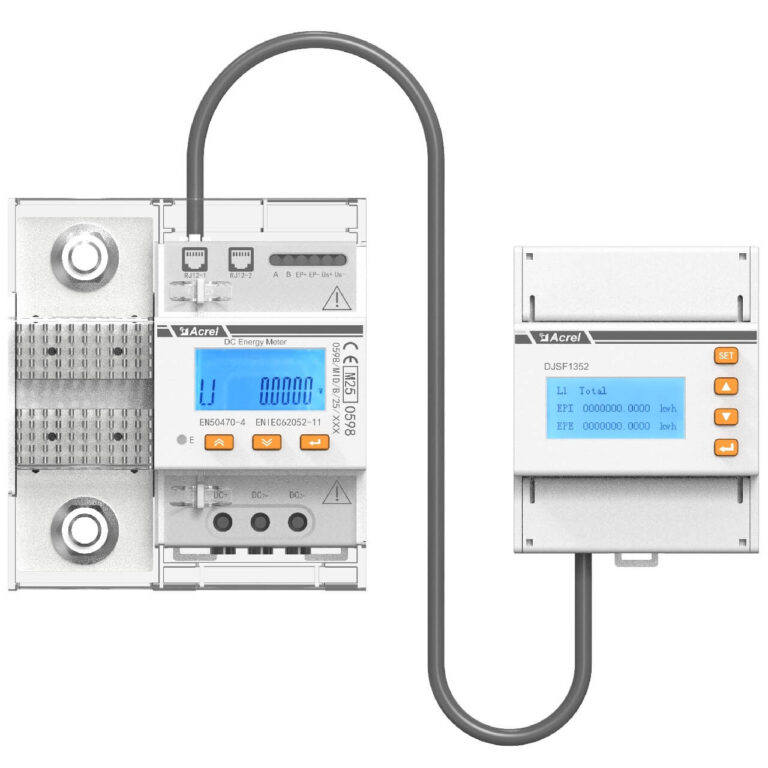

Connect via RJ12 interface. Supports 1 display module + 1 energy meter, or 1 display module + 2 energy meters. See section 4.4 of the manual for wiring diagrams.
Yes. The meter operates at -40℃ to +70℃, storage -40℃ to +70℃, humidity ≤95% non-condensing, suitable for outdoor cabinet installation.
Set it in the menu “bUS” -> “Addr”, range 1-247. Save and restart to take effect.
M2 terminal: 0.2N·m; M3 screw: 0.5N·m; M10 screw: 25N·m. Use a torque wrench to tighten according to specifications.
Line loss energy is the energy lost in the lines; lossless energy is the net energy after deducting line losses. The sum of the two equals the total energy.
Press and hold the confirm button on any display screen to enter the “PASS” interface. Enter the password (default 0001) to access parameter settings. Press and hold the confirm button to save and exit after configuration.
Summary
With MID approval, this meter is suitable for billing applications in the European market. High-current direct connection, wide temperature range, and flexible display options ensure reliable and compliant energy measurement for EV charging stations.
