Overview

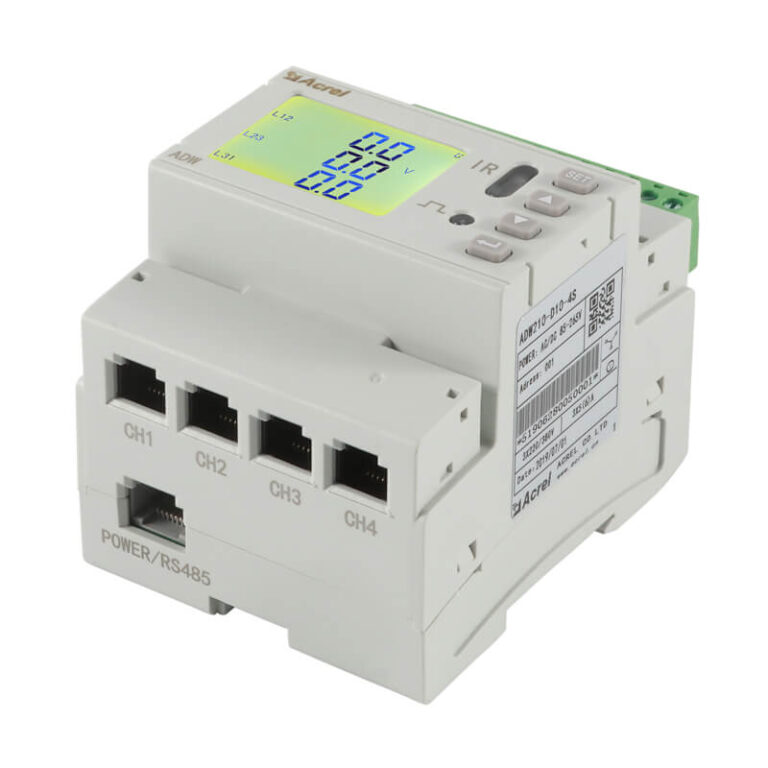

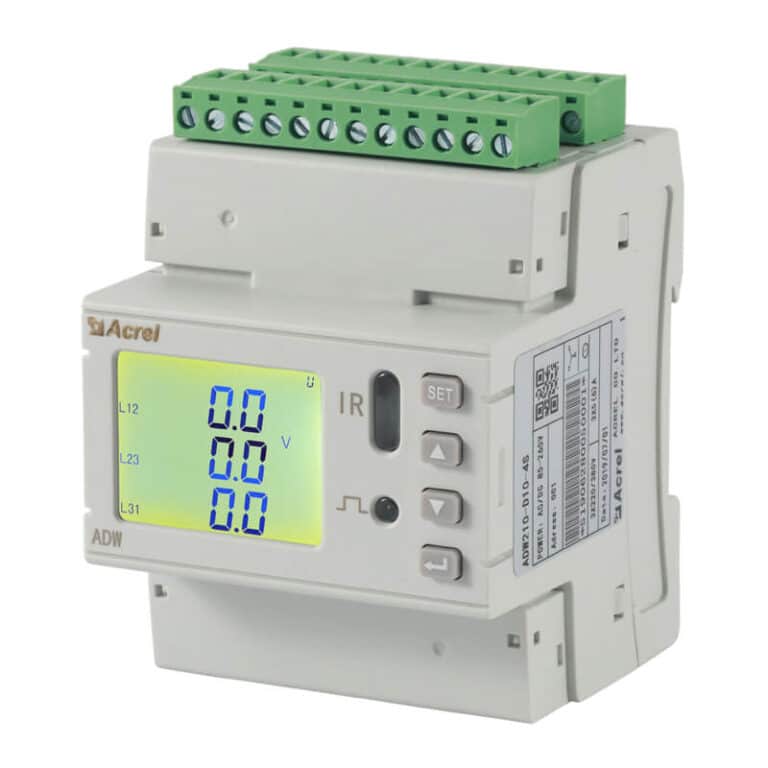

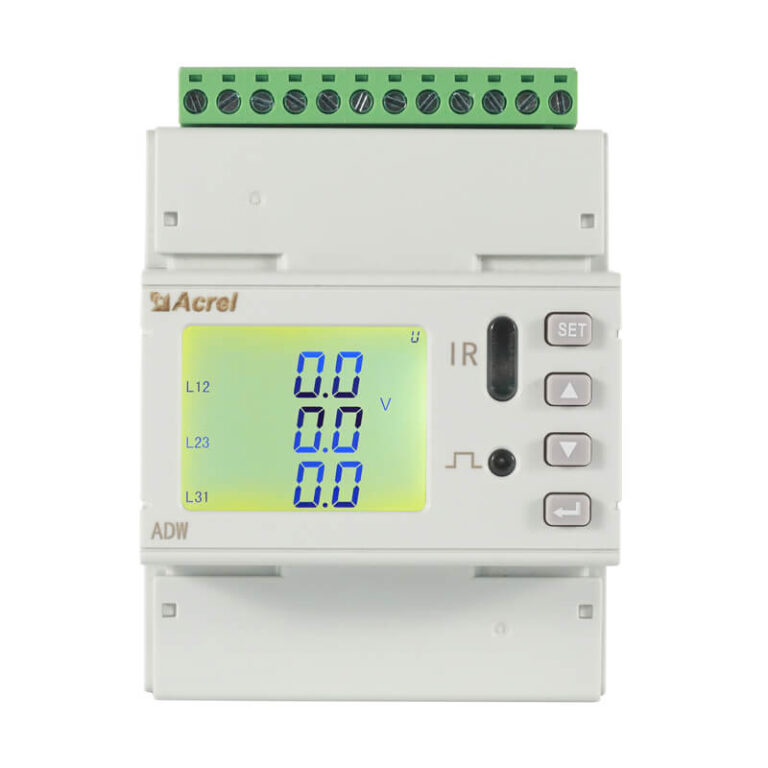

The ADW210 series is a compact, rail-mounted multi-circuit power meter designed for distributed energy monitoring in industrial and commercial facilities.
It supports up to four independent three-phase circuits in a single device, significantly reducing installation space and cost compared to traditional single-circuit meters.
Highlight
Multi-Circuit Measurement
- Supports 4 independent 3-phase circuits with external current transformers (CTs).
- Measures voltage, current, power, frequency, power factor, harmonics (2–31), unbalance, and more.

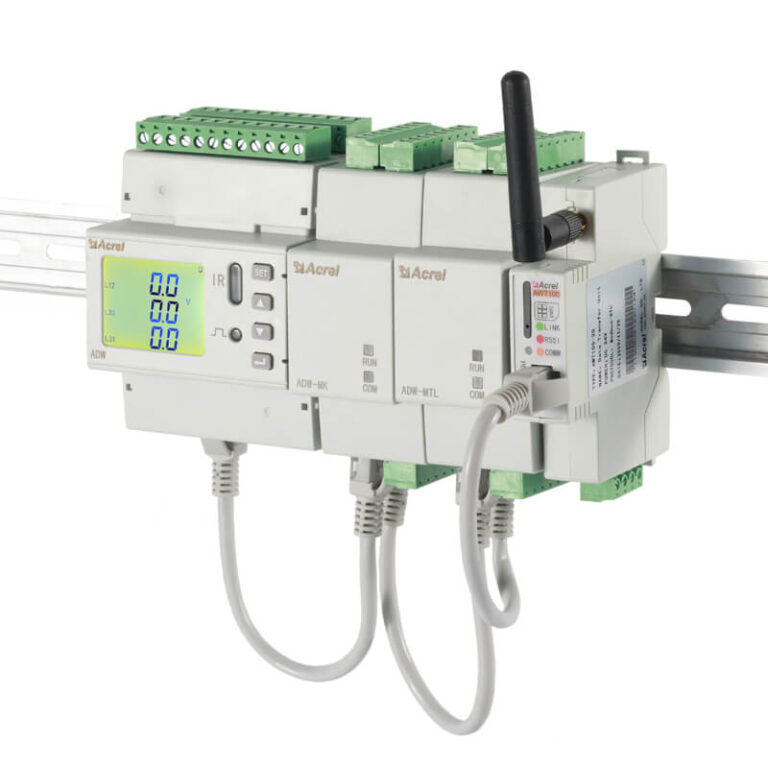

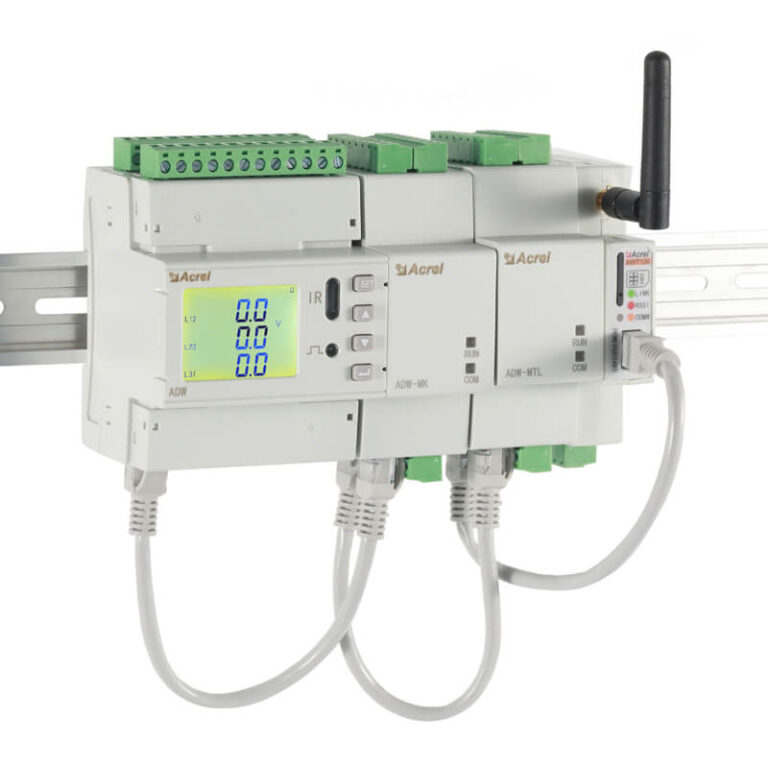

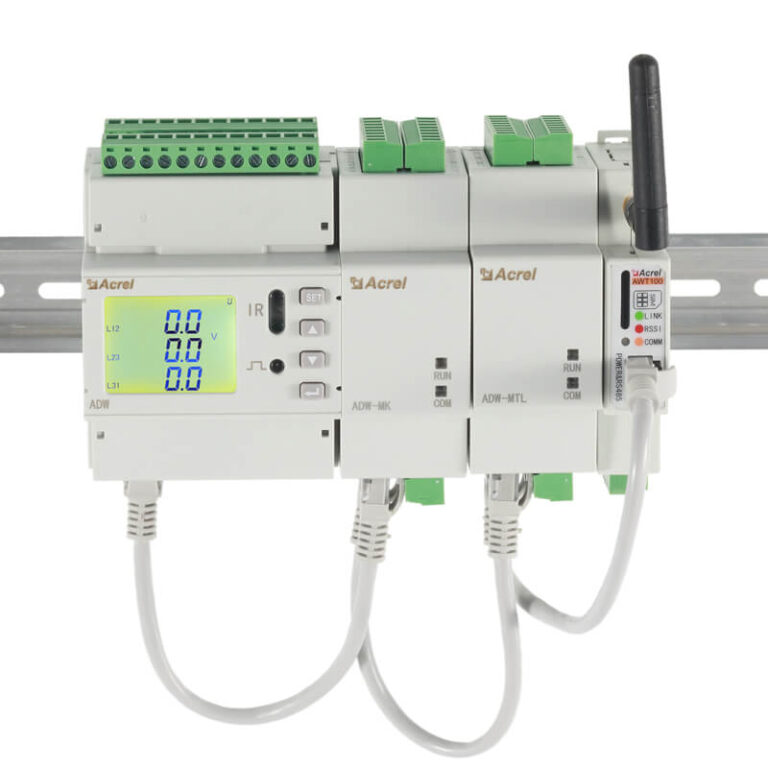

Modular Expansion
- Expandable via RJ45 interface with:
- MK module: 12DI + 4DO
- MTL module: 12 temperature + 4 leakage current inputs
- AWT series: 2G/4G/NB-IoT/LoRa/LoRaWAN wireless communication
High Accuracy & Reliability
- Voltage/current accuracy: 0.5 class
- Active energy accuracy: 1 class
- Reactive energy accuracy: 2 class
- Harmonic accuracy: ±1%
Data Logging & Event Recording
- Monthly max/min values of voltage, current, power;
- 200 event logs (DI/DO actions);
- 4-quadrant energy, 12-month historical tariff data;
- 31-day energy freeze records.
Function
| Measurement | Metering | Others |
| Voltage (Phase/Line) | Total & Branch Energy (Forward/Reverse, Active/Reactive) | Flexible configuration: 4 three-phase circuits |
| Current (Per Phase/Neutral) | Multi-tariff Energy (4 tariffs, 14 periods) | 31-day daily frozen & 12-month historical energy storage |
| Power (Per Phase/Total, Active/Reactive/Apparent) | Four-quadrant Reactive Energy | 200 event logs (alarms, DI actions) |
| Power Factor (Per Phase/Total) | Demand Recording (Current/Power, Current/Previous Month) | RS485 communication (Modbus-RTU) |
| Frequency | Extreme Value Recording (Voltage/Current/Power) | Digital I/O: 2DI + 2DO (built-in) |
| 2nd–31st Harmonics (Voltage/Current THD) | External expansion modules (MK/MTL/AWT100 series) | |
| Unbalance (Voltage/Current) | Pulse output (active energy) |
Specification
| Parameter | Specification |
| Input Voltage | AC 3×220V/380V, rated value; Overload: 1.2× continuous, 2× for 1s |
| Input Current | External split-core CTs: 5A / 100A / 400A / 600A optional; Overload: 1.2× continuous, 10× for 1s |
| Accuracy | Voltage/Current: Class 0.5; Active Energy: Class 1; Reactive Energy: Class 2; Harmonics: ±1% |
| Harmonic Measurement | 2nd–31st, accuracy: ±1% |
| Auxiliary Power | AC/DC 85～265V, DC 48V, AC 380V optional; Power consumption: ≤10VA |
| Operating Environment | Temperature: -20℃～+60℃; Humidity: ≤95% non-condensing; Altitude: ≤2500m |
| Communication Interface | 1x RS485 (Modbus-RTU), baud rate 1200–38400 bps |
| Digital I/O | Built-in: 2DI + 2DO (relay output, AC 250V/3A, DC 30V/3A) |
| Expansion Module Interface | Supports MK (DI/DO), MTL (temp/leakage), AWT100 (wireless) modules via RJ45 |
| Dimensions | Main unit: 87.8mm × 72mm × 71.5mm (including terminals) |

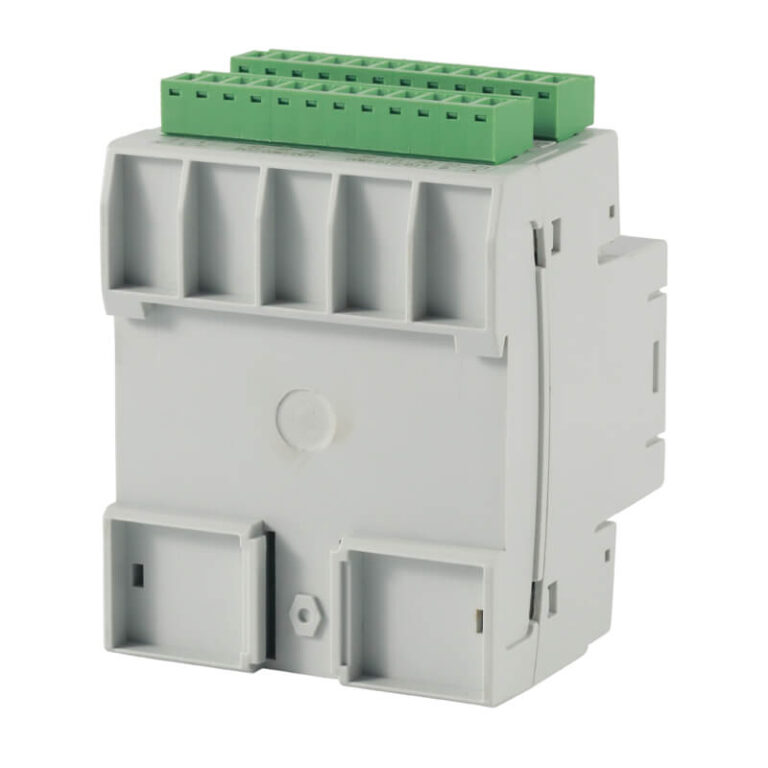

| Mounting | 35mm DIN rail mounting |
Show More

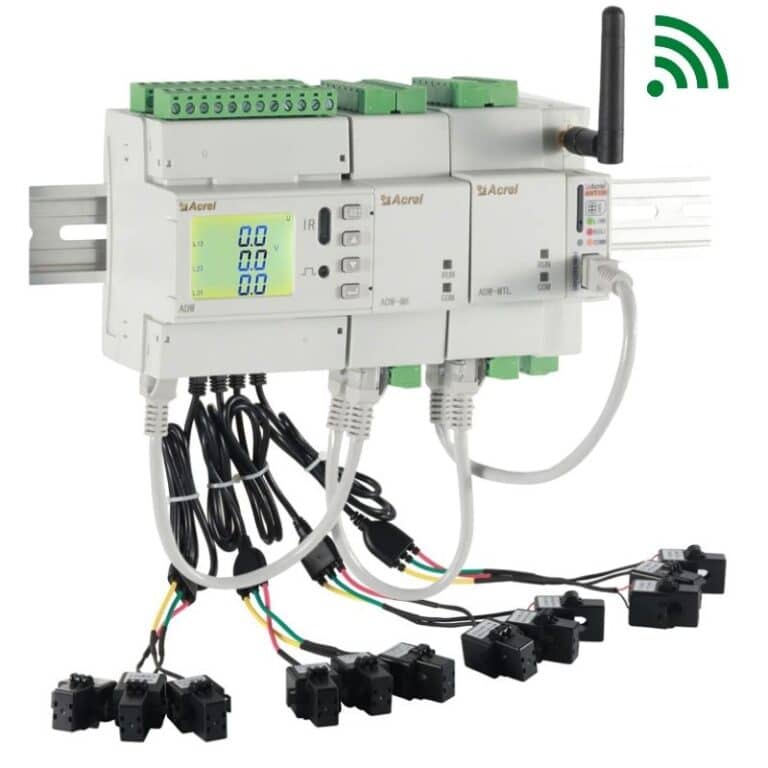

Compatible Accessories
| Model | Description | Diameter | Current |
| AKH-0.66/K-Ø10N | Split-core CT for 5A circuits | 10mm | 5A |
| AKH-0.66/K-Ø16N | Split-core CT for 100A circuits | 16mm | 100A |
| AKH-0.66/K-Ø24N | Split-core CT for 400A circuits | 24mm | 400A |
| AKH-0.66/K-Ø36N | Split-core CT for 600A circuits | 36mm | 600A |
| AKH-0.66-L-45 | Residual current transformer for leakage monitoring | 45mm | 16-100A |
Summary
The ADW210 series multi-circuit power meter redefines solutions for multi-circuit monitoring scenarios with its high integration, high accuracy, and flexible expandability. It simplifies complex multi-circuit monitoring needs into a single device, reducing procurement and installation costs while saving valuable distribution space. Whether for refined design in new projects or energy-saving retrofits in existing systems, the ADW210 provides a powerful, reliable, and easily integrated data foundation, helping your power distribution system move towards digitalization and intelligence.
FAQ
Selection mainly depends on current rating and wireless needs. Current ratings correspond to CT models: 5A, 100A, 400A, 600A. For wireless (2G/4G/NB-IoT/LoRa), add AWT100 series module.
Up to MK+MTL+AWT100 modules can be connected simultaneously (daisy-chained via RJ45). Configure as needed to ensure communication efficiency.
Set the primary current value for each circuit (CH1~CH4) via the meter‘s panel in the “Signal Input” menu, or by writing to Modbus registers (addresses 14H~17H).
Configure in the “Alarm Setting” menu. Select alarm mode (e.g., overvoltage, overcurrent), target circuit, delay, hysteresis, and thresholds (high/low). Relays can be set to remote or associated with alarms.
Check: 1) RS485 A/B wiring is correct. 2) Address, baud rate, parity match host. 3) 120Ω termination resistor connected at bus end. 4) Test with only one device online to avoid address conflicts.
