Overview
The ATP series touch screen is designed for centralized temperature monitoring of critical electrical equipment such as high-voltage switchgear contacts, cable joints, dry-type transformers, and low-voltage high-current busbars. It works together with wireless temperature transceivers (ATC600-C or ATC600-M) to collect data from up to 240 wireless sensors. The built-in HMI provides real-time display, alarm management, historical curves, and USB data export, making it an ideal solution for predictive maintenance and asset protection in power distribution systems.
Highlight
Sensor Capacity & Compatibility
- 240 sensors max
- ATE200/400/300P support
- ATE300M/ACE100 support
Measurement Accuracy
- Accuracy ±1℃
- Resolution 0.1℃
- Wireless 470/433MHz
- Range 150m (open)
HMI & Data Management
- 7″/10″ touch screen
- Real-time display & alarm
- Temp curve 100 days
- USB import/export
Communication Options
- RS485/Ethernet
- Modbus-RTU/TCP
- Baud rate 2400-19200
Function
| Feature | Description |
| Wireless sensor reception | Up to 240 sensors (ATE200, ATE400, ATE300P, ATE300M, ACE100, etc.) |

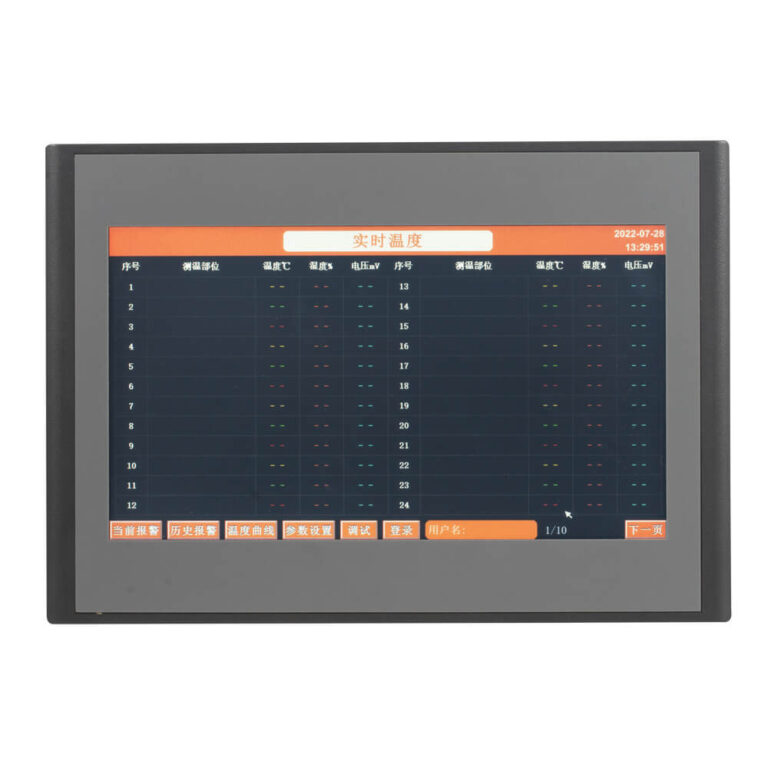

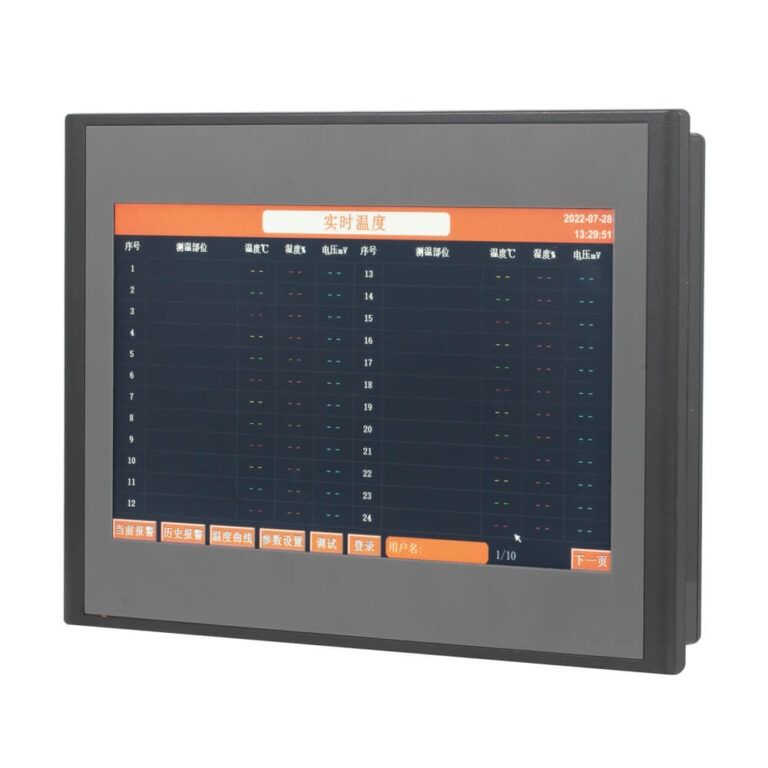

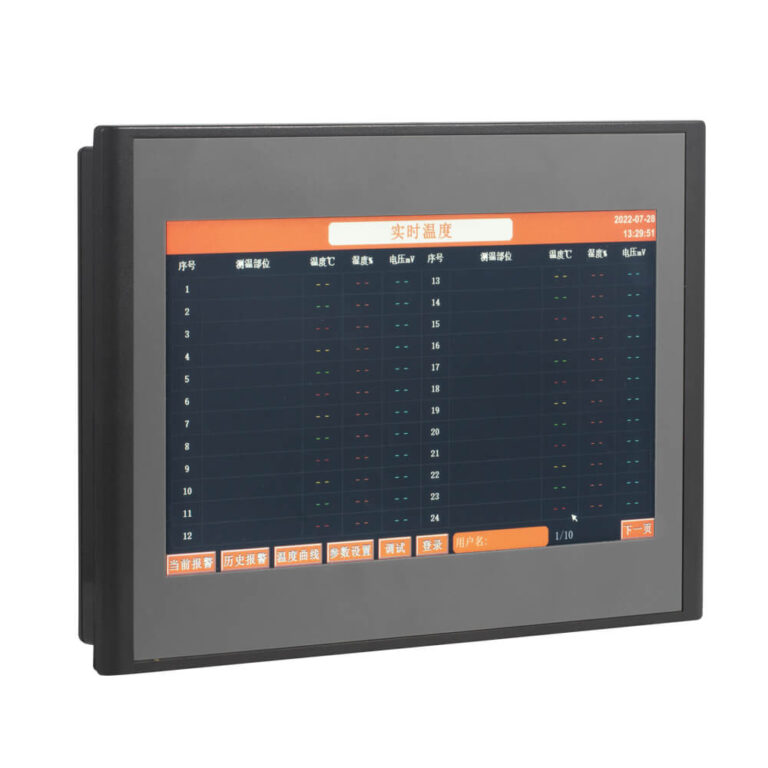

| Real-time temperature display | Default screen shows live temperatures of all monitored points |
| Alarm management | High-temperature alarm with buzzer; current & historical alarm logs |
| Temperature curve | Records every 5 minutes, stores up to 100 days; USB export |
| Parameter setting | Alarm thresholds, sensor naming, language switch (CN/EN) |
| USB import/export | Batch import/export of sensor names via CSV files |

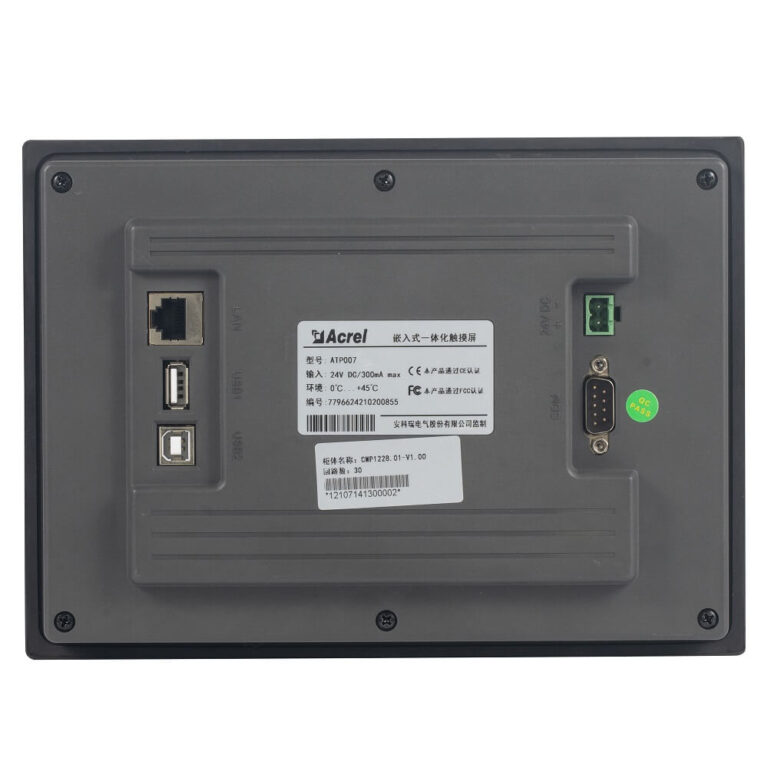

| Data communication | RS485 / Ethernet, Modbus-RTU / Modbus-TCP |
Specification
| Parameter | Value |
| Model | ATP007, ATP010 |
| Power supply | DC 24 V (±10%), 5 W / 6 W |
| Number of sensors | 240 |
| Temperature resolution | 0.1 ℃ |
| Temperature accuracy | ±1 ℃ |
| Communication interface | RS485, Ethernet |
| Protocol | Modbus-RTU, Modbus-TCP |
| Baud rate | 2400, 4800, 9600, 19200 bps |
| Operating temperature | 0 ℃ ~ 50 ℃ |
| Humidity | ≤95% (non-condensing) |
| Altitude | ≤3000 m |
| Installation | Panel-mount, embedded |
| Cutout size (ATP007) | 192 mm × 138 mm (see manual for details) |
| Cutout size (ATP010) | 260 mm × 202 mm (see manual for details) |
Show More
Model Differences
| Model | Description | Power | Cutout (W×H) |
| ATP007 | 7-inch touch screen, compact size | 5 W | 192×138 mm |
| ATP010 | 10-inch touch screen, larger display | 6 W | 260×202 mm |
FAQ
It can monitor up to 240 wireless temperature sensors simultaneously, supporting models such as ATE200, ATE400, ATE300P, ATE300M, and ACE100.
RS485 with Modbus-RTU and Ethernet with Modbus-TCP, allowing easy integration with SCADA, EMS, or other monitoring systems.
Yes, temperature curves are recorded every 5 minutes and can be stored for up to 100 days. Data can be exported to a USB flash drive in CSV format.
After logging in (default password 0008), go to the parameter setting menu, adjust the high-temperature alarm value for each sensor group, and click “Save Settings”.
Summary
The ATP series wireless temperature measurement touch screen offers a reliable and user-friendly solution for centralized temperature monitoring in electrical power systems. With support for up to 240 sensors, high accuracy, flexible communication options, and intuitive HMI functions, it helps operators detect abnormal temperature rises early, reduce maintenance costs, and prevent equipment failures. Whether used in new installations or retrofit projects, the ATP series seamlessly integrates into existing monitoring infrastructures.
