Overview

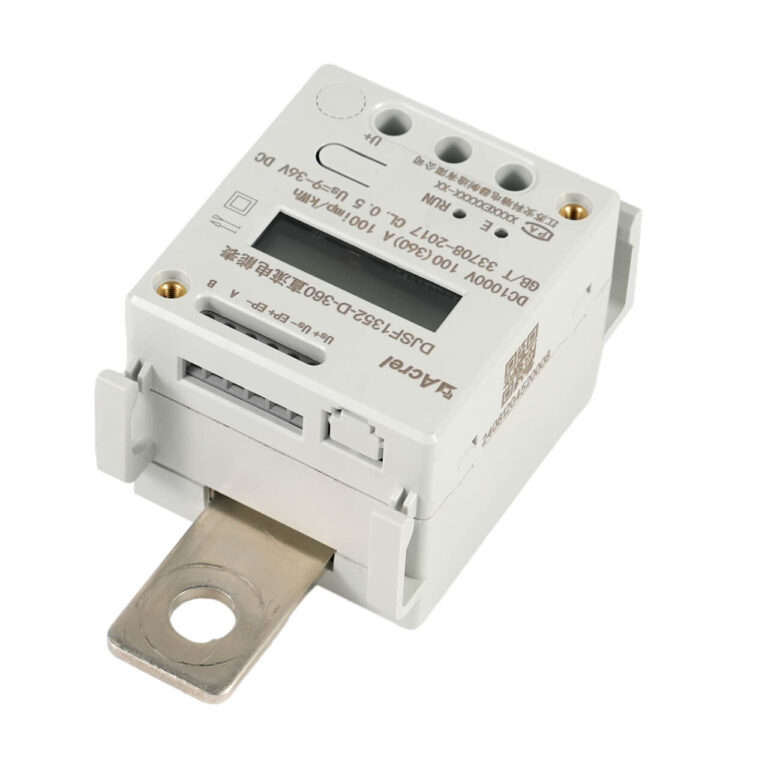

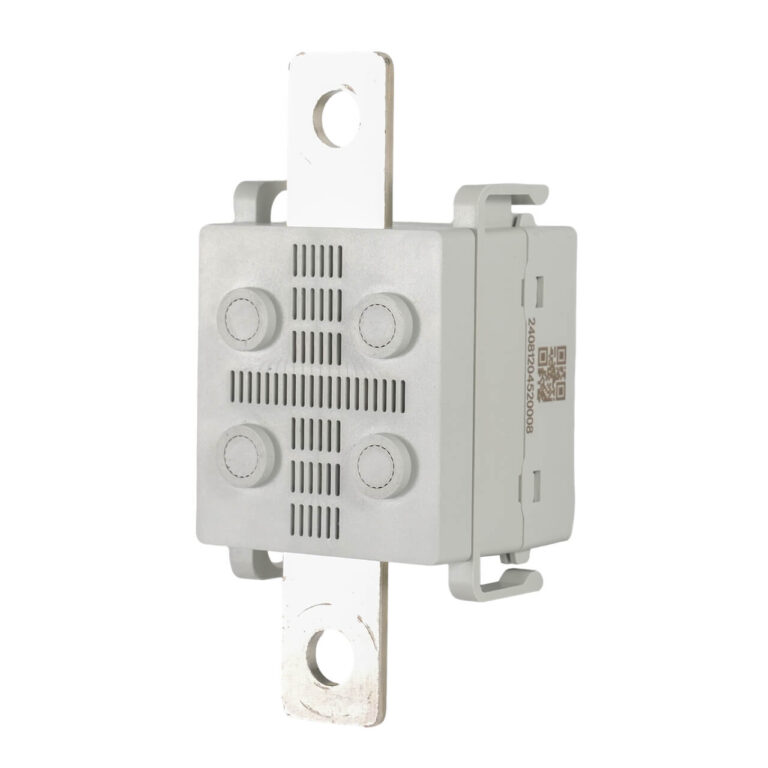

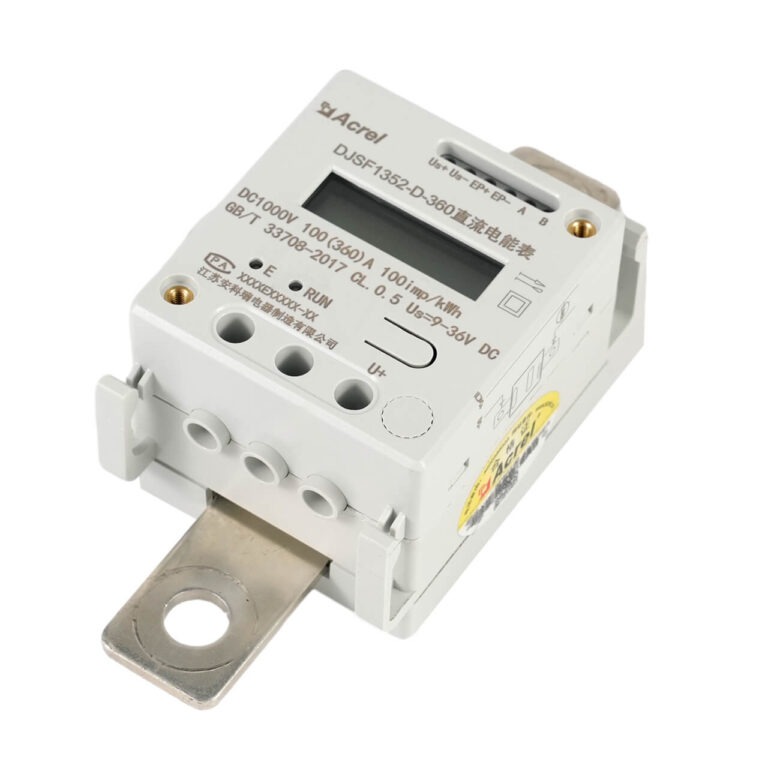

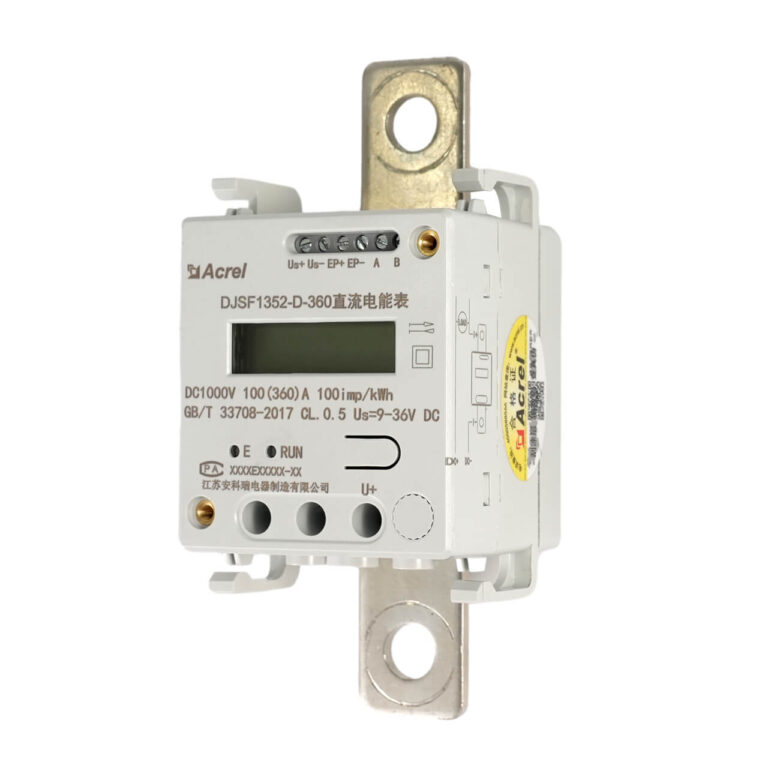

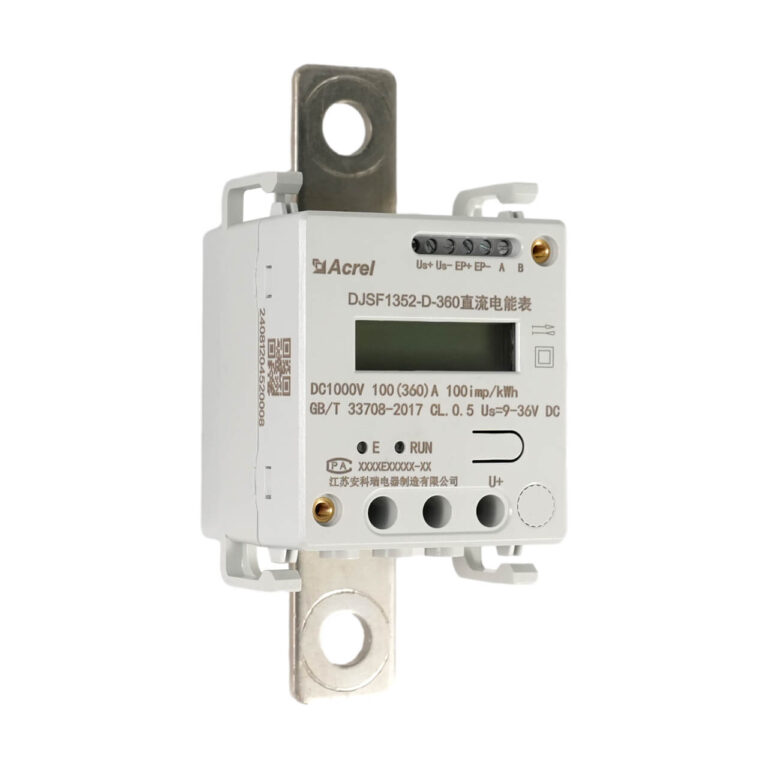

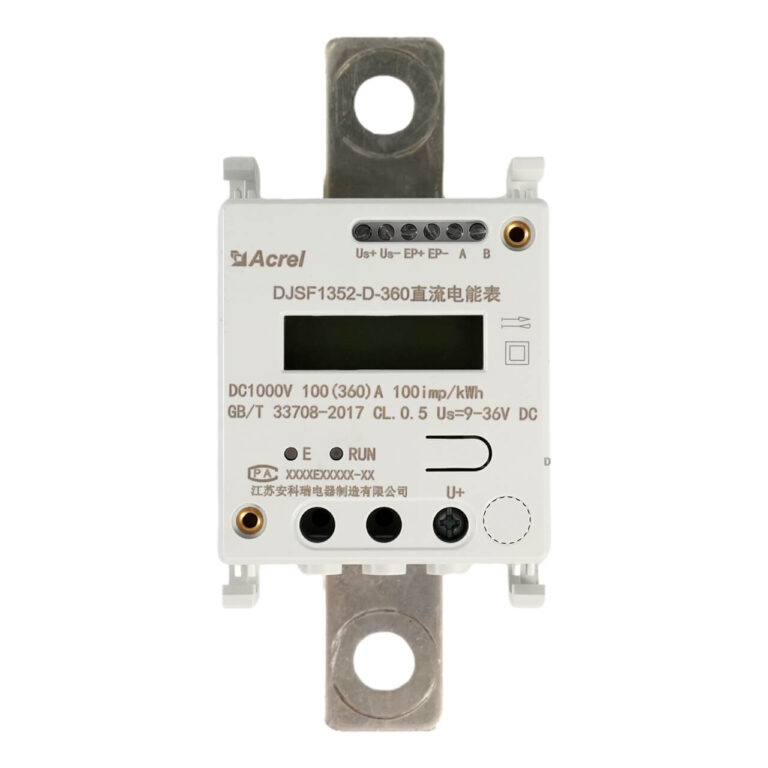

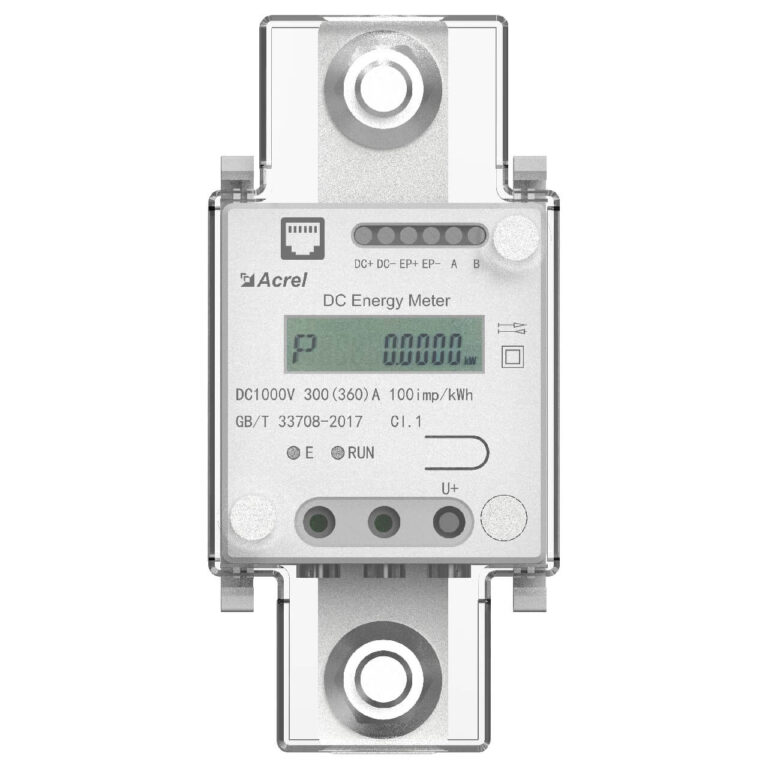

DJSF1352-D-360 is a DC energy meter designed for Chinese DC charging piles, compliant with GB/T 33708. Direct connection up to 360A, voltage DC 0-1000V, accuracy Class B (1%). Measures forward/reverse energy, line loss. RS485 with Modbus/DLT645/DLT698. Optional DJSF1352-L display module. Operating temp -40~70°C. DIN35 rail.
Highlight
Designed for Charging Piles
- Max current 360A direct
- Compliant GB/T 33708-2017
- Voltage DC 0-1000V
- M10 terminal screws
- Compact rail mount
High Reliability
- Operating temp -40~70℃
- Storage temp -40~70℃
- Dielectric 4.4kV/1min
- Impulse ±6kV
- Insulation ≥40MΩ
Flexible Display

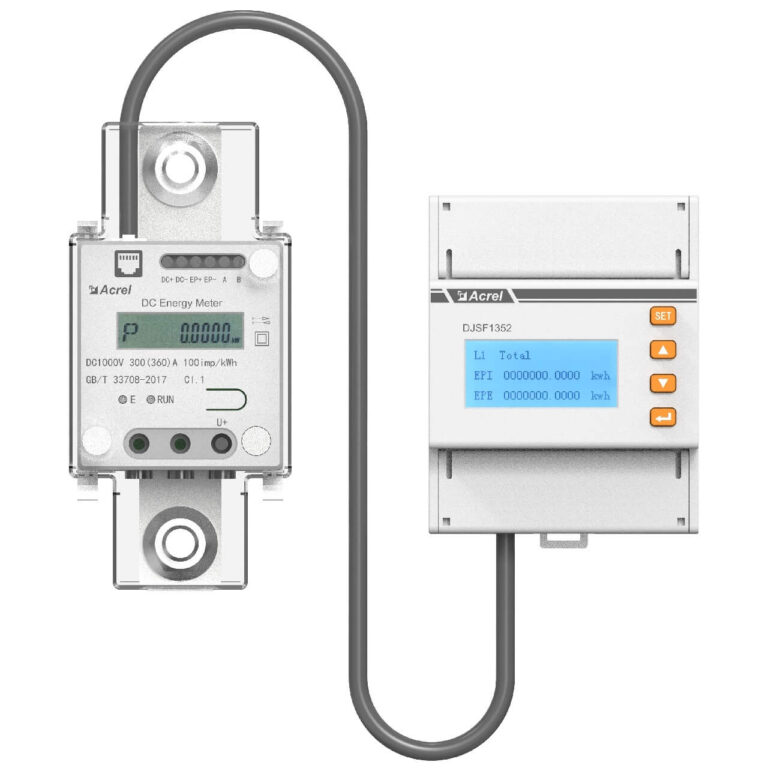

- Optional DJSF1352-L module

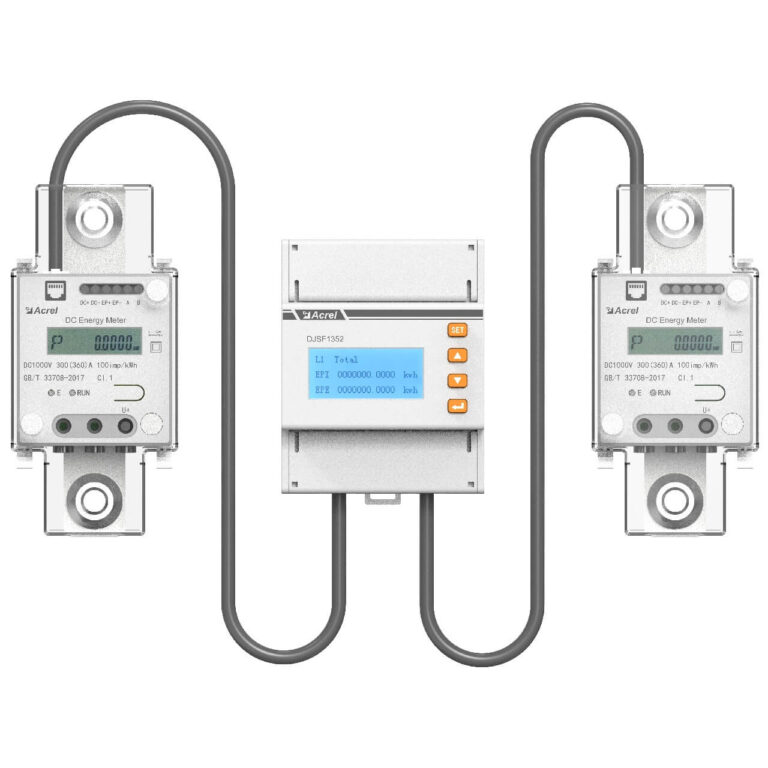

- 1 display + 2 meters
- RJ12 extension
- Local data view
- Parameter setting
Standard Communication
- RS485 interface
- Modbus/DLT645/DLT698
- Wide power DC 9-36V
- Low power ≤3W
- Altitude ≤2000m
Function
| Measurement | Metering | Display/Output | Others |
| DC Voltage | Total Forward | Segment LCD | RS485 Comm |
| DC Current | Total Reverse | Pulse Output | Dual Comm(opt) |
| DC Power | Forward Line Loss | Extension Display(opt) | Multiple Protocols |
| Internal Temp | Reverse Line Loss | Local Setting | Password Protection |
| Lossless Energy | Data Retention |
Specification
| Parameter | Specification |
| Voltage Input | DC 0-1000V |
| Current Input | DJSF1352-D-360:100(360)A (GB/T 33708-2017) |
| Accuracy Class | Class B (Class 1) |
| Energy Metering | Forward/Reverse Active, Line Loss, Lossless |
| Pulse Output | 1 energy pulse, configurable constant |
| Communication | RS485 (standard), optional dual channels |
| Protocols | Modbus-RTU, DL/T 645-2007, DL/T 698 |
| Display | Segment LCD, optional DJSF1352-L module |
| Power Supply | DC 9-36V |
| Power Consumption | ≤ 3W |
| Operating Temp. | -40℃ ～ +70℃ |
| Storage Temp. | -40℃ ～ +70℃ |
| Humidity | ≤95% RH, non-condensing, no corrosive gases |
| Altitude | ≤2000m |
| Insulation Resistance | ≥ 40MΩ |
| Dielectric Strength | Power/Signal/Other: 4.4kV/1min |
| Impulse Withstand | ±6kV |
| MTBF | ≥50000h |
| Mounting | DIN35mm rail |
| Terminal Torque | M2:0.2N·m; M3:0.5N·m; M10:25N·m |
Show More
FAQ
The DJSF1352-D-360 has a maximum measuring current of 360A with direct connection, complying with GB/T 33708-2017 standard.
In the menu, go to “IN” -> “NEg.U” or “NEg.I” and set it to “on”. If not set, the reading may appear negative.
It supports Modbus-RTU, DL/T 645-2007, and DL/T 698 protocols. Default baud rate 9600, no parity, 1 stop bit.
Set it in the menu “SYS” -> “PULS”. The pulse constant range for DJSF1352-D-360 is 1-300 imp/kWh, configurable according to actual requirements.
Connect via RJ12 interface. Supports 1 display module + 1 energy meter, or 1 display module + 2 energy meters. See section 4.4 of the manual for wiring diagrams.
Yes. The meter operates at -40℃ to +70℃, storage -40℃ to +70℃, humidity ≤95% non-condensing, suitable for outdoor cabinet installation.
Set it in the menu “bUS” -> “Addr”, range 1-247. Save and restart to take effect.
M2 terminal: 0.2N·m; M3 screw: 0.5N·m; M10 screw: 25N·m. Use a torque wrench to tighten according to specifications.
Line loss energy is the energy lost in the lines; lossless energy is the net energy after deducting line losses. The sum of the two equals the total energy.
Press and hold the confirm button on any display screen to enter the “PASS” interface. Enter the password (default 0001) to access parameter settings. Press and hold the confirm button to save and exit after configuration.
Summary
Tailored for the Chinese market, this meter offers high-current direct measurement with national standard compliance. Robust design, wide temperature range, and optional display make it a cost-effective choice for reliable DC charging pile energy monitoring.
