Overview

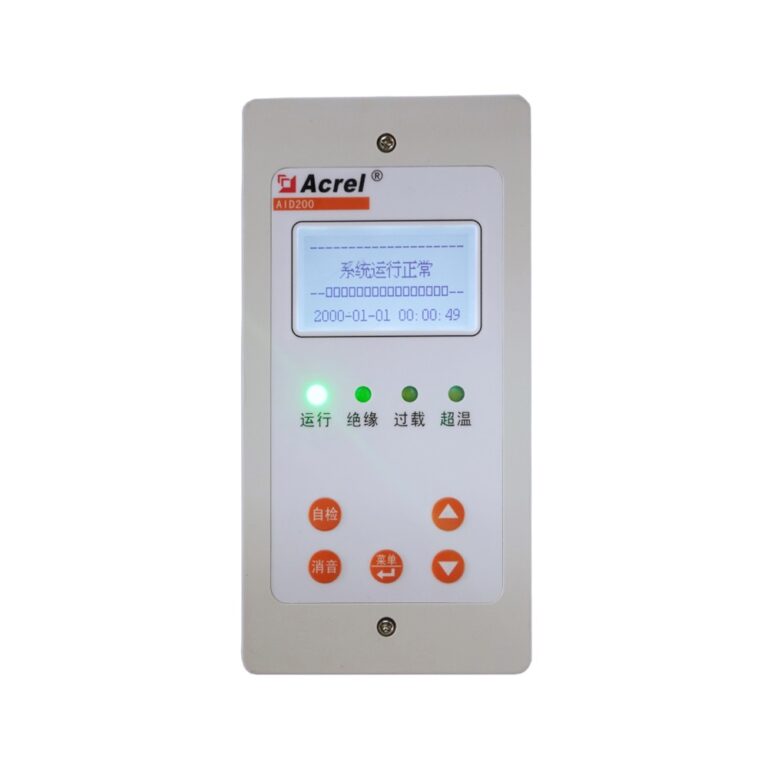

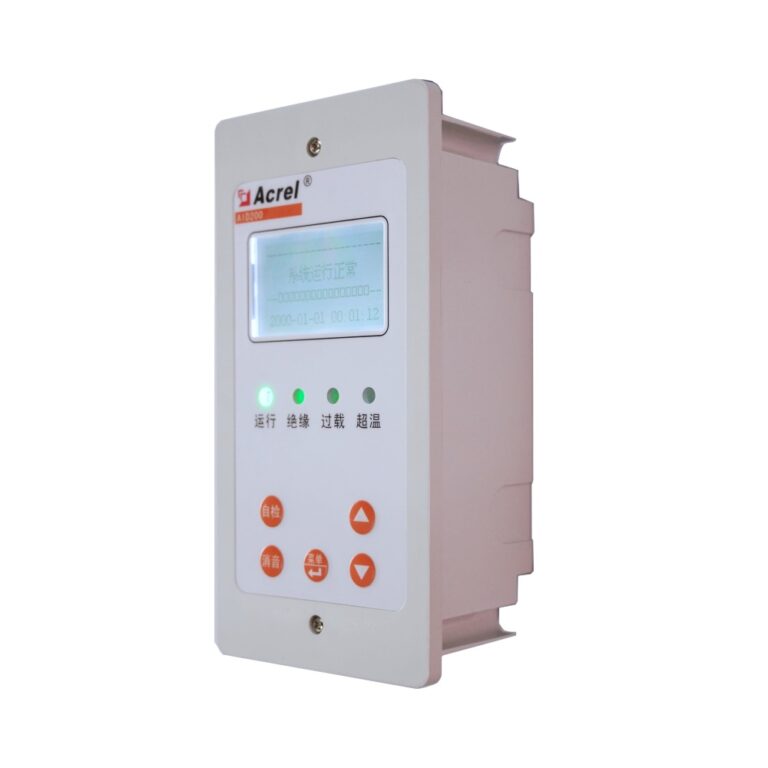

The AID200 is a centralized alarm display unit for medical IT systems. It monitors up to 16 AIM-M300 devices via CAN bus, displaying real-time insulation, load, and temperature data on a 128×64 LCD. It provides audible/visual alarms for faults and enables remote parameter configuration. The 172×87 mm unit mounts flush in operating room or ICU panels.
Highlight
Large LCD Display
- 128×64 dot-matrix
- Shows all system parameters
Multi-unit CAN Networking
- Up to 16 AIM-M300 devices
- Reliable CAN bus communication
Comprehensive Alarms
- Insulation, overload, overtemp
- Device failure, audible/visual
Remote Configuration
- Set parameters for all monitors
- No on-site access needed
Function
| Function | Description |
| Remote Monitoring | Continuously acquires insulation, load, and temperature data from up to 16 AIM-M300 monitors via CAN bus. |
| Large LCD Display | 128×64 dot-matrix LCD shows real-time values, alarm status, and system configuration. |
| Audible & Visual Alarm | Provides buzzer and LED indication for insulation fault, overload, overtemperature, device failure. |
| Alarm Settings | Supports insulation alarm (10–999 kΩ), load current alarm (0–99 A), and temperature alarm (0–+200 ℃) configuration. |
| Parameter Configuration | Remotely sets parameters of all connected AIM-M300 monitors (e.g., alarm thresholds, address). |
| Event Logging | Stores up to 50 fault events with time stamps for later analysis. |
| Communication | CAN interface, custom protocol. |
| Power Supply | DC 24 V, ≤ 0.6 W. |
| Mounting | Flush, panel, or DIN rail mounting, 172×87 mm (H×W). |
Specification
| Parameter | Value |
| Model | AID200 |
| Compatible Insulation Monitors | AIM-M300 (up to 16 units) |
| Auxiliary Power | DC 24 V |
| Power Consumption | ≤ 0.6 W |
| Alarm Types | Insulation fault, overload, overtemperature, device failure |
| Alarm Method | Audible (buzzer) + visual (LED) |
| Insulation Alarm Setting | 10 – 999 kΩ (configurable) |
| Load Current Alarm Setting | 0 – 99 A (configurable) |
| Temperature Alarm Range | 0 – +200 ℃ (configurable) |
| Communication Interface | CAN, custom protocol |
| Display | 128×64 dot-matrix LCD |
| Event Records | Up to 50 |
| Mounting Method | Flush / panel / DIN rail |
| Dimensions (H×W×D) | 172 × 87 × 63 mm |
| Panel Cutout | Refer to installation manual |
| Protection Degree | IP40 (front panel) |
Show More
FAQ
The AID200 can connect to up to 16 AIM-M300 insulation monitors via CAN bus.
AID150 uses RS485 communication (Modbus-RTU), while AID200 uses CAN bus (custom protocol). Both support up to 16 monitors and have identical display and alarm functions.
Yes, the 128×64 LCD shows detailed real-time data including insulation resistance, load current, transformer temperature, and alarm status for each connected system.
It supports insulation fault, overload, overtemperature, and device failure alarms (e.g., communication loss, internal fault). Audible alarm can be silenced manually.
For reliable communication, connect all devices in a daisy-chain and add a 120 Ω terminating resistor at both ends of the bus.
The AID200 stores up to 50 fault events with time stamps, which can be viewed on the LCD.
Summary
The AID200 is a powerful centralized alarm unit designed for large medical IT systems requiring multi-device monitoring via CAN bus. Its large LCD screen provides clear visibility of system status, while the ability to connect up to 16 AIM-M300 monitors makes it ideal for operating suites, ICUs, and central engineering stations. Comprehensive alarm functions and remote configuration capabilities enhance operational efficiency and ensure rapid response to electrical anomalies, guaranteeing uninterrupted power supply to critical medical areas.
