Overview

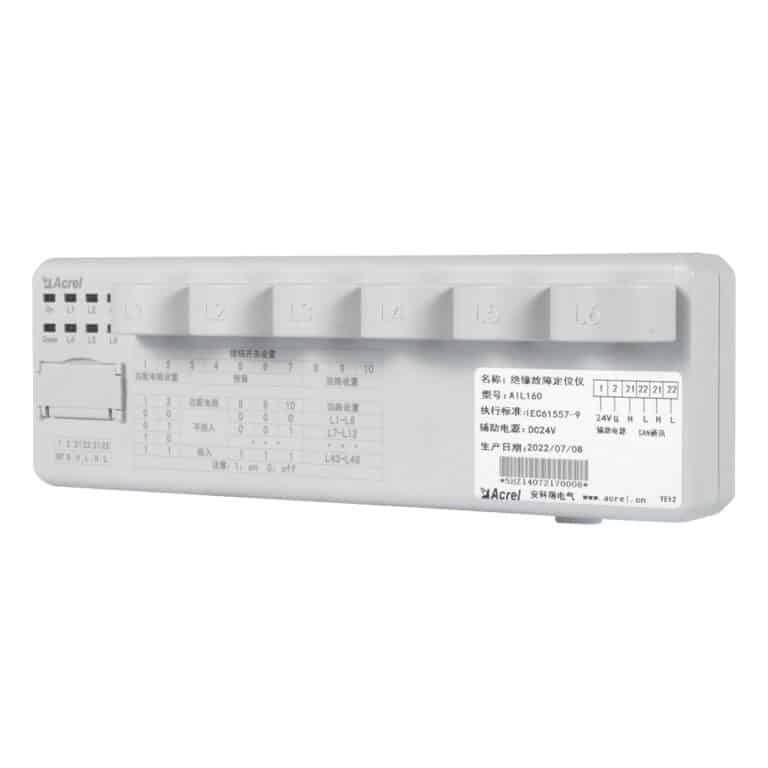

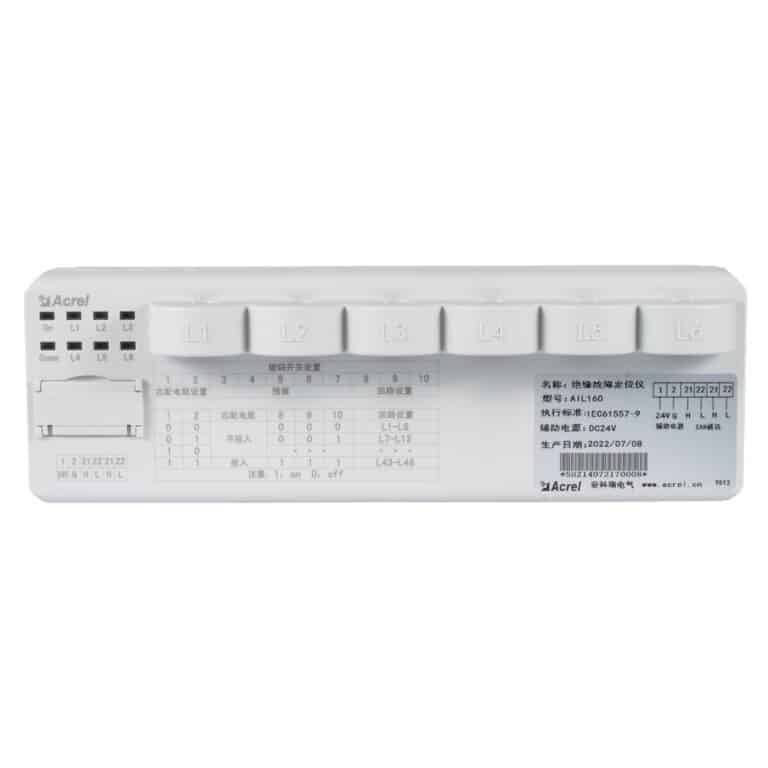

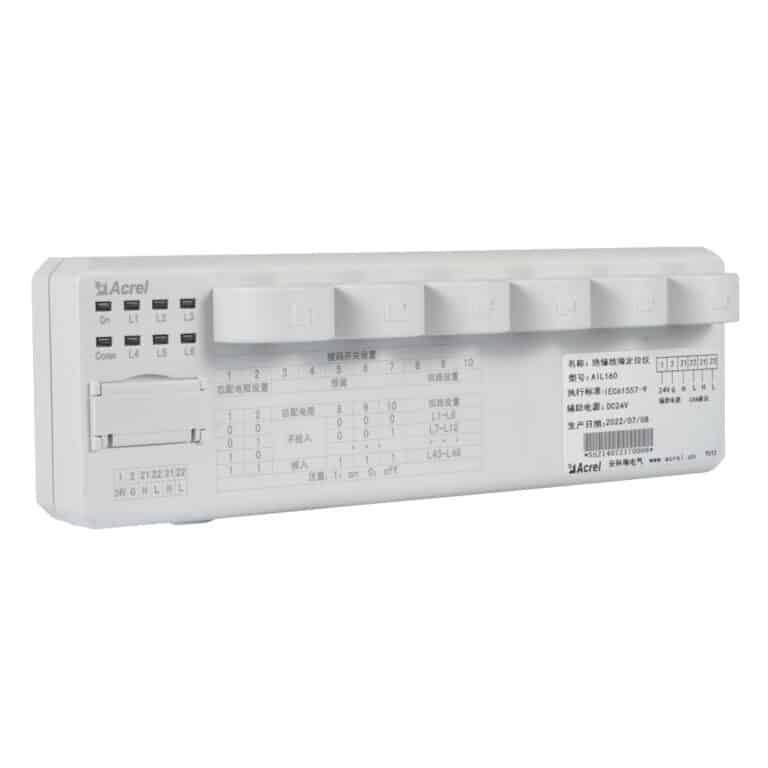

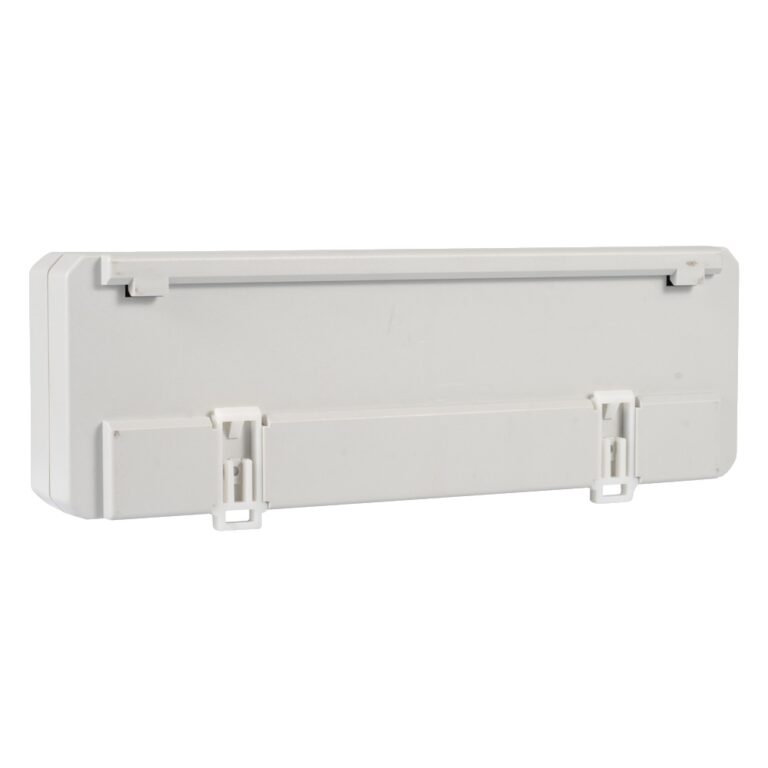

The AIL160-6 insulation fault locator is designed to work with the AIM-M300/SG insulation monitor and ASG150 test signal generator. It detects signals injected into the system and accurately locates the insulation fault branch in up to 6 circuits, ensuring quick troubleshooting in medical IT systems. Multiple AIL160 units can be combined to monitor up to 48 circuits via DIP switch configuration.
Highlight
6-Circuit Location
- 6 circuits, ≤5s response
- Detects ASG150 signals
Wide Power Supply
- DC 18-36V input
- ≤2VA consumption
Flexible Expansion
- DIP switch for loop set
- Up to 48 circuits total
Reliable Communication
- CAN bus communication
- Built-in term. resistor
Function
| Function | Description |
| Insulation Fault Location | Locates insulation fault branches in up to 6 circuits by detecting signals from ASG150. Response time ≤5s. |
| Signal Reception | Receives test signals injected by ASG150 into the IT system. |
| CAN Communication | Communicates with AIM-M300/SG and other devices via CAN bus, custom protocol. |
| Loop Expansion | Supports expansion up to 48 circuits via DIP switch settings (8-10 bits). |
| Terminating Resistor | Built-in 120Ω terminating resistor can be enabled/disabled via DIP switch. |
| Power Indication | LED indicator for power status (on/off). |
Specification
| Parameter | Value |
| Model | AIL160-6 (6 loops) |
| Auxiliary Power | DC 18…36V |
| Power Consumption | ≤2VA |
| Monitored System Voltage | AC 0…242V |
| Monitored System Frequency | 45…60Hz |
| Number of Fault Location Loops | 6 (expandable to 48 via multiple units) |
| Response Time | ≤5s |
| Communication | CAN bus, custom protocol |
| Terminating Resistor | Built-in 120Ω, selectable via DIP switch |
| Loop Expansion | DIP switch (bits 8-10) for loop range: 000 = L1~L6, 001 = L7~L12, …, 111 = L43~L48 |
| Indicator | Power-on LED |
Show More
FAQ
One AIL160-6 can locate faults in up to 6 circuits.
Yes, up to 8 AIL160 units can be combined to monitor up to 48 circuits. The loop range for each unit is set via DIP switches (bits 8-10).
The response time is ≤5 seconds.
Set DIP switches 1 and 2 both to “1” to enable the built-in 120Ω terminating resistor. Set to “0” to disable.
It requires a DC 24V auxiliary power supply (18…36V range), with maximum power consumption of 2VA.
No, it must be used together with AIM-M300/SG insulation monitor and ASG150 test signal generator as part of the medical IT insulation fault location system.
Summary
The AIL160-6 insulation fault locator is a compact and expandable solution for medical IT systems requiring branch insulation monitoring. Working with AIM-M300/SG and ASG150, it pinpoints insulation faults within seconds in up to 6 circuits per unit. Its DIP-switch-based expansion allows up to 48 circuits to be monitored, making it ideal for operating suites, ICUs, and large-scale hospital electrical networks. With reliable CAN communication, low power consumption, and easy installation, it ensures rapid response and minimal downtime in critical areas.
