Overview

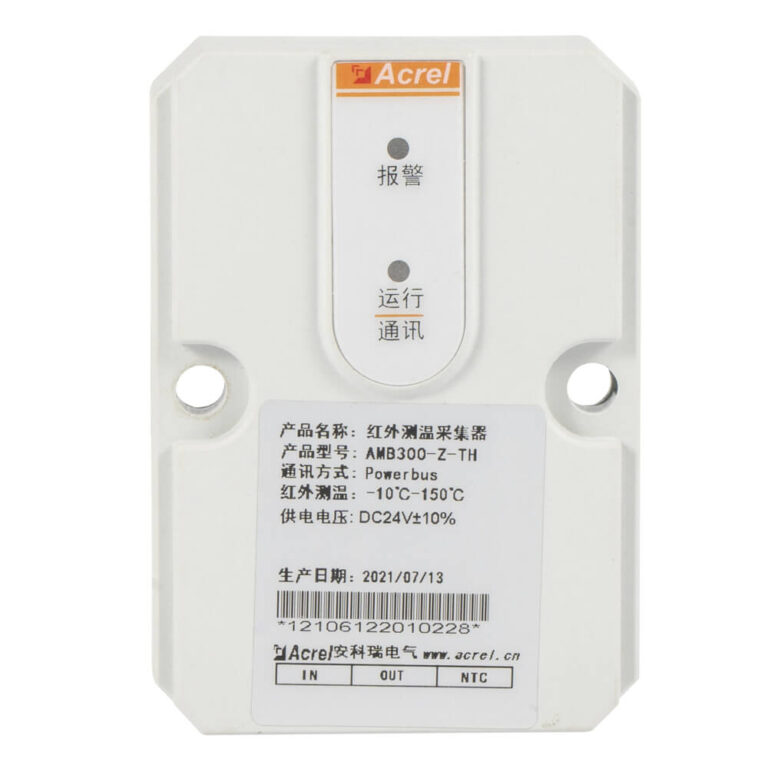

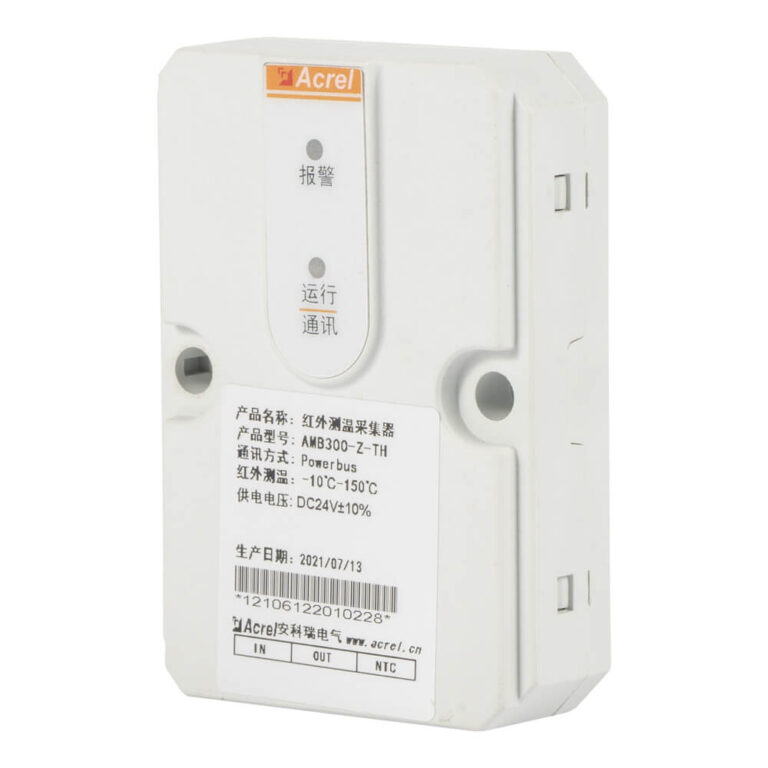

AMB300 is a non-contact infrared temperature measurement solution for insulated busway connectors. It comprises AMB300 infrared modules and AMB310 collector, using two-bus communication. Measures temperature (and optional humidity) of each phase. Modules screw-fixed, collector DIN35 rail mounted, supports up to 160 modules. Non-contact, high accuracy, easy deployment. Ideal for busway connector temperature monitoring.
Highlight
Non-contact Infrared Measurement
- No physical contact with busbar
- Temperature range -10…150℃
- Accuracy ±3℃ (-10…85℃)
- Accuracy ±5℃ (85…150℃)
- Array & single point options
Array & Single Point Options

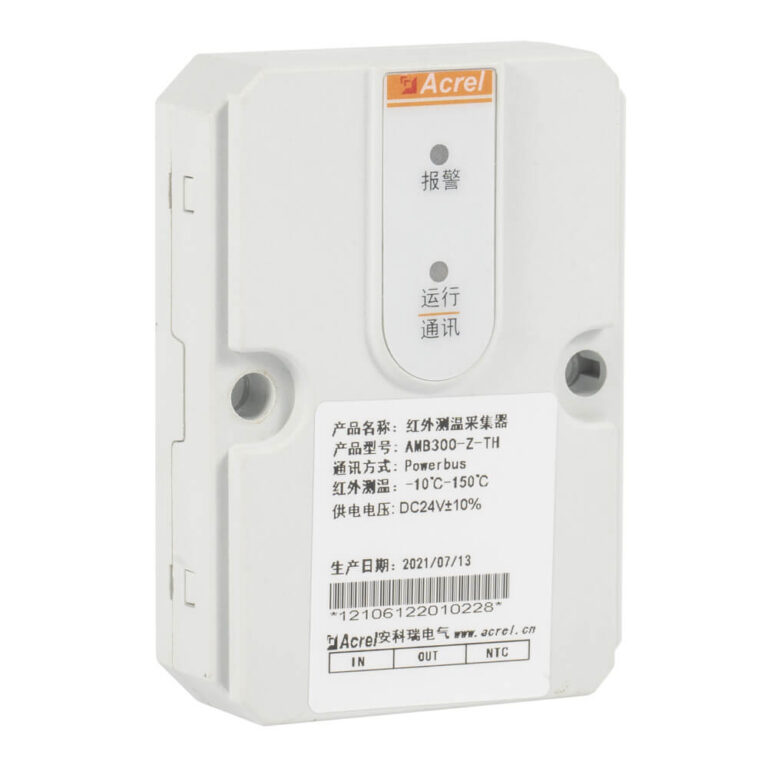

- AMB300-Z: 1 large-area array

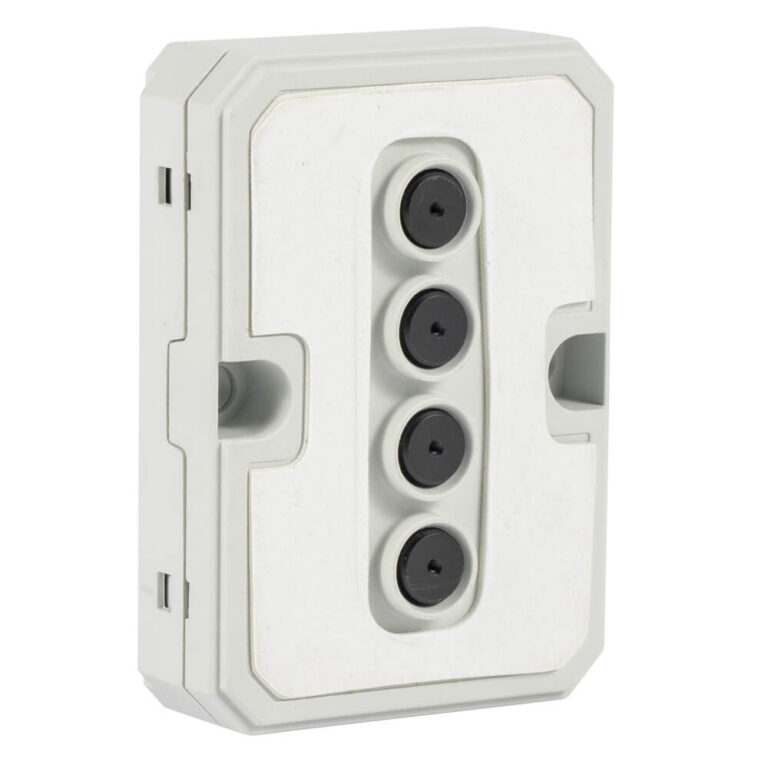

- AMB300-D4/15: 4 points, 15mm spacing

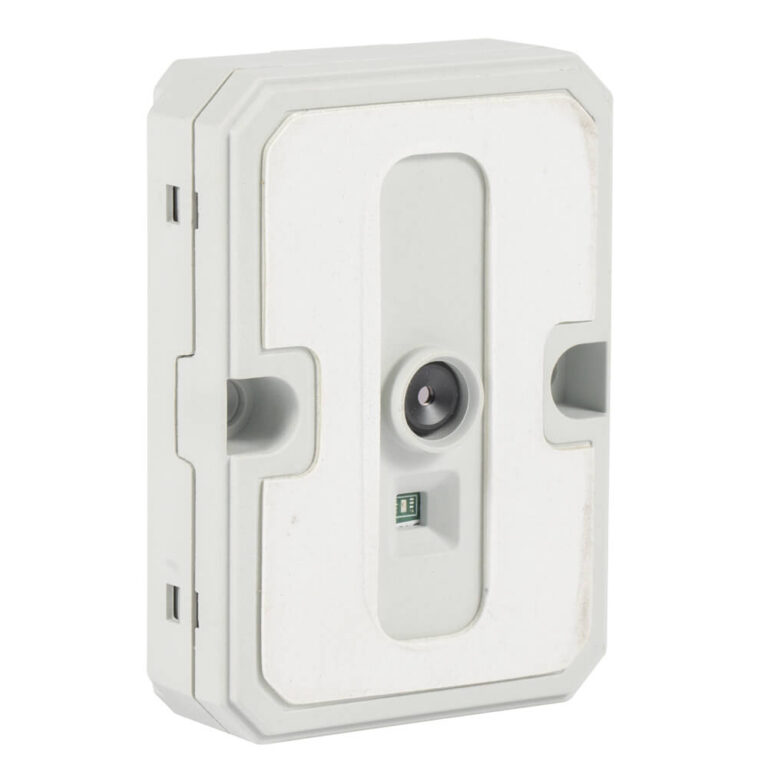

- AMB300-D1: 1 single point
- Humidity optional (-H models)
- Humidity range 0%～95% RH

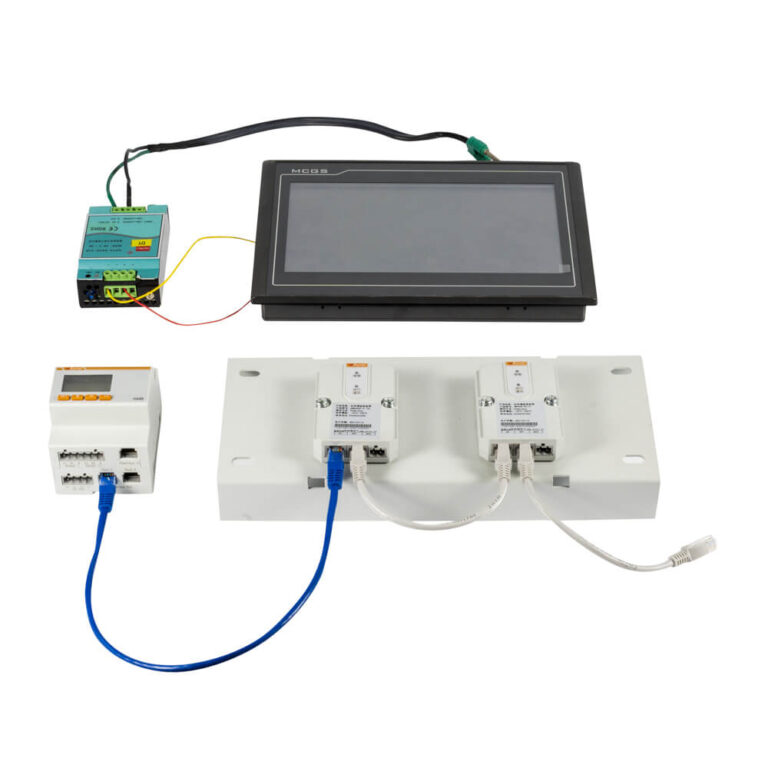

Two-Bus Communication & Collector
- AMB310 collector, DC 24-30V power
- 2 downstream two-bus ports
- Up to 160 modules per collector
- 2 RS485 uplink to monitoring system
- Max line length 250m per port

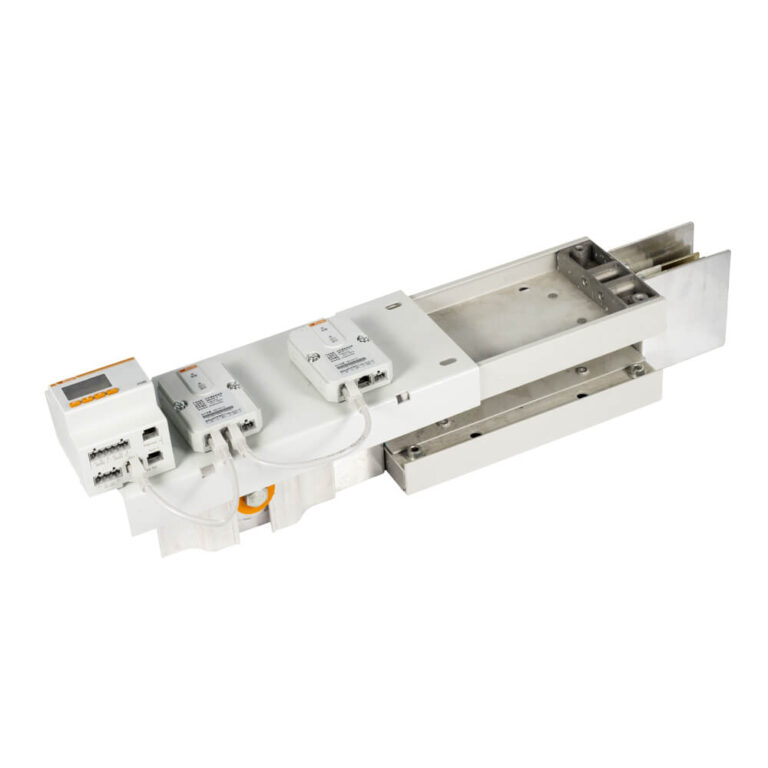

Easy Installation & Display

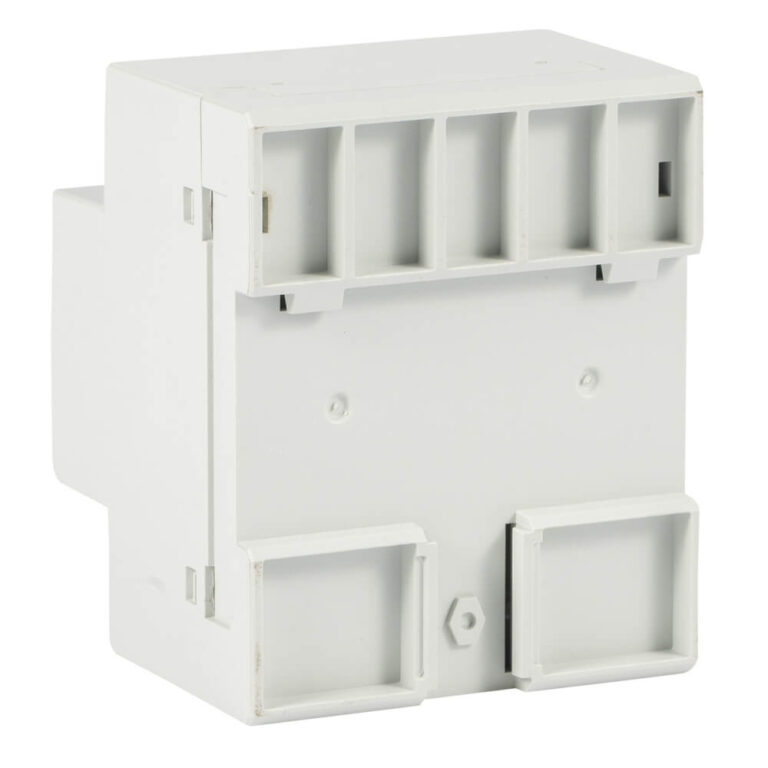

- AMB310: DIN35 rail mounting

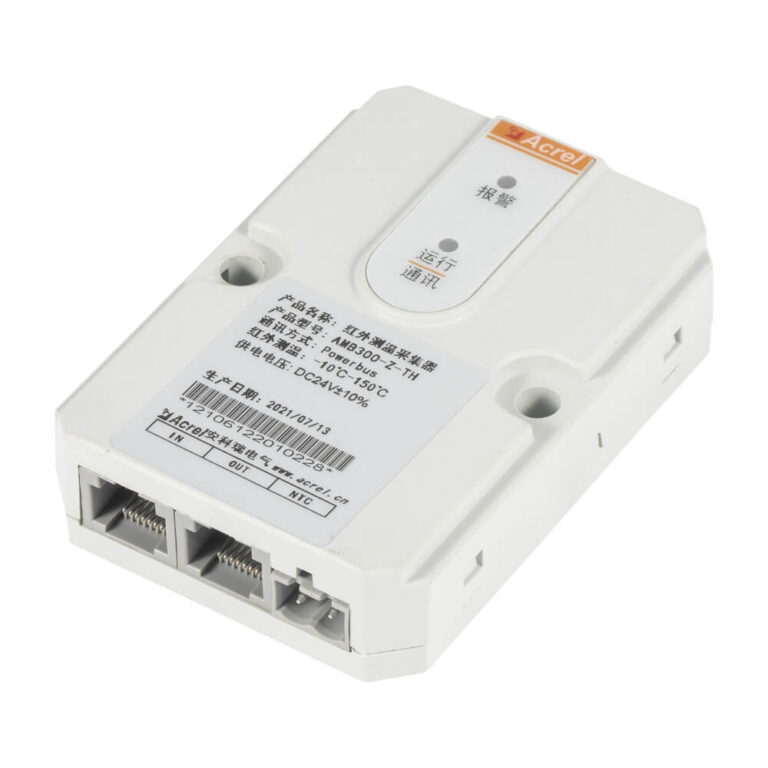

- AMB300: screw fixing
- RJ45 daisy-chain or ant clip wiring

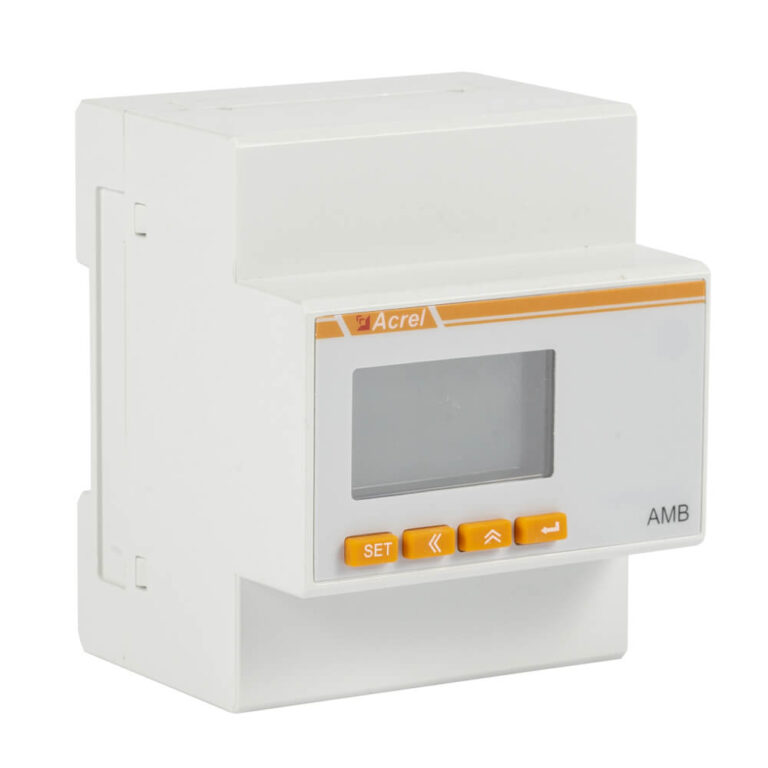

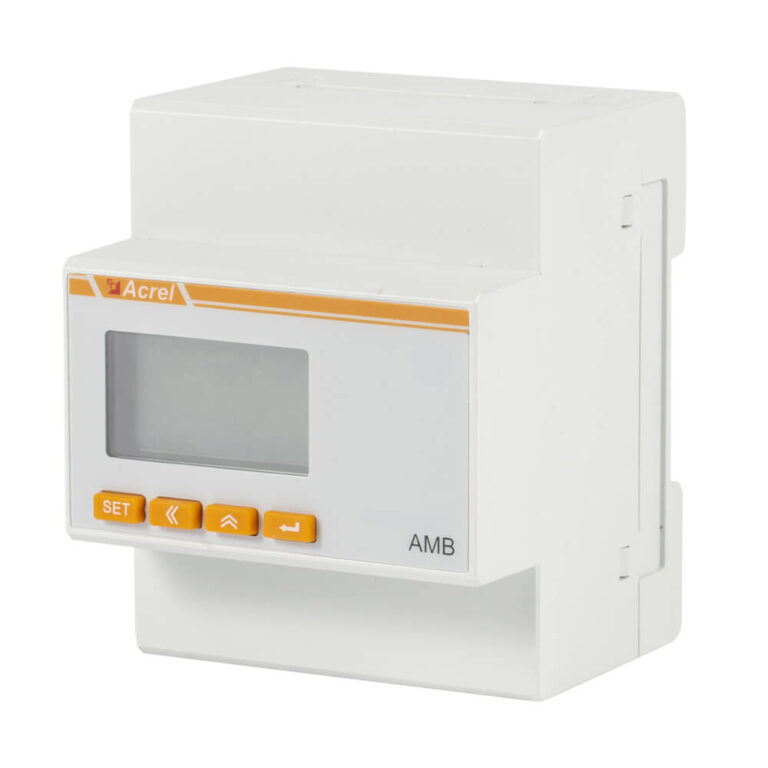

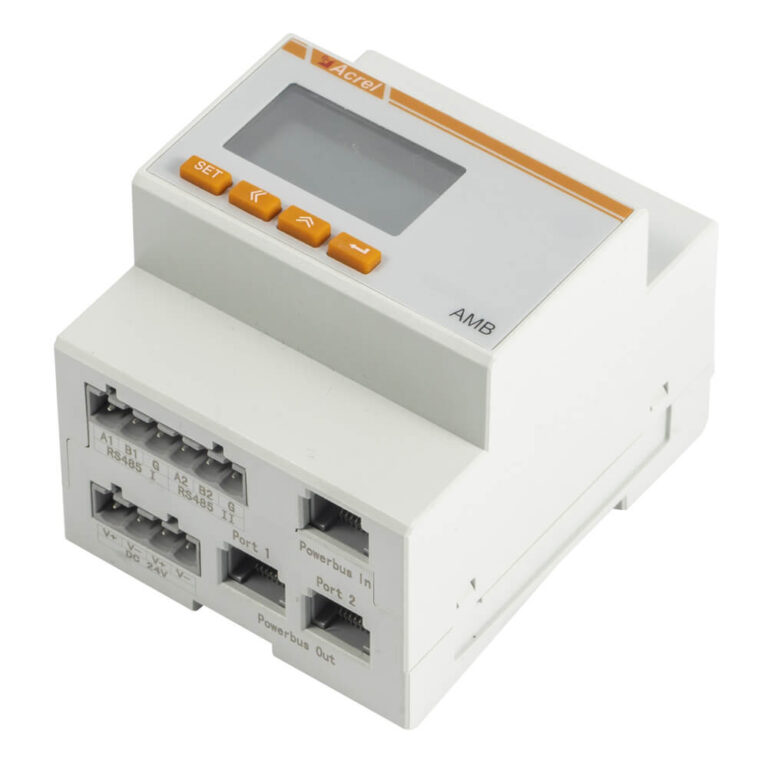

- AMB310 with LCD display & buttons
- IP51 protection (modules/collector)
Function
| Infrared Temperature Measurement | • AMB300-Z: 1 large-area array temperature • AMB300-D4/15: 4 single points, 15mm spacing • AMB300-D1: 1 single point • Measurement range: -10℃…150℃ • Accuracy: ±3℃ (-10…85℃), ±5℃ (85…150℃) |
| Humidity Monitoring (Optional) | • Available on -H / -TH models • Measurement range: 0%～95% RH • Accuracy: ±5% RH • Real-time humidity reading |
| Two-Bus Communication | • AMB300 modules communicate via two-bus • Powered by AMB310 collector • RJ45 daisy-chain or ant clip wiring • Max 80 modules per port • Max line length 250m per port |
| AMB310 Collector | • 2 downstream two-bus ports • Up to 160 modules total • 2 RS485 uplink ports • DC 24-30V power supply • 2 relay outputs for alarm |
| Display & Operation | • AMB310 with LCD display • Buttons: SET, ▲, ▼, Enter • Display port1/port2 module status • Configurable parameters: address/baud/parity • Auto-addressing & manual addressing |
| Alarm Function | • Configurable alarm thresholds • 2 relay outputs (AMB310) • Relay configurable for alarm or remote control • Alarm status readable via communication |
Show More
Specification
| Parameter | Value |
| Measurement (AMB300-Z) | 1 large-area array temperature, humidity (optional) |
| Measurement (AMB300-D4/15) | 4 single points (15mm spacing), temperature |
| Measurement (AMB300-D1) | 1 single point, humidity (optional) |
| Temperature Range | -10℃…150℃ |
| Temperature Accuracy | ±3℃ (-10…85℃), ±5℃ (85…150℃) |
| Humidity Range | 0%～95% RH (optional models) |
| Humidity Accuracy | ±5% RH |
| Power Supply (AMB300) | Powered by AMB310 via two-bus |
| Power Supply (AMB310) | DC 24-30V (30V recommended) |
| Communication (AMB300) | Two-bus (internal) |
| Communication (AMB310) | Two-bus downstream, RS485 upstream (Modbus-RTU) |
| RS485 Default Settings | 57600, 8, N, 1 |
| Max Modules per AMB310 | 160 (80 per port) |
| Max Two–Bus Line Length | 250m per port |
| Digital Outputs (AMB310) | 2 relays, configurable (alarm/remote) |
| Mounting (AMB300) | Screw fixing |
| Mounting (AMB310) | DIN35 rail |
| Protection Grade | IP51 (both modules and collector) |
| Pollution Degree | 2 |
| Operating Temp. (AMB300) | -20℃…85℃ |
| Storage Temp. (AMB300) | -40℃…70℃ (-40℃…100℃ for D4/15) |
| Operating Temp. (AMB310) | -20℃…55℃ |
| Storage Temp. (AMB310) | -40℃…70℃ |
| Humidity | ≤93% RH (non-condensing) |
| Altitude | ≤2000m |
| EMC Compatibility | ESD: level 4; Fast transient: level 4 |
Show More
FAQ
AMB300 modules are powered by the AMB310 collector via the two-bus line, no separate power supply needed.
AMB310 has 2 downstream two-bus ports, each supporting up to 80 modules, total up to 160 modules.
AMB300-Z monitors 1 large-area array temperature; AMB300-D4/15 monitors 4 single points (15mm spacing); AMB300-D1 monitors 1 single point. Models with -H or -TH suffix support humidity monitoring.
Accuracy is ±3℃ in the range -10…85℃, and ±5℃ in the range 85…150℃.
AMB310 supports auto-addressing and manual addressing. Enter the auto-addressing interface via buttons, set the starting address, and addresses are automatically assigned; or manually assign addresses to individual modules.
Maximum line length per port is 250m. It is recommended to use CAT6a or higher oxygen-free copper Ethernet cable or 1.5mm² copper wire (for ant clip wiring).
Summary
The AMB300 solution offers non-contact temperature monitoring, eliminating physical contact with live busbars. The AMB310 collector supports up to 160 modules via two-bus, reducing wiring complexity. Array and single-point options cover different monitoring needs. With ±3℃ accuracy in the critical -10…85℃ range and optional humidity sensing, it provides comprehensive insight into connector health while simplifying deployment and maintenance.
