Overview

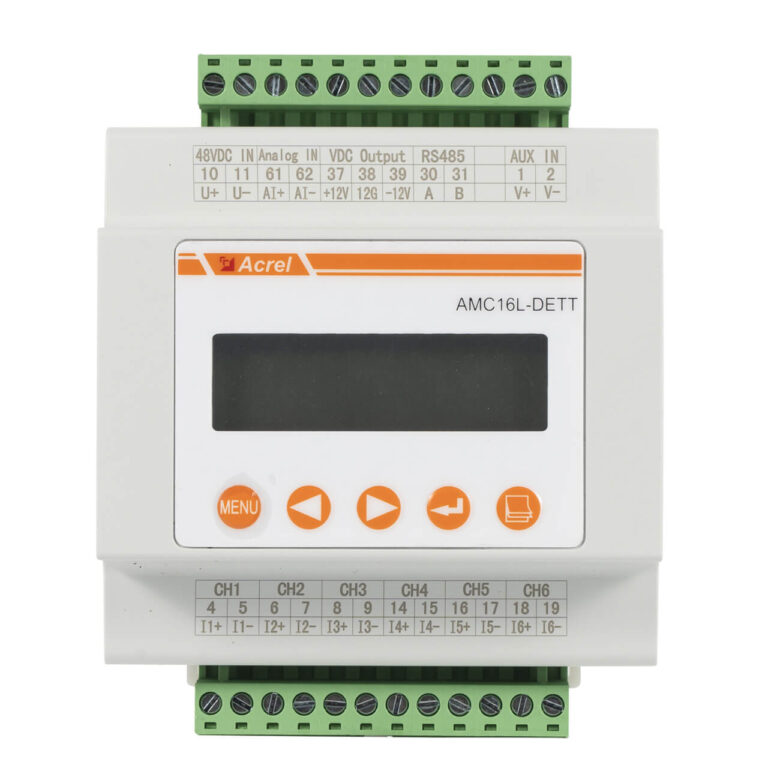

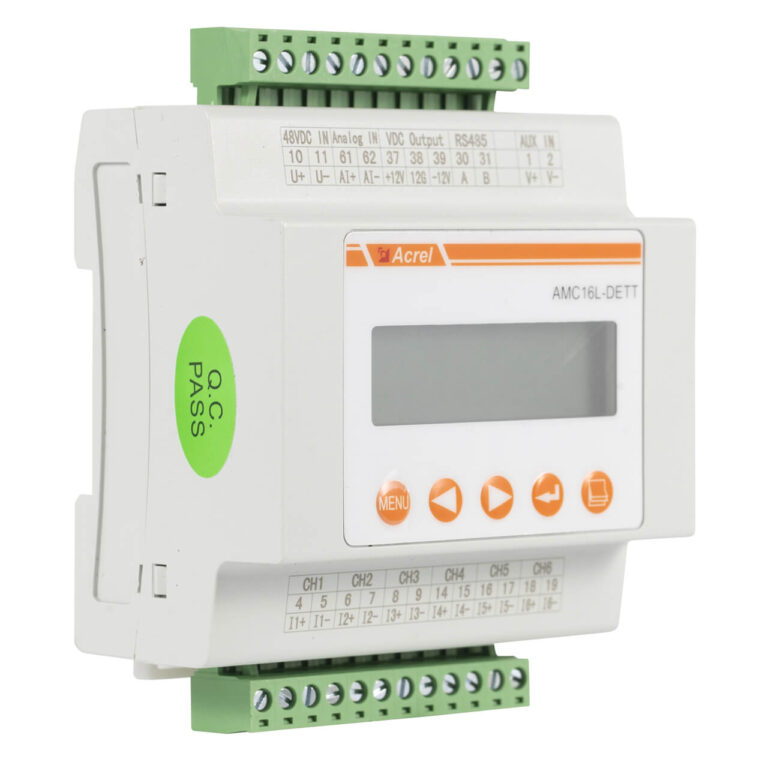

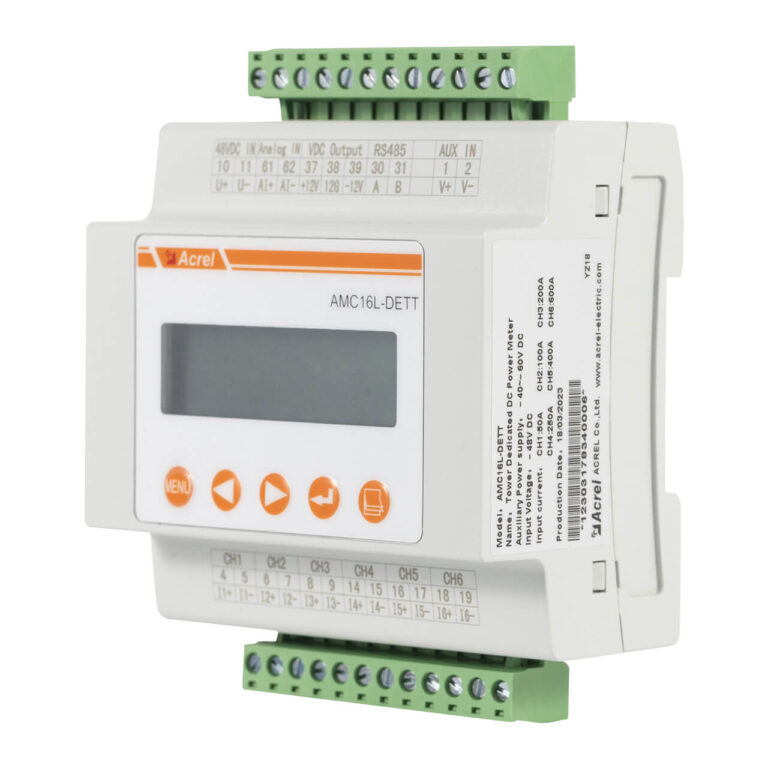

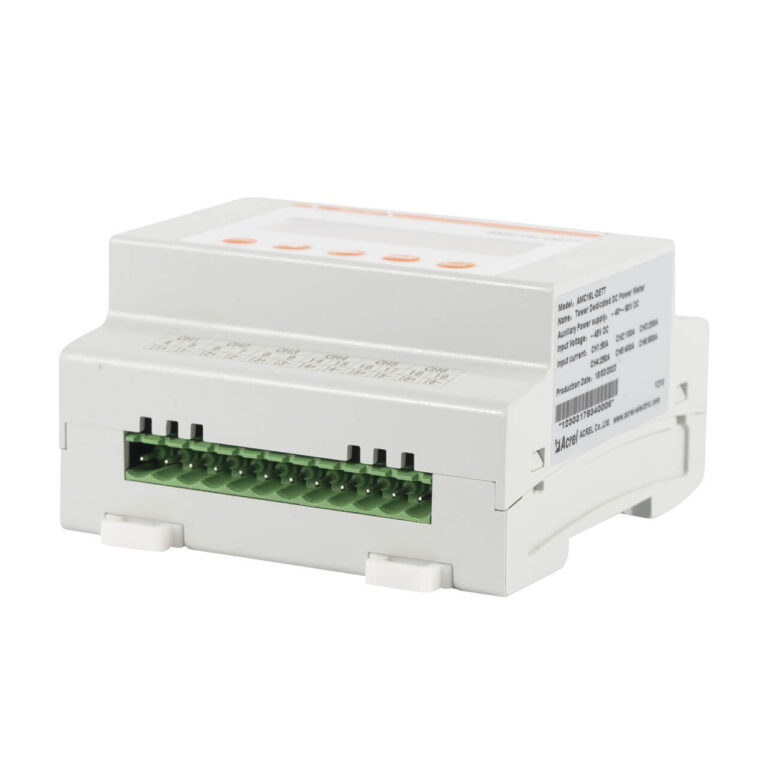

The AMC16L-DETT is a DC energy metering module with LCD display, specifically designed for shared telecommunication base stations. It independently measures voltage, current, power, and energy across six DC circuits, features a built-in ±12V power supply for Hall sensors, and supports local data viewing and parameter setting. Ideal for multi-operator energy allocation in base stations, DC monitoring in data centers, and industrial DC systems.
Highlight
Multi-Circuit DC Metering
- 6 independent DC metering channels
- Default: Total, Mobile, Unicom, Telecom, 2 reserved
- Customizable channel-user assignment
- Ideal for multi-operator energy allocation
High Accuracy Measurement
- ±2.5% accuracy for 1%In~10%In, ±2% for I＞10%In
- Voltage resolution 0.01V, current 0.01A
- Power resolution 0.01kW, energy 0.01kWh
- Compliant with China Tower Q/ZTT 2205-2017
Local Display & Operation
- Built-in LCD for real-time data display
- 5-button keypad for menu navigation
- Password protection against misoperation
- Page key for quick 6-channel switching
Smart O&M & Easy Installation
- 2MB memory for historical energy and alarms
- Built-in ±12V Hall power, no external supply
- RS485 with YD/T1363.3 and Modbus-RTU protocols

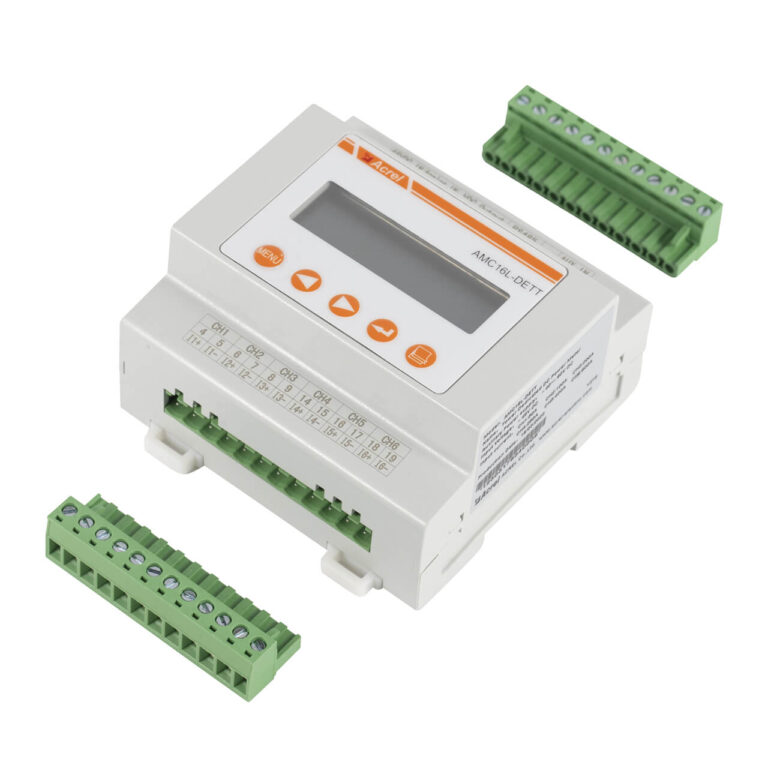

- 35mm DIN rail, split-core Hall sensor, no power-off install
Function
| Measurement | Metering | Others |
| DC Voltage (6ch) | Total & Branch DC Energy | 6 independent circuits |
| DC Current (6ch) | Import/Export Energy | Historical data (2MB) |
| DC Power (6ch) | Monthly Frozen Energy | Alarm logging |
| Power Factor | Sub-item Statistics | Broadcast time sync |
| Frequency | 4-Quadrant Reactive Energy | RS485 (YD/T1363.3/Modbus) |
| AC Mains (AMC16L-DETT/AI: 4-20mA input) | Hall power (±12V/100mA; -12V/50mA) |
Specification
| Item | Parameter |
| DC Input Voltage | Rated -48VDC, range -40V～-60VDC |
| DC Current Input | 6 Hall sensors: total 200A/5V, Mobile/Unicom/Telecom/reserved 50A/5V or 100A/5V (specify when ordering) |
| AC Mains Input | 1ch 0-5VDC or 4-20mA (AMC16L-DETT/AI only) |
| Overload Capability | Voltage:1.2x continuous,2x 1s; Current:1.2x continuous,10x 1s |
| Accuracy | ±2.5% for 1%In≤I≤10%In; ±2% for I＞10%In |
| Measurement Resolution | Voltage 0.01V, Current 0.01A, Power 0.01kW, Energy 0.01kWh |
| Auxiliary Power | -40V～-60VDC, consumption ≤2W (without Hall load) |
| Hall Sensor Power | +12V/100mA, -12V/50mA |
| Data Storage | 2MB for historical energy and alarms |
| Clock Accuracy | ≤0.5s/day (23℃), ≤1s/day (-20℃～60℃) |
| Insulation Resistance | ≥40MΩ |
| Operating Environment | Temp -20℃～+60℃, humidity ≤98% non-condensing, altitude ≤4000m |
| Protection Grade | IP20 |
| Dimensions | 89.7 × 87.8 × 52mm (excl. terminals) |

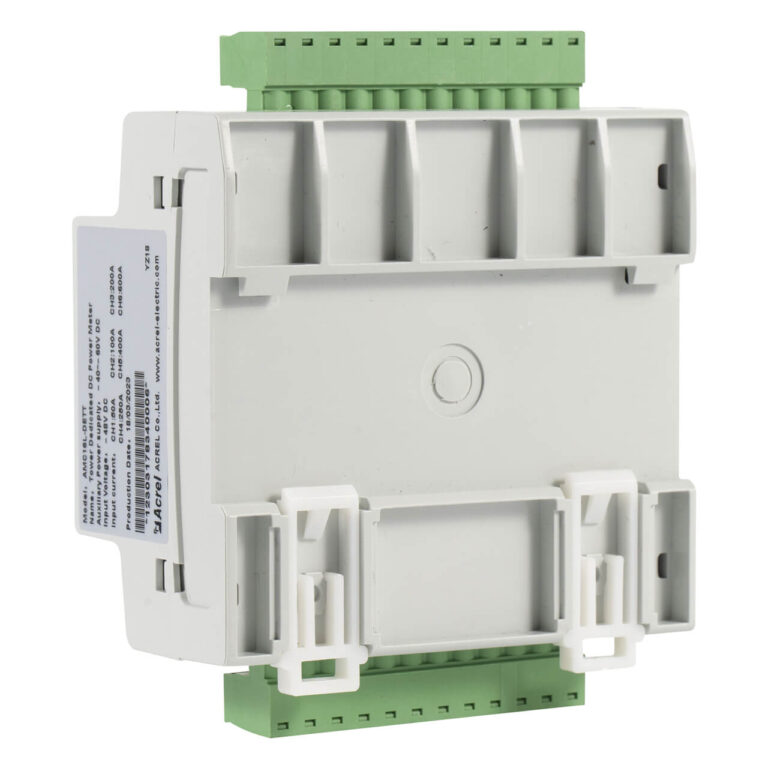

| Mounting | 35mm DIN rail |
| Communication | RS485, baud rate 1200/2400/4800/9600bps adjustable, protocols YD/T1363.3-2014/Modbus-RTU |
Show More
FAQ
The AMC16L-DETT adds an LCD display and 5 operation buttons to the AMC16-DETT, enabling local viewing of real-time data and parameter setting without relying on host software.
After power-up, the LCD defaults to displaying the current status of 6 channels. Press the page key to switch between channels 1-6, and use the left/right keys to cycle through voltage, current, power, energy, total energy, AC mains, and time screens.
On the power-up screen, press the menu key, enter the default password “1” (use left/right keys to move cursor, page key to increase value), and press enter to access the menu setting interface for communication, time, energy, system, etc.
In the menu setting interface, enter the “System” submenu and select “Current Ratio”. CT1-CT6 correspond to channels 1-6. Use the page key to adjust the value (default 40, max 999) and press enter to save.
First check if auxiliary power terminals 1 and 2 are connected to -48V DC with correct polarity. If power is normal, check if the Hall sensor load is causing insufficient supply—try disconnecting Hall sensors and restarting the module.
Summary
The AMC16L-DETT offers six independent DC metering channels, high accuracy, and standard RS485 communication, solving energy allocation challenges in multi-operator base stations. The built-in LCD enables local viewing and configuration, while integrated Hall sensor power simplifies wiring. With 2MB storage for historical data, it provides reliable support for energy saving and digital management.
