Overview

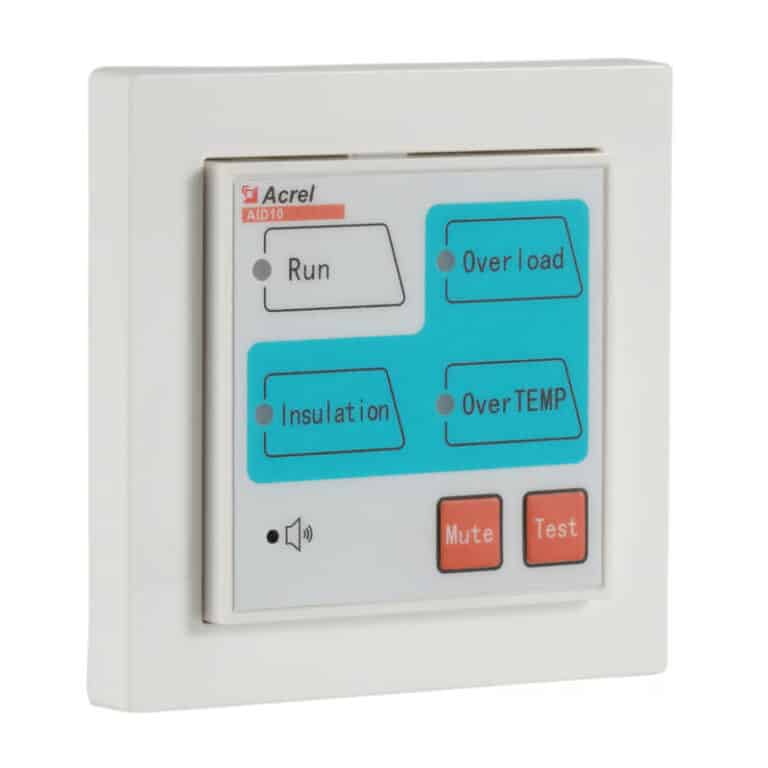

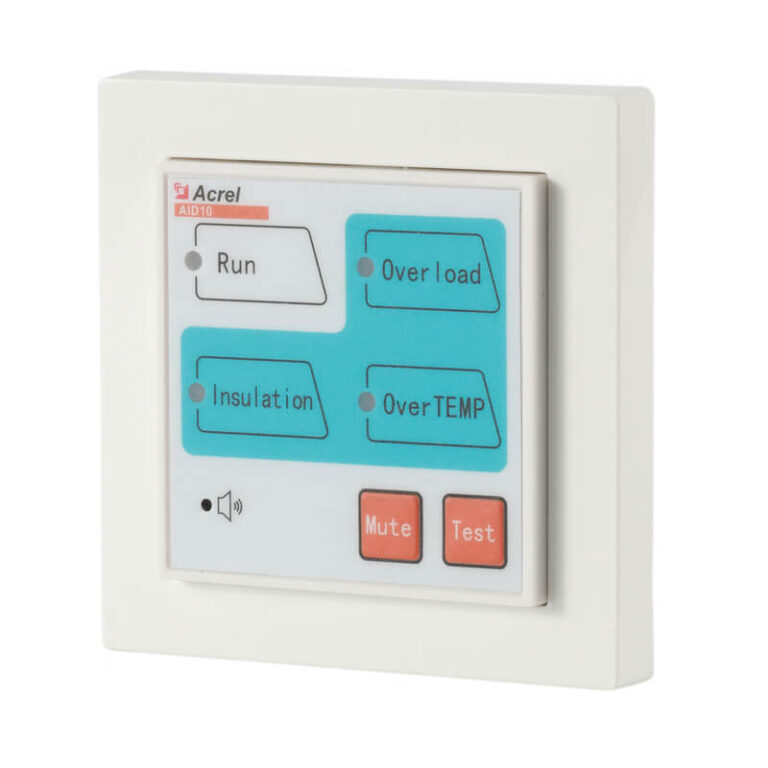

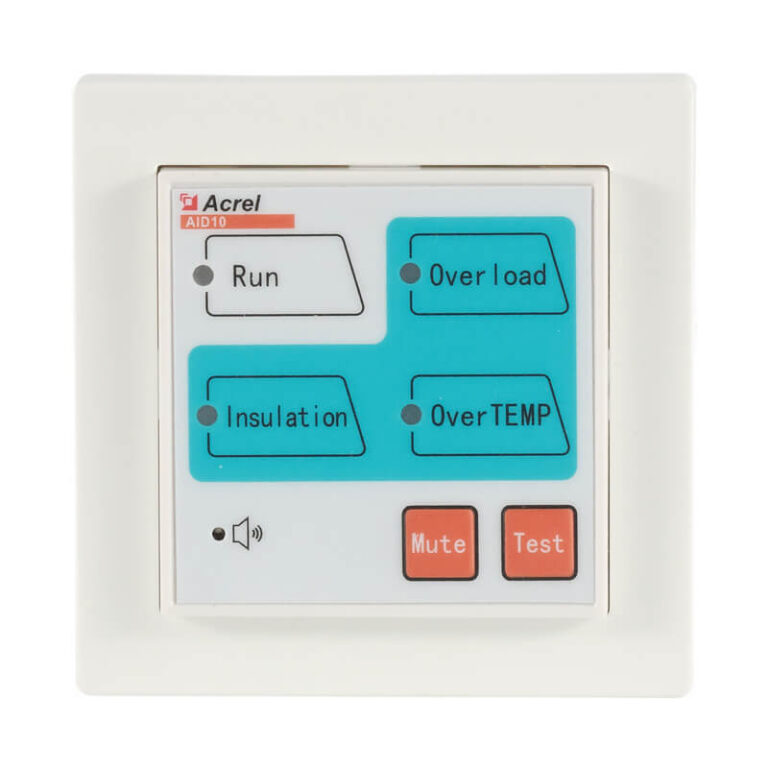

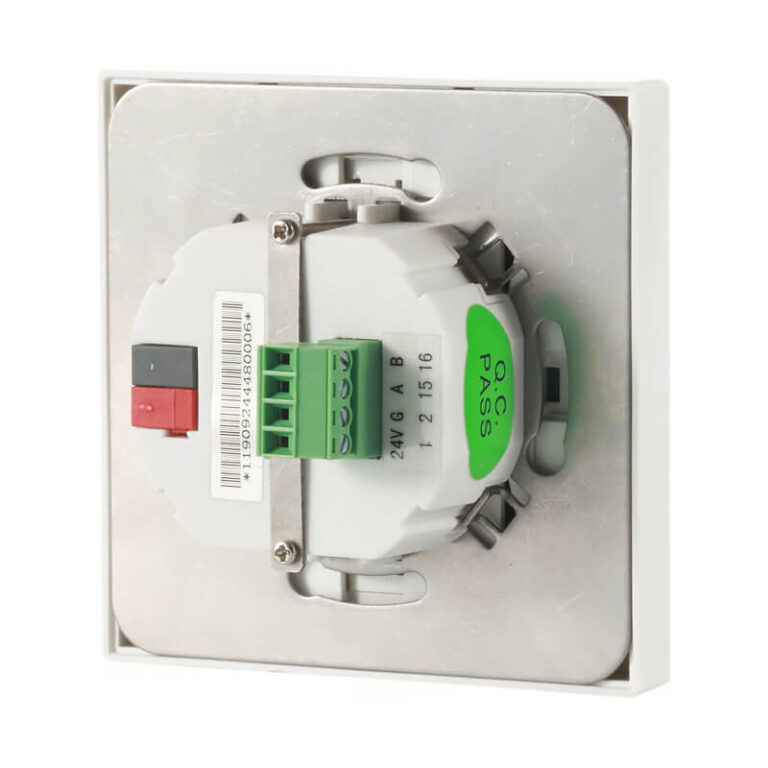

The AID10 is a compact centralized alarm display unit designed for real-time monitoring of AIM-M10 insulation monitoring devices in medical IT systems. It communicates via RS485 (Modbus-RTU) to acquire insulation, load, and temperature data, and provides audible and visual alarms when faults occur. Additionally, it enables remote parameter configuration of the connected AIM-M10, allowing convenient adjustment without direct access to the monitor. With its 86×86 mm flush-mount design, the AID10 integrates seamlessly into information panels in operating rooms, ICUs, and other critical care areas.
Highlight
Real-time Monitoring
- Monitors AIM-M10 via RS485
- Continuous data polling
Audible & Visual Alarm
- Insulation, overload
- Overtemp, device failure
Remote Configuration
- Set parameters remotely
- No on-site access needed
Compact 86-type Mounting
- Flush / panel mount
- 86×86 mm opening
Function
| Function | Description |
| Remote Monitoring | Continuously acquires insulation, load, and temperature data from AIM-M10 via RS485. |
| Audible & Visual Alarm | Provides buzzer and LED indication for insulation fault, overload, overtemperature, device failure. |
| Alarm Settings | Supports load current alarm (14/18/22/28/35/45 A) and temperature alarm (0 – +200 ℃) configuration. |
| Parameter Configuration | Remotely sets parameters of the connected AIM-M10 (e.g., alarm thresholds, address). |
| Communication | RS485 interface, Modbus-RTU protocol. |
| Power Supply | DC 24 V, < 0.6 W. |
| Mounting | Flush or panel mounting, 86×86 mm standard opening. |
Specification
| Parameter | Value |
| Model | AID10 |
| Compatible Insulation Monitor | AIM-M10 (single unit) |
| Auxiliary Power | DC 24 V |
| Power Consumption | < 0.6 W |
| Alarm Types | Insulation fault, overload, overtemperature, device failure |
| Alarm Method | Audible (buzzer) + visual (LED) |
| Load Current Alarm Settings | 14 A, 18 A, 22 A, 28 A, 35 A, 45 A (configurable) |
| Temperature Alarm Range | 0 – +200 ℃ (configurable) |
| Communication Interface | RS485, Modbus-RTU protocol |
| Display | None (LED indicators only) |
| Mounting Method | Flush / panel mount |
| Dimensions (H×W×D) | 86 × 86 × 38 mm |
| Panel Cutout | 86 × 86 mm (standard 86-type) |
| Protection Degree | IP40 (front panel) |
Show More
FAQ
One AID10 is designed to monitor a single AIM-M10 insulation monitor. For multiple monitors, consider AID120 or AID150.
No, the AID10 has no digital display. It only provides LED indicators and audible alarms. For numerical display, choose AID120 (digital tube) or AID150 (LCD).
The standard cutout is 86 × 86 mm (same as a standard electrical wall box).
Yes, the AID10 can remotely set parameters (including alarm thresholds) of the connected AIM-M10 via the RS485 bus.
It indicates a communication failure or internal fault of the connected AIM-M10, such as wiring disconnection (LL, FK, TC, CT) or self-diagnosis error.
Summary
The AID10 is a cost-effective centralized alarm unit tailored for single-room medical IT systems. It provides essential audible and visual alerts for insulation, overload, overtemperature, and device faults, while also enabling remote configuration of the AIM-M10 monitor. Its 86-type flush-mount design simplifies installation in operating rooms and ICUs, helping medical staff respond promptly to electrical anomalies and ensuring uninterrupted power supply to critical areas.
