Overview

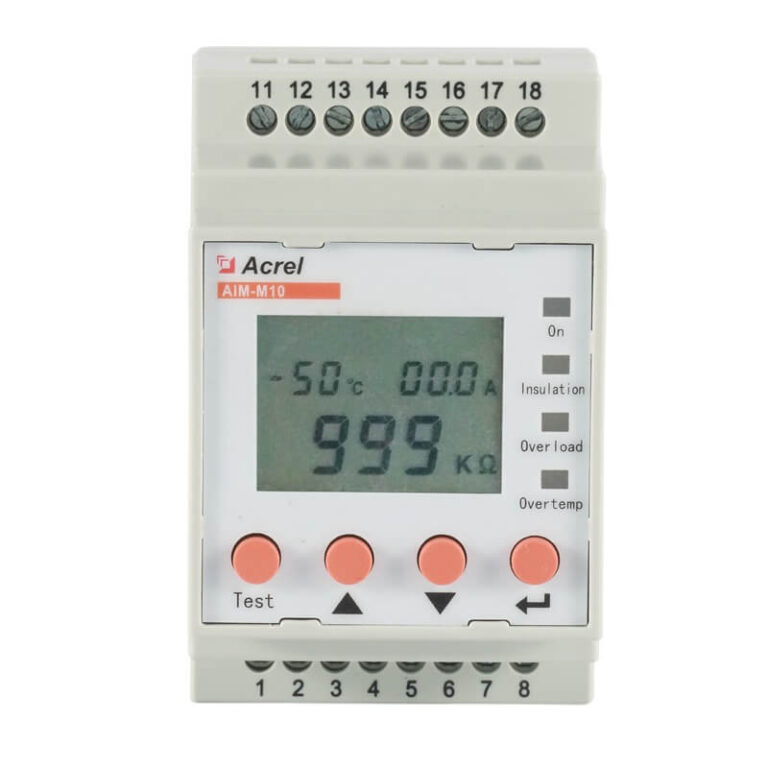

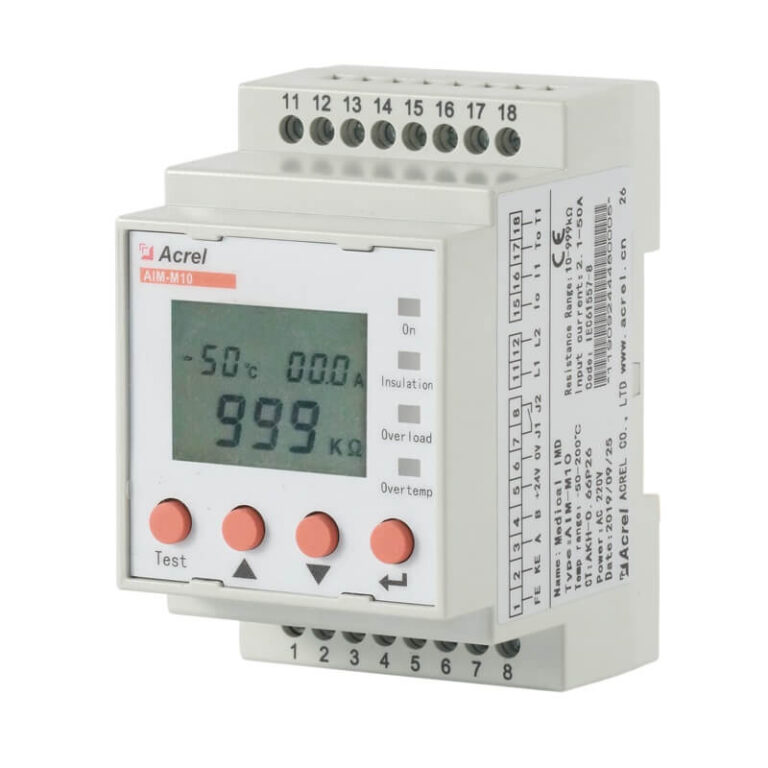

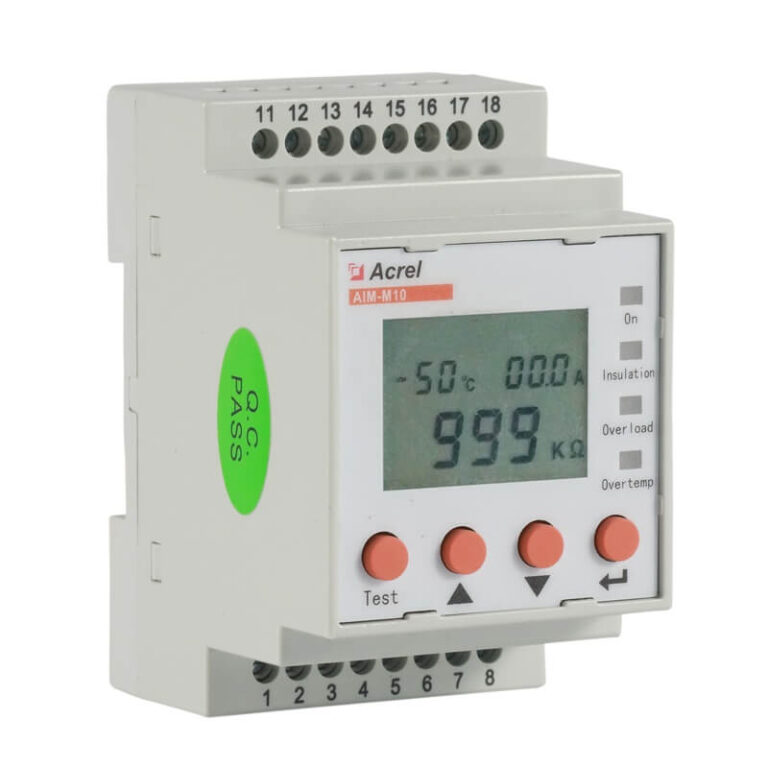

The AIM-M10 is a dedicated insulation monitoring device designed for medical IT systems in operating rooms, ICUs, and other critical care areas. It continuously monitors the insulation resistance, load current, and transformer temperature of isolated power systems, ensuring electrical safety and uninterrupted power supply in medical facilities. With real time fault indication and RS485 Modbus communication, it integrates seamlessly into hospital power distribution networks.
Highlight
Insulation Monitoring
- Range: 10-999kΩ
- Alarm: 10-995kΩ adjustable
- Response: <2s
- Voltage: <12V
Current & Temp Monitoring
- Current: 2.1-50A, alarm adj.
- Temp: PT100, -50-+200℃
- Current accuracy: ≤±5%
- PT100 sensor included
Alarm & Communication
- 1 relay output, 250V/3A
- RS485 Modbus-RTU
- Fault self-diagnosis

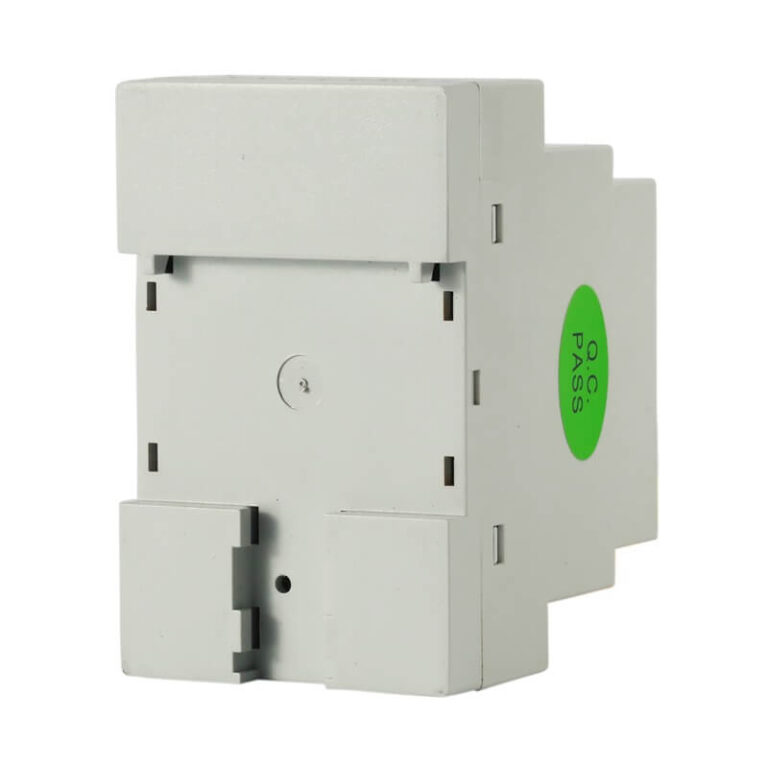

Compact Design
- Size: 85×54×63.6mm
- Easy terminal wiring
- Panel or rail mounting
Function
| Insulation Monitoring | Measures insulation resistance (10-999kΩ) with adjustable alarm threshold (10-995kΩ). Response time <2s, test voltage <12V. |
| Load Current Monitoring | Monitors current from 2.1A to 50A, alarm set 5-50A, accuracy ≤±5% |
| Transformer Temperature Monitoring | Uses PT100 sensor, range -50℃ to +200℃, alarm 0-200℃ adjustable. |
| Alarm Output | One relay output (AC250V/3A, DC30V/3A) for insulation, overcurrent, or overtemperature faults. |
| Communication | RS485 interface with Modbus-RTU protocol for remote monitoring. |
| Fault Self–diagnosis | Detects power failure, FK disconnection, TC disconnection, and insulation faults with clear LCD indication. |
Specification
| Parameter | Value |
| Model | AIM-M10 |
| Auxiliary Power | AC220V±10%, 50/60Hz, <5W |
| Insulation Resistance Range | 10-999kΩ |
| Insulation Alarm Range | 10-995kΩ adjustable |
| Response Time | <2s |
| Measuring Voltage | <12V |
| Measuring Current | <42µA |
| Current Range | 2.1-50A |
| Current Alarm Range | 5-50A adjustable |
| Current Accuracy | ≤±5% |
| Temperature Sensor | PT100 |
| Temperature Range | -50-+200℃ |
| Temperature Alarm Range | 0-+200℃ adjustable |
| Alarm Output | 1 relay, AC250V/3A, DC30V/3A |
| Communication | RS485, Modbus-RTU |
| Operating Temperature | -10-+55℃ |
| Storage Temperature | -20-+70℃ |
| Relative Humidity | 5%-95% non-condensing |
| Altitude | ≤2500m |
| Dimensions (L×W×H) | 85×54×63.6mm |
Show More
FAQ
After power‑up, adjust the alarm according to the isolation transformer capacity:
10kVA → 45A
8kVA → 35A
6.3kVA → 28A
3.15kVA → 14A
Set via the device menu or through Modbus communication.
“FK” indicates that the FE/KE terminals are not properly connected to the ground busbar. Please check the lower terminal wiring.
Yes, it supports Modbus‑RTU over RS485, allowing easy integration with SCADA, BMS, or other central monitoring systems.
Summary
The AIM-M10 medical insulation monitoring device provides reliable, real-time supervision of insulation resistance, load current, and transformer temperature in medical IT systems. Its compact design, clear fault indication, and Modbus communication make it an ideal choice for operating rooms and ICUs. By detecting ground faults early and allowing preventive action, it ensures patient and staff safety while maintaining power continuity. Whether for new hospital construction or upgrading existing facilities, the AIM-M10 delivers essential protection for critical medical power systems.
